Diagnostics UEFI does'nt install in HP_TOOL partition

HP Recommended
HP Pavilion Desktop - 550-105nf
Microsoft Windows 10 (64-bit)

Hi,

Despite the presence of an HP_TOOLS partition on my PC's main hard drive, the UEFI diagnostic utility does not install on this partition, and instead install itself in a "C:\Windows\HP" folder.




Windows HP Folder.png



Apparently the installation utility does not detect the HP_TOOLS partition, or it considers it unusable ("installer.log"):



Installer 4.7.2.0
Installer parameter: -hdd
Installer parameter: -uefisupport
Installer parameter: -esp
Installer parameter: -bestsize
BIOS Characteristics: 0xaf00013c099a80
Install File List:3
WMI System Configuration ID value not found, looking for PCID value
WMI SCID, PCID value not found
Get PCID String Failed, use default partition size.
Using HP_TOOLS Size 0x80000000
Searching for HP_TOOLS partitions.
DetectGPTPartitions: Partition 1 is Type Installable File System
DetectGPTPartitions: Partition 1 is Type Installable File System
DetectGPTPartitions: Partition 1 is Type GPT: System
DetectGPTPartitions: Found GPT Partition.
DetectGPTPartitions: Found GPT System Partition at Index 0
DetectGPTPartitions: Partition 2 is Type GPT: Basic Data
DetectGPTPartitions: Found GPT Partition.
DetectGPTPartitions: Partition 3 is Type GPT: Basic Data
DetectGPTPartitions: Found GPT Partition.
DetectGPTPartitions: Partition 4 is Type GPT: Unknown
DetectGPTPartitions: Found GPT Partition.
DetectGPTPartitions: Partition 5 is Type GPT: Basic Data
DetectGPTPartitions: Found GPT Partition.
DetectGPTPartitions: Partition 1 is Type GPT: Basic Data
DetectGPTPartitions: Found GPT Partition.
DetectGPTPartitions: Partition 2 is Type GPT: Basic Data
DetectGPTPartitions: Found GPT Partition.
DetectGPTPartitions: Partition 3 is Type GPT: Basic Data
DetectGPTPartitions: Found GPT Partition.
DetectGPTPartitions: Partition 4 is Type GPT: Basic Data
DetectGPTPartitions: Found GPT Partition.
DetectGPTPartitions: Partition 5 is Type GPT: Basic Data
DetectGPTPartitions: Found GPT Partition.
DetectGPTPartitions: Partition 1 is Type Installable File System
ESP Partition Available.
ExecuteInstall()



InstallFiles()
PROCESSOR_ARCHITECTURE: AMD64

SystemType: x64
All Files Copied Successfully.
Installation Completed.
Installer returned error code 0

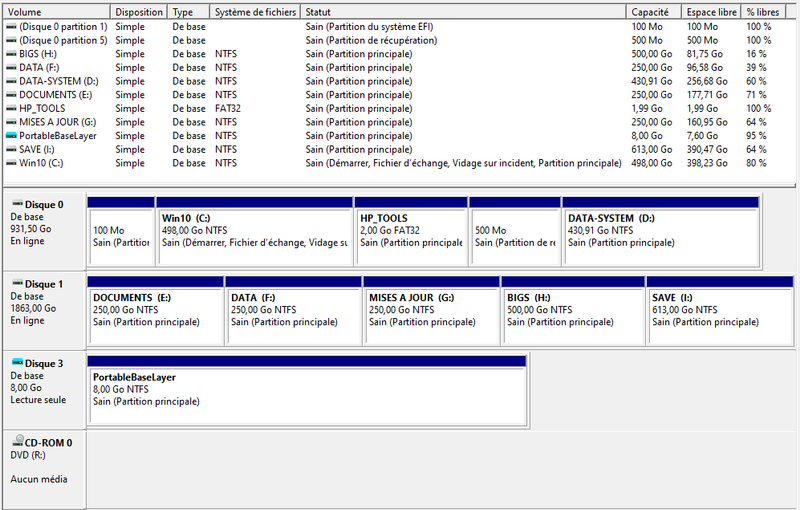

The HP_TOOLS partition is the third on the first disk.



How can I force the installation of the UEFI diagnostic utility in the HP_TOOLS partition, and delete it from the "C:\Windows\HP" folder?



Thank you.

Denis
3 REPLIES 3
Highlighted
Level 15
Level 15
1,222 1,203 111 438
Message 2 of 4
Flag Post
HP Recommended

Hello
This partition is not original?
The installation system is automatic, it is probably not possible to modify this, sorry not sought!
But there is no reason to modify the system, if you want you can very well use the USB option as shown here:

https://www8.hp.com/us/en/campaigns/hpsupportassistant/pc-diags.html



HP PCs - Testing for Hardware Failures | HP® Customer Support

signature:
Expert volontaire :Forum Fr 17-10-2009 :
Sorry i'm using translate.google:
give the model and P/n product number of the device :
example: HP Phoenix h9-1228ef HPE product no.P / N: C0B64EA :
Please remember to mark the answers this can help other users:
please click on the accept as solution button if message provided an answer / solution to the problem

Reply
0 Kudos
Highlighted
Author
New member
2 1 0 0
Message 3 of 4
Flag Post
HP Recommended

Hi,



Thank you Prométhée for your response.



The disc is not the original one. I replaced it with an SSHD model (SSD / HDD hybrid) and I rebuilt the partitioning.

I also restored a Windows 10 PRO system from another PC (out of service) to replace the original Windows 10 HOME system, (buying a new complete and modern PC was cheaper than buying a motherboard, cpu, memory and video card).

The operation was quite complex because the old PC worked under conventional bios, with MBR partitioning, while the HP PC works with UEFI bios and requires GPT partitioning.



However, my question is not "how to install the UEFI diagnostic tool", but why the UEFI diagnostic tool does not install on the partition HP_TOOLS which is reserved for it ?

What are the conditions for the HP_TOOLS partition to be recognized and used when installing the UEFI diagnostic tool?

Does the HP_TOOLS partition require special tagging? A particular type of partition? A specific marker file?



I see in the installation execution log that the disks and partitions are analyzed.
My drive is identified as "GPT".
The HP_TOOLS partition on my disk is identified as "Basic data".



Installer 4.7.2.0
Installer parameter: -hdd
Installer parameter: -uefisupport
Installer parameter: -esp
Installer parameter: -bestsize
BIOS Characteristics: 0xaf00013c099a80
Install File List:3
WMI System Configuration ID value not found, looking for PCID value
WMI SCID, PCID value not found
Get PCID String Failed, use default partition size.
Using HP_TOOLS Size 0x80000000
Searching for HP_TOOLS partitions.
DetectGPTPartitions: Partition 1 is Type Installable File System
DetectGPTPartitions: Partition 1 is Type Installable File System
DetectGPTPartitions: Partition 1 is Type GPT: System
DetectGPTPartitions: Found GPT Partition.
DetectGPTPartitions: Found GPT System Partition at Index 0
DetectGPTPartitions: Partition 2 is Type GPT: Basic Data
DetectGPTPartitions: Found GPT Partition.
DetectGPTPartitions: Partition 3 is Type GPT: Basic Data

...



What do the WMI SCID and PCID information correspond to?



I also see in the log that the size of the partition HP_TOOLS sought is 2 GB (0x80000000). But my HP_TOOLS partition is a little less than 2 GB (2048 mb), only 1.99 GB (2047 mb).



Thank you.

Denis
Reply
0 Kudos
Highlighted
Level 15
Level 15
1,222 1,203 111 438
Message 4 of 4
Flag Post
HP Recommended

so sorry, it may not have been clear ,or we don't understand each other
You are using a partition which probably does not have to be!
Here is a normal configuration, with this installer installed.

Annotation 2020-06-08 174425.png

"However, my question is not "how to install the UEFI diagnostic tool", but why the UEFI diagnostic tool does not install on the partition HP_TOOLS which is reserved for it ?"


as you can see, this partition does not exist, this software is not designed to install in this partition visibly!
So I don't see why try to force this ..





signature:
Expert volontaire :Forum Fr 17-10-2009 :
Sorry i'm using translate.google:
give the model and P/n product number of the device :
example: HP Phoenix h9-1228ef HPE product no.P / N: C0B64EA :
Please remember to mark the answers this can help other users:
please click on the accept as solution button if message provided an answer / solution to the problem

Reply
0 Kudos
