SSD Installation for HP 19-2304

HP Recommended
HP 19-2304
Microsoft Windows 10 (64-bit)

Hello,



I am wanting to upgrade the HDD to an SSD in a HP 19-2304 PC, an All-in-one.



I see that the PC uses a hard drive cage that would have to align with the SATA connectors. If I use an SSD, will those align properly?



Thanks for your time everyone.

2 REPLIES 2
banhien
Level 19
Level 19
94,828 93,485 12,286 26,121
Message 2 of 3
Flag Post
HP Recommended

Hi,



No information about existing HDD but I believe with the following information



Figure : Hard drive
Image of hard drive
  • Size: 500 GB
  • Interface: SATA
  • Rotational Speed: 7200 RPM

Source:  http://support.hp.com/in-en/document/c04604762



Due to the size of the computer, I believe it uses 2.5" HDD and SSD would line-up because nearly all SSD's for mass market now are 2.5" but they are a bit thinner therefore you need a space/frame filler. I know Crucial (in box) supplies the filler.



Note: The following vendor also says it uses 2.5" HDD



     https://www.mrmemory.co.uk/ssd-upgrades/hp/all-in-one/19-2304#!kingston-sata-drive-carrier



Regards.

BH
***
**Click the KUDOS thumb up on the left to say 'Thanks'**
Make it easier for other people to find solutions by marking a Reply 'Accept as Solution' if it solves your problem.




>
Was this reply helpful? Yes No
beatgr
Level 6
354 349 33 66
Message 3 of 3
Flag Post
HP Recommended

HP 19-2304 All-In-One

http://support.hp.com/us-en/product/HP-19-2300-All-in-One-Desktop-PC-series/7477757/model/7531293

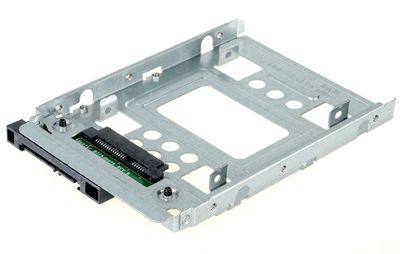

When installing 2.5" SSD or HDD in 3.5" storage locations (drive bays), I always use this HP part: 654540-001

I ordered a number of these in 2014/2015 (significantly cheaper at $4 each), before this part became well-known.  Shop around (Amazon, eBay, Alibaba) for best price and delivery time (China cheaper, but 3 weeks for shipping).



2.5" SSD to 3.5" SATA Hard Disk Drive HDD Adapter.

645540-001

IMG_3839.JPG IMG_3840.JPG







Was this reply helpful? Yes No
