‎11-26-2022 02:37 PM

HP Recommended

Hello, my laptop is no longer properly booting, and is saying there is an issue with the hard drive. I just want to know if there is any way it could be fixed, or if I'll need to get a new one.



Model: HP Laptop 15-db0xxx

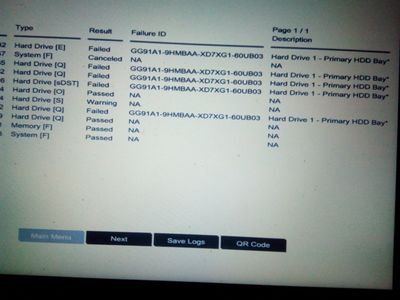

 Error code: GG91A1-9HMBAA-XD7XG1-60UB03




 


  • Any help is appreciated!
Category:
2 REPLIES 2

‎11-26-2022 04:51 PM

HP Recommended

@Crustaceans



Please use the following Guide



           https://support.hp.com/us-en/document/ish_3894112-3198952-16



Regards.

BH
***
**Click the KUDOS thumb up on the left to say 'Thanks'**
Make it easier for other people to find solutions by marking a Reply 'Accept as Solution' if it solves your problem.




Was this reply helpful? Yes No

‎11-26-2022 04:54 PM - edited ‎11-26-2022 04:54 PM

HP Recommended

Hi, @Crustaceans



You will need to install a new hard drive and reinstall the operating system.



below is the link to the service manual where you can find the hard drive removal and replacement procedure.



Maintenance and Service Guide HP 15 Laptop PC



You may want to consider either one of these options to replace the drive.



1. Replace the existing 2.5" mechanical hard drive with a better performing 2.5" solid state drive (SSD).



2. Since the notebook has an AMD Ryzen processor, it has a M.2 slot that supports an even faster NVMe SSD.



After you replace the drive, you can use the HP cloud recovery tool with another PC running W7 64 bit or newer and a 32 GB USB flash drive to create a bootable USB recovery drive that will reinstall W10, the drivers and the software that originally came with your notebook.



Here is an info link for how to use the utility.



HP Consumer PCs - Using the HP Cloud Recovery Tool in Windows 11 and 10 | HP® Customer Support



Since you have to install the recovery tool on another PC, after you launch it, you will need to enter your notebook's product number in the tool's search window to proceed.



Your notebook's product number is: 4RD90EA#ABU



Here are some service videos which should also help you with the disassembly procedures.



Remove bottom cover



https://www.youtube.com/watch?v=tJXddvEkOr0



Remove battery:



https://www.youtube.com/watch?v=dM_i0Mhxszc



Remove & Replace 2.5" drive:



https://www.youtube.com/watch?v=ZvdNswHTjmY



Remove & Replace M.2 solid state drive.



https://www.youtube.com/watch?v=YJoFRyicDSM





Replace the Solid State Drive | HP Notebook 15, HP 250 and 255 G7 Notebook PC | HP
Replace the Solid State Drive | HP Notebook 15, HP 250 and 255 G7 Notebook PC | HP
youtube.com/watch?v=ZvdNswHTjmY
Learn how to remove and replace the solid state drive for HP Notebook - 15-da0000, HP Notebook - 15-db0000, HP 250 and 255 G7 Notebook PC For other helpful videos go to http://hp.com/supportvideos or http://youtube.com/hpsupport. More support options for your HP device are available at ...
Replace the Optical Drive | HP Notebook 15, HP 250 and 255 G7 Notebook PC | HP
Replace the Optical Drive | HP Notebook 15, HP 250 and 255 G7 Notebook PC | HP
youtube.com/watch?v=tJXddvEkOr0
Learn how to remove and replace the optical drive for HP Notebook - 15-da0000, HP Notebook - 15-db0000, HP 250 and 255 G7 Notebook PC For other helpful videos go to http://hp.com/supportvideos or http://youtube.com/hpsupport. More support options for your HP device are available at ...
Replace the Primary Storage Drive Assembly | HP Notebook 15, HP 250 and 255 G7 Notebook PC | HP
Replace the Primary Storage Drive Assembly | HP Notebook 15, HP 250 and 255 G7 Notebook PC | HP
youtube.com/watch?v=YJoFRyicDSM
Learn how to remove and replace the primary storage drive assembly for HP Notebook - 15-da0000, HP Notebook - 15-db0000, HP 250 and 255 G7 Notebook PC For other helpful videos go to http://hp.com/supportvideos or http://youtube.com/hpsupport. More support options for your HP device are available ...
Replace the Base Enclosure | HP Notebook 15, HP 250 and 255 G7 Notebook PC | HP
Replace the Base Enclosure | HP Notebook 15, HP 250 and 255 G7 Notebook PC | HP
youtube.com/watch?v=dM_i0Mhxszc
Learn how to remove and replace the base enclosure for HP Notebook - 15-da0000, HP Notebook - 15-db0000, HP 250 and 255 G7 Notebook PC For other helpful videos go to http://hp.com/supportvideos or http://youtube.com/hpsupport. More support options for your HP device are available at ...
1 person found this reply helpful
Was this reply helpful? Yes No
