The HP Community is where owners of HP products, like you, volunteer to help each other find solutions.
HP Recommended

The Polycom Trio supports since UC Software 5.5.2 the Screen Mirroring of the Wireless Display feature for Miracast®-certified Android™ and Windows® devices.


  • Using a Polycom RealPresence GroupSeries or Polycom VisualPro requires a Polycom Pano for Wireless Display support


First of all a license is required to use this feature.


You may not use the feature on one or more devices than you have a valid license for until a license or additional licenses have been purchased. These licenses should be purchased from the same company from which you purchased the devices. Polycom reserves the right to audit your deployment to verify that you have sufficient licenses to match the number of devices being used.


Part Number aka SKU: 5150-84981-001


The feature can be enabled via:

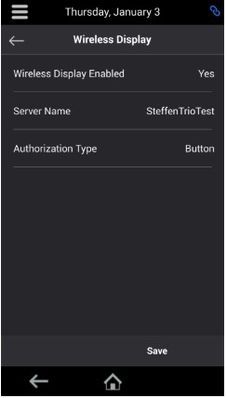

The name being displayed on a compatible device can be set via

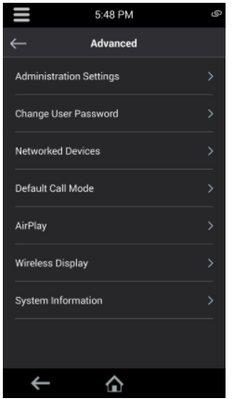

You can also simply press Settings => Advanced => Wireless Display:


Wireless Display from Android™ and Windows® Devices

The Wireless Display feature enables you to display content from your Android or Windows device screen to the Trio monitor.


You cannot show content in point-to-point or conference calls.


Windows or Android devices can discover and connect directly with the Trio and do not have to be connected to the same network as Trio.


Trio currently supports the following Android and Windows devices:


  • Windows 10 devices with Wireless Display support (Tested Windows Surface Pro 3 and 4)
  • Samsung Galaxy smartphones and tablets running Android 4.4 and newer (Samsung uses following names for this feature: Smart View, AllShare Cast, Screen Mirror or Miracast)

To send content from your device, you must first connect your device wirelessly to the Trio.


NOTE: Poly cannot guarantee connectivity with all Miracast compatible devices but connectivity has been validated to work well with Samsung smartphones and tablets using Android 4.4+ as well as the Microsoft Surface® 3 Pro and Surface® 4 Pro using Microsoft Windows 10.


Using Windows 10 (Surface Pro):

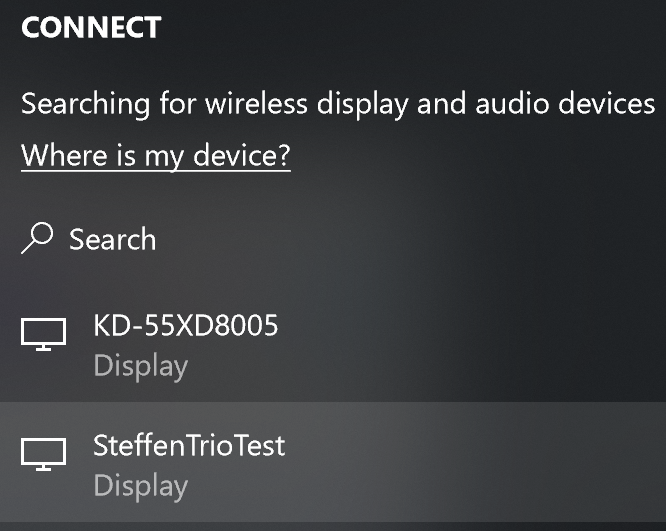

imageSelect Project or ConnectimageIn Project Mode select the typeimageSelect the Miracast DeviceimageConnectingimageConnected => Ability to disconnect

Trio Screens:

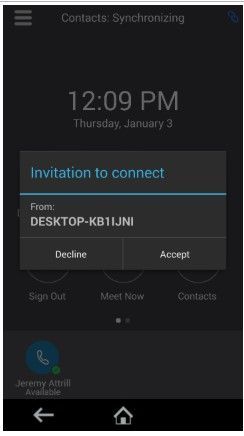

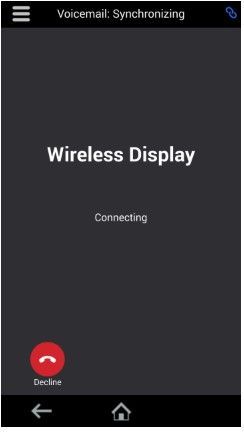

imageWhen Authentication Type is setimageConnecting to TrioimageConnected Mode

Note: Current Trio implementation does not support group owner mode (Example Asus ZenPad 10).

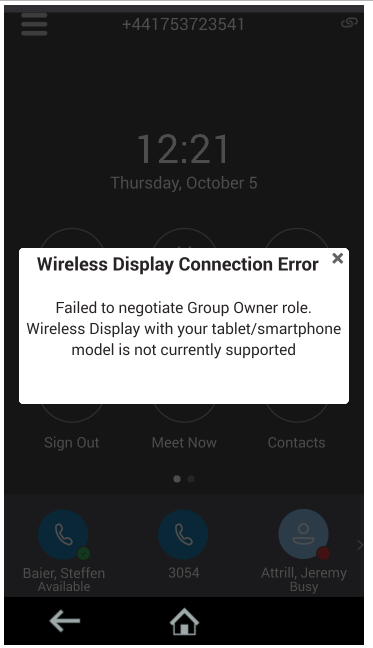

If you are using a device supporting Group Owner this error message will appear:




Note: Wireless Display can't be used on Trio configured for WLAN mode.


WLAN and Wireless Display are mutually exclusive. One of the reasons is that a modular room architecture that is the base of Visual+ to Trio communications does not support WLAN.


The Trio can display content to a maximum resolution and frame rate of 720@60fps or 1080@30fps. If a Trio is configured to auto-negotiate the frame rate of transmitted content some tablets might send 1080p 60fps video which can cause multiple second latencies in mirroring and visual artefacts or both.


Troubleshooting Wireless Display

This section lists solutions to common issues you may have using Wireless Display on Trio.


My Trio does not advertise itself on my smartphone/tablet:


If the Trio does not advertise on your smartphone or tablet device:


  • Ensure Wi-Fi is enabled on your device and set the band to 2.4GHz or Auto.

The Auto setting is preferred to allow the connecting device better access to a free wireless channel.


  • Ensure the correct country of operation is set and that both bands are selected on the Trio by configuring the following:



  • Note that the WLAN operating mode on the Trio is mutually exclusive of the Wireless Display feature. You can enable Wireless Display only if wired Ethernet is used for calling and conferencing. Ensure wired Ethernet is used for calling and conferencing by configuring the following:


Download the attached => here <= and unzip and import via the Web Interface.


My Trio does advertise itself on my smartphone/tablet but unable to Miracast:


Disconnect from the WiFi Access Point aka forget the connection and try again. Miracast uses WiFi direct and an existing connection to a WiFi AP can affect this.


Windows Firewall:


It's important to check if the Firewall is blocking the traffic.


Please allow the following services “%systemroot%\system32\WUDFHost.exe and %systemroot%\system32\CastSrv.exe” to communicate (inbound/outbound) through the Windows firewall.




Suggested Logging:


<logging log.level.change.wdisp="0"
log.level.change.apps="0" log.level.change.lc="0"
log.render.level="0" log.render.file.size="10240" />


Download the attached => here <= and unzip and import via the Web Interface.


In addition please also supply the plcmsyslog.tar.gz file to Polycom support in case you experience any issues.




Additional Test:


Open a Command Window and type netsh wlan show driver

Interface name: Wireless Network Connection

    Driver                    : Intel(R) Dual Band Wireless-AC 7260
    Vendor                    : Intel Corporation
    Provider                  : Intel
    Date                      : 22/02/2015
    Version                   :
    INF file                  : ????
    Type                      : Native Wi-Fi Driver
    Radio types supported     : 802.11b 802.11g 802.11n 802.11a 802.11ac
    FIPS 140-2 mode supported : Yes
    802.11w Management Frame Protection supported : Yes
    Hosted network supported  : Yes
    Authentication and cipher supported in infrastructure mode:
                                Open            None
                                Open            WEP-40bit
                                Open            WEP-104bit
                                Open            WEP
                                WPA-Enterprise  TKIP
                                WPA-Enterprise  CCMP
                                WPA-Personal    TKIP
                                WPA-Personal    CCMP
                                WPA2-Enterprise TKIP
                                WPA2-Enterprise CCMP
                                WPA2-Personal   TKIP
                                WPA2-Personal   CCMP
                                Open            Vendor defined
                                Vendor defined  Vendor defined
    Authentication and cipher supported in ad-hoc mode:
                                Open            None
                                Open            WEP-40bit
                                Open            WEP-104bit
                                Open            WEP
                                WPA2-Personal   CCMP
    IHV service present       : Yes
    IHV adapter OUI           : [00 80 86], type: [00]
    IHV extensibility DLL path: C:\WINDOWS\System32\IWMSSvc.dll
    IHV UI extensibility ClSID: {1bf6cb2d-3344-5544-b8ff-a75834fbd0e3}
    IHV diagnostics CLSID     : {00000000-0000-0000-0000-000000000000}
    Wireless Display Supported: Yes (Graphics Driver: Yes, Wi-Fi Driver: Yes)
