‎02-16-2017 06:36 AM

HP Recommended
Product: HP Pavilion 550-174nd
Operating System: Microsoft Windows 10 (64-bit)

I upgraded my PC with a more powerful PSU (Corsair CX500M) and a new graphics card (MSI Geforce GTX 1060 6G OC).

Now having an issue connecting the DVD-drive to the PSU and main board.

The connector of the DVD-drive looks like the connector that comes with a DVD-drive you find in notebooks.

The PSU has no connection for this kind of DVD-drive.



Can someone please advice me on which adapter/part exactly I should order to connect the DVD-drive (URL maybe?) ?



Many thanks in advance!

2 people had the same question
1 ACCEPTED SOLUTION

Accepted Solutions

‎02-16-2017 12:03 PM

HP Recommended

@TimePieces,

Look at the cable into the DVD drive . Is it this ?

This system is feedback driven thru Solution and Kudo flags. It's the only means of knowing if you have been served. Please click Accept as Solution, if your problem is solved. To say THANK YOU, press the "thumbs up symbol" to render a KUDO. You can render both Solution and KUDO..

HP Envy 8 5010 Tablet
(2) HP DV7t i7 3160QM 2.3Ghz 8GB
Printer -- HP OfficeJet Pro 8620 Legal
Custom Asus Z97D, I7-4790k, 16GB RAM, WIN10 Pro 64bit, ZOTAC GTX1080 AMP Extreme 3 fan 8GB RAM, 500GB SSD, Asus PB287 4k monitor, Rosewill Blackhawk case and 750W OCZ PSU.

View solution in original post

Was this reply helpful? Yes No
15 REPLIES 15

‎02-16-2017 08:12 AM

HP Recommended

HERE IS THE MANUAL for that device.  Page 13 starts the DVD/CD drive. Figure 8 indicates what appears to be normal connections for SATA and power.  Is the one in question different from that picture?


I'm not an HP employee.
Did this message answer your question? Please indicate below as an Accepted Solution!
Did you find this message useful? Click on the "Was this reply helpful" Yes button.
Was this reply helpful? Yes No

‎02-16-2017 12:03 PM

HP Recommended

@TimePieces,

Look at the cable into the DVD drive . Is it this ?

This system is feedback driven thru Solution and Kudo flags. It's the only means of knowing if you have been served. Please click Accept as Solution, if your problem is solved. To say THANK YOU, press the "thumbs up symbol" to render a KUDO. You can render both Solution and KUDO..

HP Envy 8 5010 Tablet
(2) HP DV7t i7 3160QM 2.3Ghz 8GB
Printer -- HP OfficeJet Pro 8620 Legal
Custom Asus Z97D, I7-4790k, 16GB RAM, WIN10 Pro 64bit, ZOTAC GTX1080 AMP Extreme 3 fan 8GB RAM, 500GB SSD, Asus PB287 4k monitor, Rosewill Blackhawk case and 750W OCZ PSU.
Was this reply helpful? Yes No

‎02-17-2017 12:31 AM

HP Recommended
I will post a picture of the DVD-drive connector this evening when home from work. And a picture of the cable connector that went in originally.
Was this reply helpful? Yes No

‎02-18-2017 06:52 AM

HP Recommended

Hi TheOldMan and wb2001. Guess I indeed need something like this:




where the big connector goes to the PSU and the small one to the DVD Drive.

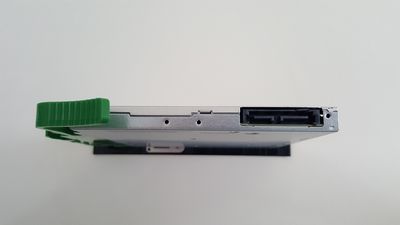

This is what the back of the DVD-drive looks like:

20170218_104945-back DDVD.jpg



The connection on mainboard side has 2 exits, 1 goes to the right (larger) connection of the DVD-drive. The other one is attached to the PC chassis (grounding):

20170218_110100 inside PC.jpg





This is the original HP PSU, this smaller connector was connected to the left smaller connection of the DVD drive:



20170218_105903 original power PSU.jpg







So I guess I only need something to get the DVD-powered, because data connection should be ok because it is already connected to the mainboard.



Am I right?









Was this reply helpful? Yes No

‎02-18-2017 07:54 AM

HP Recommended

I'm going to by this and hope it works.



Sata power to slimline sata power adapter.jpg

Was this reply helpful? Yes No

‎02-18-2017 07:56 AM

HP Recommended

If you are using a conventional desktop power supply and the SATA cable to the motherboard is a regular SATA connector on the motherboard, it looks as though this would solve the problem

https://www.amazon.com/StarTech-6-Inch-Slimline-Adapter-SLSATAADAP6/dp/B009JXKQ9O/ref=pd_sim_147_1?_...


I'm not an HP employee.
Did this message answer your question? Please indicate below as an Accepted Solution!
Did you find this message useful? Click on the "Was this reply helpful" Yes button.
Was this reply helpful? Yes No

‎02-18-2017 08:10 AM

HP Recommended

Hi TheOldMan, I'll stick with the adapter I posted earlier. I only need the connection from the slim sata connection on the DVD-drive to the standard SATA connection that comes from the PSU.



Many thanks for your help and support!

Was this reply helpful? Yes No

‎02-18-2017 12:25 PM

HP Recommended

@TimePieces,

You are correct, that is all you actually need.  Can you please send the link to that adapter.  It looks cleaner in style than what I did link, but the functionality is the same.

This system is feedback driven thru Solution and Kudo flags. It's the only means of knowing if you have been served. Please click Accept as Solution, if your problem is solved. To say THANK YOU, press the "thumbs up symbol" to render a KUDO. You can render both Solution and KUDO..

HP Envy 8 5010 Tablet
(2) HP DV7t i7 3160QM 2.3Ghz 8GB
Printer -- HP OfficeJet Pro 8620 Legal
Custom Asus Z97D, I7-4790k, 16GB RAM, WIN10 Pro 64bit, ZOTAC GTX1080 AMP Extreme 3 fan 8GB RAM, 500GB SSD, Asus PB287 4k monitor, Rosewill Blackhawk case and 750W OCZ PSU.
Was this reply helpful? Yes No

‎02-18-2017 02:24 PM

HP Recommended

Hi wb2001, I found it here:

http://www.digistor.com/products/adapters-and-cables/Slimline-SATA-to-Standard-SATA-Adapter-DIG-3163...

Was this reply helpful? Yes No
