extra SSD

[Peter2016]

I hope some can help me with the following.

Is it possible to add a second SSD to a HP ZBook Studio G3, and if yes which type of SSD?

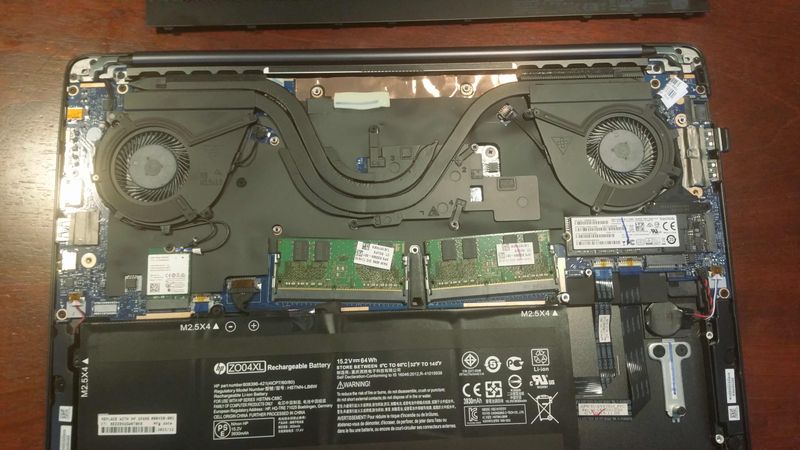

I noticed, when replacing/upgrading so-dimm memory, that there is a relatively large

empty space below the existing SSD (see picture, right side under)

Many thanks in advance

Peter

[banhien · Accepted solution]

Hi,

It actually has 2 (two) M.2 slots and you can add a second SSD any time as mentioned on the following specs:

     http://www8.hp.com/h20195/v2/getpdf.aspx/c04832209.pdf?ver=3

Please use the following manual which shows you how to add the second SSD

     http://h10032.www1.hp.com/ctg/Manual/c04925075.pdf

Regards.

[Peter2016]

thanks for the very fast and helpful answer!

best, peter

[Robaire]

My question is how to install an SATA 3 Samsung 850 ssd in the HP Zbook studio 3g. The manual shows how to remove one that has a mounting bracket, but there seems to be no available SATA 3 bracket in parts for the Studio. I opened Studio G3 and did not find a SATA 3 connector. I'm not sure whether a regular 2.5 inch bracket can be used and anchored to the space in the Studio G3.  In addition, how do you get a SATA 3 connector or  where does one find a SATA 3 connector inside the Studio G3 space? There's plenty of space for a 2.5 inch SSD.

Thanks,

Bob

[nkaufman11]

I think there is some confusion on the number of storage devices.

Service Guide indicates 1 M.2 and 1 2.5" HDD, see page 31 and 32 of the guide

Where can one install the second M.2? In the same slot as the 2.5" HDD?

Very confusing..

[Syocs]

Hy!

The Samsung SSD 960 EVO NVMe M.2 1TB is compatibile with HP ZBook Studio G3 as a second storage option? Anyone has tested this model with ZBook Studio G3?

Thanks,

Andras
