HP Z240 Tower Workstation

Hello közösség,

Segíts kérlek!

Magyarországon vásároltam egy HP Z1 G9 munkaállomást. (2024. március 01.)
A gépet szerettem volna bővíteni 2 db 3,5"-os HDD-vel és 1 db optikai meghajtóval.
Azt tapasztaltam, hogy a kívánt eszközöket nem lehet mechanikusan a helyükre rögzíteni!

A problémámról levelet írtam a HP magyarországi képviseletének: crt.hungary@hp.com (2024.10.14)
Telefonos érdeklődésemre azt mondták, hogy nem tudnak segíteni, vegyem fel a kapcsolatot a HP szervizzel.

Ezt követően levelet írtam az ugyfelszolgalat@delta.hu (DELTA SYSTEMS KFT.) szolgáltatásnak.
A szerviztől a következő választ kaptam:
"A kért termékhez nincs gyártói cikkszám, így sem kereskedelmi forgalomban, sem szervizen keresztül nem rendelhető. Azt
javaslom, hogy vigye vissza oda, ahol vásárolta, mert több mint valószínű, hogy nem a megfelelő készüléket kapta."
Ezek után írtam a kereskedő cégnek: info@usanotebook.hu> (USANotebook)
Hasonló eredményre jutottak, mint a szerviz!

Kérdésem:
Hova fordulhatok a probléma megoldásához?
Vettem egy HDD-vel és optikai meghajtóval nem bővíthető munkaállomást?
Vásárláskor senki nem tájékoztatott, hogy a kábelek benne vannak a gépben (Power és SATA),
hanem habbal, ragasztóval, és általam tervezett kerettel kell rögzíteni!

Kérem segítsen a megoldásban.

Köszönöm: jucyka

1 ACCEPTED SOLUTION

Accepted Solutions
HP Recommended

Thanks for the help!
It was very useful!
I ordered the two items! (eBay, AliExpress)
Thanks again!
Regards:
Jucyka

View solution in original post

3 REPLIES 3
HP Recommended

Jucyka,



Welcome from us, those who do not speak Hungarian. With thanks to Google Translate here is what you wrote:



Hello community, Please help!

I bought an HP Z1 G9 workstation in Hungary (March 01, 2024). I wanted to expand the machine with two 3.5" HDDs and one optical drive. I experienc now that the desired devices could not be mechanically fixed in place! I wrote a letter about my problem to the HP Hungarian representative: crt.hungary@hp.com (2024.10.14).


When I then inquired by phone, they said that they could not help, that I should contact HP service. After that I wrote a letter to ugyfelszolgalat@delta.hu (DELTA SYSTEMS KFT) service. I received the following response from the service:  "There is no manufacturer's part number for the requested product, so it cannot be ordered either commercially or through service. I suggest you take it back to where you bought it because more than likely you didn't get the right device." After that, I wrote to the sales company: info@usanotebook.hu> (USANotebook). They came to a similar result as the service!



My question: Where can I turn to in order to solve this problem?  Did I buy a workstation that cannot be expanded with an HDD and optical drive? When I bought it, no one informed me that the cables were included inside the machine (Power and SATA), but that the parts themselves had to be affixed with foam, glue, or a frame designed by me!



Please help me with the solution.

Thanks, Jucyka









Well, that is poor service indeed, but you may have created the situation. Attached below is an English version of the HP QuickSpecs for this computer, from 9/24, for reference. Perhaps you can find a Hungarian version? I assume it is a Tower computer... sometimes there are multiple form factors.

A good way to start is to look at YouTube. Even if you can't understand the language the videos can be very valuable. Try:



https://youtu.be/Dng1WNAh2S4 This is from HP and at 14 seconds in it shows the topics. Optical drive starts at 50 seconds in. Hard drive cage info starts at 3:33 in.

Another is  https://youtu.be/XX26pY6FXME



Your mistake may have been to order the computer without the optical and two HDDs installed to save some money. There can be specially made HP mounting parts for both the 3.5" hard drives and the optical drive that can be very hard to find when the computer is newer, like yours. Later odd parts become easier to find when the retired computers get parted out. Your HDD mounting cage does not appear to have the narrow horizontal cutouts that I'm familiar with. Below is a picture of the type of 3.5" HDD metal/rubber sliders HP has used in the past to fit in narrow cutouts.... those for a HDD use an imperial #6 screw. 2.5" HDDs and SSDs use M3 metric screws instead (with black rubber cushions instead of blue).

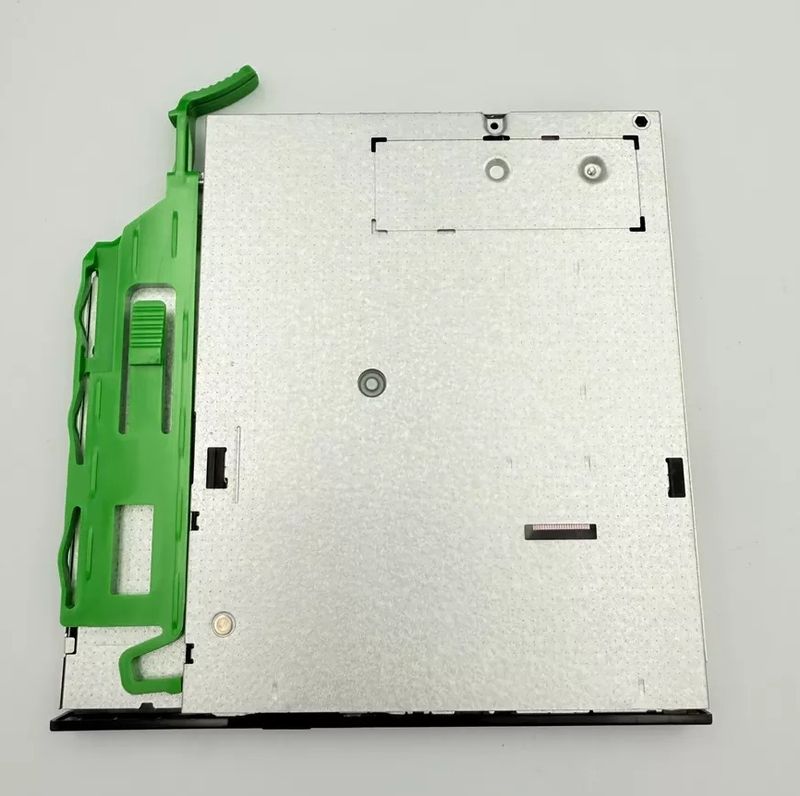

I think you may also need the green HP plastic part shown in the two added pictures that clips into the optical bay slot inside... look at the HP video.

Bottom viewBottom viewTop viewTop view



Good luck on your project...



HP sliders for 3.5" HDDsHP sliders for 3.5" HDDs













Watch an expert remove and replace various product parts when servicing or upgrading HP Z1 G9 Entry Tower PC. Follow the steps in this video to properly remove the specific parts and then safely install the replacement parts for sustained or improved performance. You can directly skip to the ...
Hi friendS! #upgrade #disassembly #replace . Tools: 25 in 1 Screwdrivers Use my code SMDSPAIN and get 5 percent off https://hototools.com/discount/SMDSPAIN Please SUBSCRIBE & Click the BELL NOTIFICATION button: https://www.youtube.com/c/SMDSpain Thanks for all your Support, LIKE the video, Sharing
HP Recommended

Thanks for the help!
It was very useful!
I ordered the two items! (eBay, AliExpress)
Thanks again!
Regards:
Jucyka

HP Recommended

Jucyka,



My Korean is just as bad as my Hungarian, but this video gives you excellent added perspective on use of your metal drive cage even if you don't understand Korean too. It is for a different HP computer but the ideas are the same:



https://youtu.be/6afYR5Qv-yk





2022년 신제품! HP 엘리트데스크 800 G9 TWR 타워의 내부 구성 모두 궁금하셨죠? 지금 신성씨앤에스가 내부 구성부터 하드 드라이브, 그래픽 카드는 어떻게 장착하는지 처음부터 끝까지 보여드리도록 하겠습니다😊 기업용 PC로 인기가 많은 HP 엘리트데스크 지금 확인해 보세요! ✅ HP 800 G9 TWR가 궁금하다면 ...
