‎03-30-2023 04:06 PM

HP Recommended
Product: HP Z8 G4 RCTO Base Model Workstation
Operating System: Microsoft Windows 11

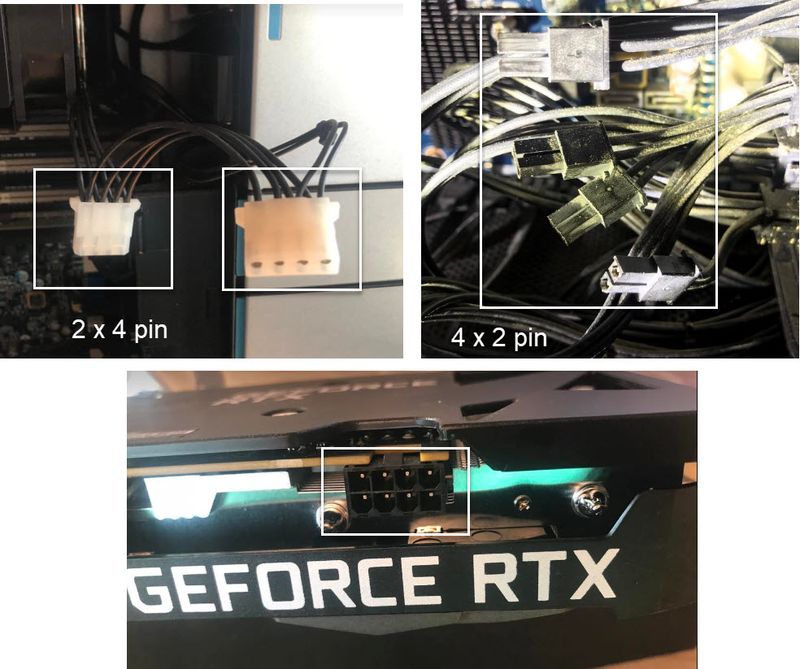

I am trying to install a GEFORCE RTX 3060 - 12 GB graphics card in a Z8 G4 Workstation. The card requires an 8 pin power cable. The workstation only has 2 x 4 pin power cables and 4 x 2 pin power cables (none will reach the expansion slot area) PLEASE SEE ATTACHED PHOTO.  Is there a workaround to get an 8 pin power cable that will power the card, which has 170 Watt consumptionHP Z8 G4 2 x 4 pin power cable - GEFORCE RTX 3060 8 Pin Connector(2).jpg

4 REPLIES 4

‎03-30-2023 04:47 PM

HP Recommended

Hi:



Do you think something like this would work or is the length too short?



Amazon.com: Cable Matters 2-Pack 8-Pin PCIe to Molex (2X) Power Cable 4 Inches : Electronics

Was this reply helpful? Yes No

‎03-30-2023 05:01 PM

HP Recommended

Looks like  this 4 inch cable will just about reach.  I wasn't sure what the connectors were called but by using the info in your suggestion I was able to find a 7" cable which will reach for sure.  The card requires 170 Watts, do you know if the 2 x 4 pin will provide that? Thanks4 pin to 8 pin - 7 inches.jpg

1 person found this reply helpful
Was this reply helpful? Yes No

‎03-30-2023 06:52 PM

HP Recommended

You're very welcome.



The set you found indicates a 180W capacity.



So, if the power requirements are 180W from both the PCie x16 slot + the two Molex connectors to 8 Pin power connector, you should be fine.

Was this reply helpful? Yes No

‎03-31-2023 05:42 AM

HP Recommended

hi

"The workstation only has 2 x 4 pin power cables "

and it won't fit?
I had a model with 4+2, they separate
you can with this connect either a 6 pin or an 8 pin once combined
If you with 4*2, that should make you 8?

--------------------------------------------- Signature ---------------------------------------------
was this reply helpful , or just say thank you ? Click on the yes button

Please remember to mark the answers this can help other users
please click on the accept as solution button if message provided an answer to the problem




Desktop-Knowledge-Base
Windows 11 22h2 inside , user

------------------------------------------------------------------------------------------------------------
1 person found this reply helpful
Was this reply helpful? Yes No
