‎12-20-2020 02:44 PM

HP Recommended
Product: Z240
Operating System: Microsoft Windows 10 (64-bit)

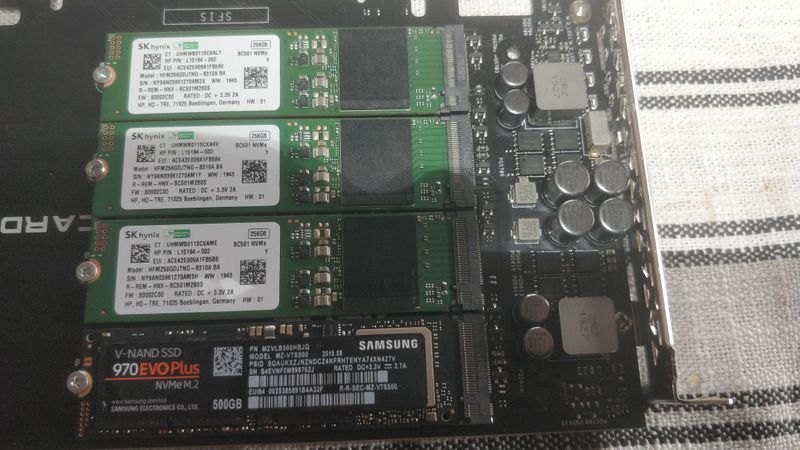

Hello. I have been using an Asus M.2 PCI X16 card on a Z240 for several months with a Samsung Nvme M.2 evo 970 ssd plus 500GB. It works fine but when I add more, they are not recognized by Windows 10. Any idea what the problem is? Thanks for your help.IMG_20201220_140808.jpg

1 ACCEPTED SOLUTION

Accepted Solutions

‎12-27-2020 11:06 PM

HP Recommended

unless the z240 bios supports bifurcation (splitting the x16 slot into two x8 or four x4) your asus card will not work with more than one SSD



visit the asus site for compatible motherboards



https://www.asus.com/Motherboards-Components/Motherboards/Accessories/HYPER-M-2-X16-CARD-V2/techspec...

View solution in original post

Was this reply helpful? Yes No
1 REPLY 1

‎12-27-2020 11:06 PM

HP Recommended

unless the z240 bios supports bifurcation (splitting the x16 slot into two x8 or four x4) your asus card will not work with more than one SSD



visit the asus site for compatible motherboards



https://www.asus.com/Motherboards-Components/Motherboards/Accessories/HYPER-M-2-X16-CARD-V2/techspec...

Was this reply helpful? Yes No
