02-24-2021 04:26 PM

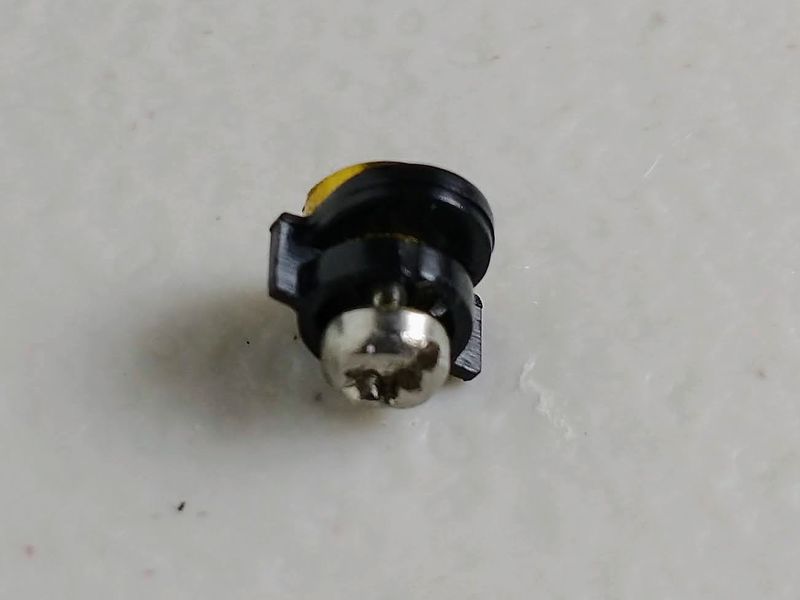

I have in the past run into this issue where I bought a used HP item from eBay and it was missing the M.2 mounting screw that HP uses. It's not the usual M2 or M3 screw thread... more like M1.6 with a black plastic piece that holds the M.2 SSD. I have a Z Turbo Drive G2 that is also missing this mounting screw. The same was also found in some HP T620 Plus thin client machines too. Not really sure what the part number is?
02-24-2021 08:56 PM - edited 02-25-2021 03:35 AM
Voice of experience:
1. Never buy a HP ZTD generation 1 or 2 PCIe card from eBay without informing the seller ahead of time to not accept the purchase if that very specific hold down brass/black plastic/ tiny metric screw is NOT included. Those are not standard size M.2 hold down screws... they are very much HP specific. The seller will say oops if you buy and it was in the picture and yet not included, but you won't get your screw. You might get your money back, with significant hassle. Clarify it ahead of time.
2. Don't over-tighten them... gentle snug only. Those threads can "gall" and freeze up. Look up galling, or "to gall". Don't ask how I know.
3. You don't really need one if you have the Generation 2 version with the aluminum heatsink that will gently clamp down on the M.2 drive via the thermal foam pads above and below. You can use one of those heatsinks from a generation 2 ZTD on a generation 1 ZTD. Take a look... it does not take much to hold that M.2 stick in place.
4. You could do us a favor and go on to McMaster.com and look at their metric tiny machine screws, and buy one of each of the tiny ones and check it against a correct HP one, and let us know exactly what the metric diameter and thread pitch specifications are so everyone in the future could know at least what threads would fit.
5. Best solution is #1 above.
6. Worst solution is buying a second HP PCIe M.2 card just to get the special HP screw (which is what I did because I found a great deal on a second card).
02-27-2021 02:35 AM
@SDH : I appreciate the reply, but doesn't really help the current situation.
I did figure out that the thread size is indeed M1.6. Still, would rather find the HP part number for the above screw and wish I could buy replacements somewhere.
My final solution will be to drill out the threads with a 1.6mm drill bit and then tap in M2 threads. M2 wafer head screws are very easy to find in many lengths. I can use that with some nylon washers to use a spacers and come up with a make shift solution.
04-26-2021 05:50 AM
I faced a similar problem with a Z Turbo Drive G1 this week, when I couldn't get the HP retaining screw to engage after installing a double sided SSD. As this thread helped me, I'll try and help back.
I ordered M1.6x10mm bolts with an integral washer from Amazon, which had too small a head. With the addition on an M2 washer all was good and I have a securely mounted SSD.
Shorter bolts than 10mm would have been better, I'll may get some 5mm bolts some time.
04-27-2021 12:04 PM
there is also another alternative, you can simply buy a nylon threaded rod and matching m.2 screw cut it to the necessary length and epoxy it to the HP card note that if you go this route i highly recommend nylon/plastic over metal as the plastic parts are not conductive and will not cause any problems if something comes loose
