Hello,



I am looking for a spare part for my HP DesignJet T630 36-in printer.



The part I am looking for is Multi Sheet Tray sensor assembly.



Looking at the Service Manual, it says this is the correct part number: 5HB08-67010



When I check Partsurfer, it seems like this part number belongs to an AirPrint module instead of the sheet tray sensor.



Does anyone know what the correct part number for the Multi Sheet Tray sensor assembly is?

See image below. I need part number "3"






4 REPLIES 4

‎10-29-2025 04:53 AM - edited ‎10-29-2025 04:55 AM

HP Recommended

Hi @MarcusLind

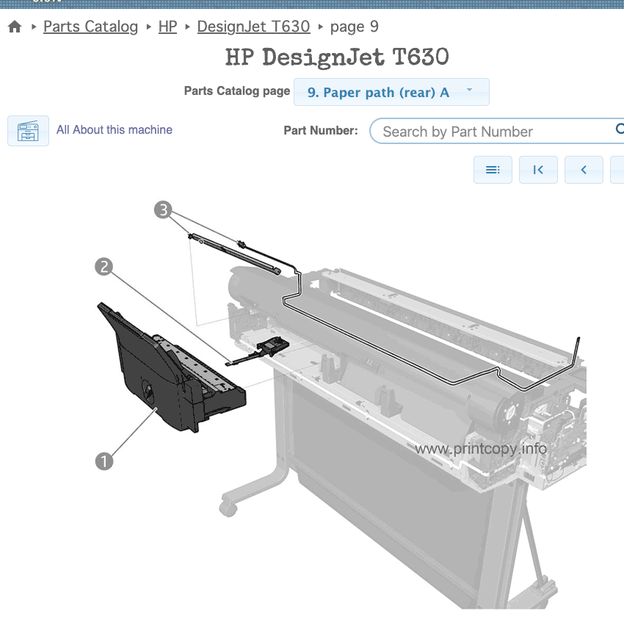

To find Designjet printer parts you may need to search with external vendors like the next:



>> https://printcopy.info/?mod=pc&brand=HP&model=DesignJet+T630&page=9



  • ferRX_0-1761734913142.png



Also you can ask for more information in the next



HP Parts Store:

>> https://parts.hp.com/hpparts/Part_Resellers.aspx?mscssid=A9D8DB7D711E4449B7D8FBFD3B35B62F&geo_code=N...



* Click YES   to say thank you,

* Click Accepted as Solution when question is answered.

Best regards,

ferRX.



@ferRX / I am a volunteer posting answers on my own time.
1 person found this reply helpful
Was this reply helpful? Yes No

‎10-29-2025 04:59 AM

HP Recommended

Hello,



Thank you for the tip, but I have already visited that site. Unfortunately, they don't sell that part. They also list 5HB08-67010 as the correct part number.

Was this reply helpful? Yes No

‎10-29-2025 05:00 AM

HP Recommended

The last link shows the part number as AirPrint module.

Was this reply helpful? Yes No

‎10-29-2025 01:28 PM

HP Recommended

This is one of those iffy parts. It may or may not be available. You can try searching for 5HB08-67007 but some vendors show that as the whole assembly and some state it is only the paper support. HP never offered it as an upgraded on a model that did not have it originally.

If you find the information provided useful or solves your problems, help other users find the solution easier by marking my post as an accepted solution. Clicking "yes" on "was this reply helpful" also increases the chances that this solution will help others.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.



Was this reply helpful? Yes No
