Configure Address Book onto HP Dessignjet T2600

HP Recommended
HP Designjet T2600

Hello

I need to setup Address Book on HP Designjet T2600 newly received ,and I need to set up address book for scan to email

I found that I need to setup Ldap setting but I do not find exactly how to set up

I have the user guide and the explanation but I do not understand what I should put into for example:Server authentication requirements and which account and in the

LDAP Database search settings section:
6. Fill in these fields:
● In the path to start a search (BaseDN, Search Root) box, enter the path to start searching the
database (for example, o=mycompany.com).
● In the recipients's display name box, enter the name of the attribute that contains the person's name
(for example, displayName). WHICH RECIPIENT????
● In the recipient's email address box, enter the name of the attribute that contains the person's email
address (for example, mail or rfc822Mailbox).

Many thanks for your reply

Best regards

Mireille

2 REPLIES 2
Repairatrooper
Level 13
Level 13
10,434 10,271 1,062 3,115
Message 2 of 3
Flag Post
HP Recommended

First question: Do you have an LDAP server at your location. If you do, then your IT support people should be able to provide the required details. LDAP is not essential. You can use the local address book but this will require manual typing or importing a properly formatted CSV file. The local book is not that hard to setup if you are using the embedded web server as you are using a standard keyboard which typically makes typing much faster than using touch screen.

If you find the information provided useful or solves your problems, help other users find the solution easier by giving kudos and marking my post as an accepted solution.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.


Was this reply helpful? Yes No
HarryCR
Level 5
Level 5
216 215 16 23
Message 3 of 3
Flag Post
HP Recommended

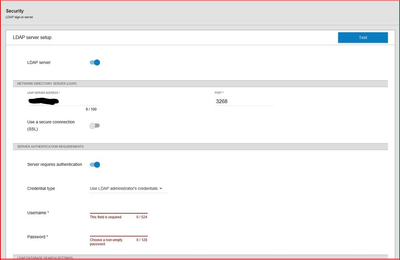

Hello @Mireillelacombe



Check the information below.



CN = Common Name

OU = Organizational Unit

DC = Domain Component



To find LDAP Server address, open command prompt and type in “echo %LOGONSERVER%”



Bind and Search root example entry is OU=US,OU=Americas,OU=users,OU=accounts,DC=AUTH,DC=NET



Credentials

Username = e-mail address

Password = password to sign onto computer





Some additional info regarding the username and password going blank after they hit apply.



I had my sysadmin look at this.



the login username had to be a specific name setting not just the user name here is an example what we had to use:

CN=Scrubs Account,CN=Users,DC=ci,DC=plymouth,DC=mn,DC=us

(my user name is Scrubs)

credential type in LDAP had to be set to simple and no ssl but server authentication






I hope this information will help you.
