Product: HP T520

HELLO. I HAD THE ERROR B3003FD4 on my Plotter, changed the Main PCB board and now a i see the code error: B87E3790 with blue screen on my T520 HP Plotter.



Please your help solving this issue.



thank you

andres castillo
Tags (1)
1 REPLY 1

‎08-28-2020 02:26 AM - edited ‎08-28-2020 02:27 AM

HP Recommended

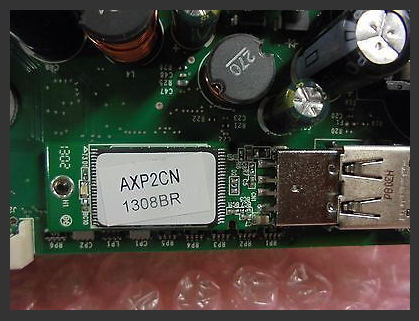

chip na plytce.jpgHello

You need to replace HP Encrypted chip

It is inside the printer on main PCA

in USB slot

Like this one



https://www.ebay.com/itm/HP-Designjet-T520-T120-Blue-Green-Screen-Error-Solution-Encrypted-chip/2838...



chip na plytce.png

Was this reply helpful? Yes No
