Product: HP DesignJet Z5200 44-in Photo Printer

The foam that is under the Full Bleed Foam and called Platen Middle Foam .

Does anyone know the part number and where can I get a replacement ?

All it says in the service manual is Platen Middle Foam that is under the Full Bleed Foam.

But gives no part number. Thanks Bobby

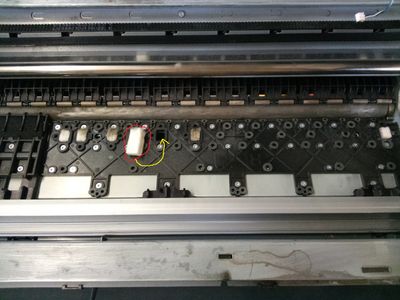

part number.jpg

Category:
2 REPLIES 2

‎05-06-2023 05:03 AM

HP Recommended

This is the part number for the complete full bleed foam kit.  I could be wrong but I don't think they sell just that piece of foam separately.



Q6659-60182



A quick google search brought up several vendors with that part on hand.

I don't work for HP....I just repair their printers.
Was this reply helpful? Yes No

‎05-06-2023 11:20 AM

HP Recommended

D Hook

I found a photo of the full bleed kit and both types of foam are included in the kit

https://www.tonerpoint24.com/hp/ersatzteile/13570/hp-q6659-60182-full-bleed-foam-fuer-designjet-t110...



Bobby

Was this reply helpful? Yes No
