‎09-27-2020 08:04 AM

HP Recommended

@maljane



@wakakaa appears to have successfully installed a Samsung EVO plus after updating the BIOS. I cannot view Wakakaa's images at this time so we will have to wait until the forum approves the images.



It looks like the BIOS update will allow you to boot to a NVME SSD installed in a PCIe adapter. This means you can clone or image the current operating system (OS) to the new NVME SSD, or install the OS clean on the new NVME SSD for use as a primary OS boot disk.



This is the first time I have seen this happen in the forum. Native M.2 support is usually required to boot to a NVME SSD installed in a PCIe adapter..



Regards





Was this reply helpful? Yes No

‎09-27-2020 08:57 AM

HP Recommended

Hi, did you do this operation on the same computer model? EliteDesk 800 G2 ?

Was this reply helpful? Yes No

‎09-27-2020 09:40 AM

HP Recommended

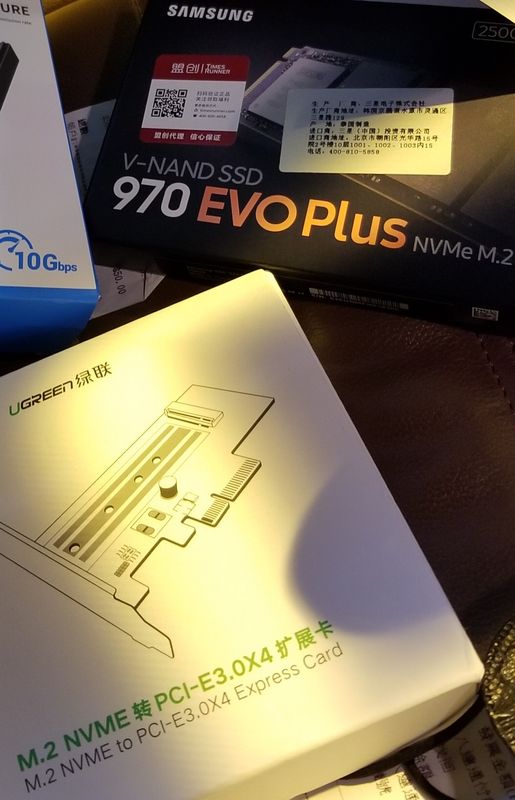

Yes, i bought it at USD5.5, please make sure that UGreen is selling NVMe and NGFF version.

Don't buy the wrong one!!! 😛




HP EliteDesk 800 G2 Small Form Factor PC / 32GB DDR4-2666 Ram / Samsung 970 EVO Plus 250GB M.2 NVMe / ASUS GeForce GT 1030 OC 2GB GDDR5
Was this reply helpful? Yes No

‎09-27-2020 09:45 AM

HP Recommended

To supplement, I upgraded the BIOS and then disconnected everything except the original SATA SSD & new Samsung EVO Plus M.2 NVMe (not NGFF). Then I used Acronis to clone the Windows from SATA to M.2 NVMe.



After that, disconnect the SATA SDD and connect the M.2 SSD only. Then, booted into the Windows. Wow!

HP EliteDesk 800 G2 Small Form Factor PC / 32GB DDR4-2666 Ram / Samsung 970 EVO Plus 250GB M.2 NVMe / ASUS GeForce GT 1030 OC 2GB GDDR5
Was this reply helpful? Yes No

‎09-27-2020 10:21 AM

HP Recommended

Opps.... sorry mine is SSF instead of TWR, but it is definitely 800 G2.

Also, the Windows Boot Manager is detected as M.2 with first boot priority.


HP EliteDesk 800 G2 Small Form Factor PC / 32GB DDR4-2666 Ram / Samsung 970 EVO Plus 250GB M.2 NVMe / ASUS GeForce GT 1030 OC 2GB GDDR5
Was this reply helpful? Yes No

‎09-27-2020 11:44 AM

HP Recommended

can you send me the purchase link so that i am not mistaken

Was this reply helpful? Yes No

‎09-27-2020 11:55 AM

HP Recommended



Is this the right product?

https://a.aliexpress.com/_m06oTab



Was this reply helpful? Yes No

‎09-27-2020 11:48 PM

HP Recommended

Yes, I believe so. Looks like exactly the same! 😀

HP EliteDesk 800 G2 Small Form Factor PC / 32GB DDR4-2666 Ram / Samsung 970 EVO Plus 250GB M.2 NVMe / ASUS GeForce GT 1030 OC 2GB GDDR5
Was this reply helpful? Yes No
