HP Z2 Tower G9 Workstation Desktop PC IDS Base Model

hi there

I hope some one help me , I have now a Pc  HP Z2 Tower G9 Workstation Desktop PC IDS Base Model , I tred to format and reinstall  WIN 11 PRO but SSD storage didn't appear when tried to format and reinstall .I used (MediaCreationTool) to make a bootable flash drive with Windwos11, and I also tried Rufus with these setting to make a bootable flash drive and the SSD still didn't appear

Please can you help me with that. Thanks

1 ACCEPTED SOLUTION

Accepted Solutions
HP Recommended

Try the Intel storage controller drivers that I zipped up and attached below so Windows can find the drive.



Copy all of the files in both folders in the attached file to a USB flash drive.



Have the flash drive and your Windows installation media plugged into USB ports.



Boot from the W10 installation flash drive.



When you get to the screen where no drives can be found, click on the Load driver option, browse to the flash drive with the storage controller drivers on it.



If you check the box, it will only include the compatible driver.



Click Next and if those are the right drivers Windows should find the drive and install.



View solution in original post

4 REPLIES 4
HP Recommended

Try the Intel storage controller drivers that I zipped up and attached below so Windows can find the drive.



Copy all of the files in both folders in the attached file to a USB flash drive.



Have the flash drive and your Windows installation media plugged into USB ports.



Boot from the W10 installation flash drive.



When you get to the screen where no drives can be found, click on the Load driver option, browse to the flash drive with the storage controller drivers on it.



If you check the box, it will only include the compatible driver.



Click Next and if those are the right drivers Windows should find the drive and install.



HP Recommended

HI Paul_Tikkanen Thank you for responding to me

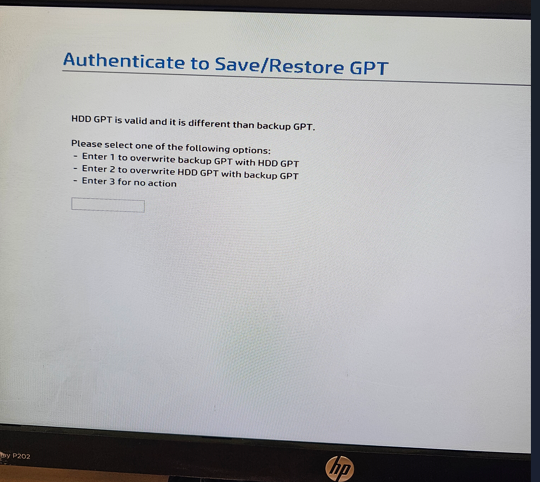

I have tried the Previous steps but there are problems after Windows installation is done , it shows  Authenticate to Save /Restore GPT when press and num it goes to a Blue screen RECOVERY لقطة شاشة 2024-04-23 090004.pngلقطة شاشة 2024-04-23 090020.png

thank you

HP Recommended

You're very welcome.



Unfortunately, I wouldn't be able to help you with that because I have never encountered that problem before.

HP Recommended

thank you for help me it works fine after i repeat the apove steps again it works when the selection page of Authenticate to Save /Restore GPT  I selected frist one ( -Enter1 to overwrite backup GPT WITH HDD GPT ) and The system is preparing to open  then restart again  for 3 time, all the time I selected frist one of Option from Authenticate page. now it work fine
