The HP Calculator Community Message Board is moving. While we prepare for the move, we are unable to accept new postings. During the move, you can look for help from other users by visiting https://www.hpmuseum.org/ . Or if you need technical support for your calculator visit: HP Calculators. .
aalhajjaji
Level 1
5 4 0 0
Message 1 of 11
377
Flag Post

Solved!

change my ssd

HP Recommended
5ml75ea
Microsoft Windows 10 (64-bit)

160908645367761



I would like to change the disk from SSD128 to a larger disk so what is the appropriate type, is it ssd m.2 sata or ssd m.2 NVME ?

This is my model:  https://support.hp.com/us-en/document/c06188393?jumpid=reg_r1002_usen_c-001_title_r0003




1 ACCEPTED SOLUTION

Accepted Solutions
Paul_Tikkanen
Level 21
Level 21
137,743 92,405 21,248 28,535
Message 9 of 11
Flag Post
HP Recommended

Hi:



Does the BIOS recognize the SSD?



If not, then it a NVMe SSD must not be compatible and only SATA SSD's are supported like the one you removed.



If the NVMe SSD does show up in the BIOS, try clean installing W10 on it by making bootable installation media using the media creation tool from the link below.



Download Windows 10 (microsoft.com)

View solution in original post

Was this reply helpful? Yes No
10 REPLIES 10
Paul_Tikkanen
Level 21
Level 21
137,743 92,405 21,248 28,535
Message 2 of 11
Flag Post
HP Recommended

Hi:



The drive you removed is a SATA drive.



I cannot find any information from HP as to whether or not your PC's motherboard would also take a NVMe drive.



However, the Crucial memory/SSD report for your PC indicates that it does support NVMe drives.



Memory RAM & SSD Upgrades | hp - compaq | pavilion 27 series | Pavilion 27-xa0003nx All-in-One | Cru...





Was this reply helpful? Yes No
Prométhée
Level 16
Level 16
7,577 7,480 806 2,828
Message 3 of 11
Flag Post
HP Recommended

hi



" The drive you removed is a SATA drive. "

Sorry, how do you know it's an SSD and not NVMe?
The product page indicates:

128 GB PCIe® NVMe™ M.2 SSD



I admit having a little trouble differentiating the two there.






Please remember to mark the answers this can help other users
please click on the accept as solution button if message provided an answer to the problem >

was this reply helpful , or just say "thank you " ? Click on the yes button
Warning
If you have to do certain manipulations, it is at your own risk, think carefully before acting!
If you don't think you can, get help, or go to a professional





Desktop-Knowledge-Base
happy New Year
Was this reply helpful? Yes No
Paul_Tikkanen
Level 21
Level 21
137,743 92,405 21,248 28,535
Message 4 of 11
Flag Post
HP Recommended

I have never in my life seen a NVMe drive with two notches cut into the contacts.



I checked the parts list for the product number and it doesn't list any M.2 drives, so I can't cross reference the part number.

Was this reply helpful? Yes No
Prométhée
Level 16
Level 16
7,577 7,480 806 2,828
Message 5 of 11
Flag Post
HP Recommended

Yes, I hadn't noticed the pictures are small
But then the information is contradictory
look at the models of the series, for some (same motherboard) it is not specified NVme indeed ..

27-xa0013ny Product Specifications

256 GB SATA SSD


I listed two or three models in hp part, but no references, some were with 256
256 GB PCIe® NVMe ™ M.2 SSD
If the notches are not the same, I don't see how, those in crucial can be compatible, in this case!
curious situation




Please remember to mark the answers this can help other users
please click on the accept as solution button if message provided an answer to the problem >

was this reply helpful , or just say "thank you " ? Click on the yes button
Warning
If you have to do certain manipulations, it is at your own risk, think carefully before acting!
If you don't think you can, get help, or go to a professional





Desktop-Knowledge-Base
happy New Year
Was this reply helpful? Yes No
aalhajjaji
Author
Level 1
5 4 0 0
Message 6 of 11
Flag Post
HP Recommended

I bought this ssd  https://www.amazon.com/Kingston-Internal-Security-SA2000M8-500G/dp/B07VXCFNVS/ref=sr_1_1?dchild=1&ke...



and tried to install it with the clone process but it doesn't boot up, I think the ssd does not fit on my computer 😔



thanks all




Was this reply helpful? Yes No
aalhajjaji
Author
Level 1
5 4 0 0
Message 7 of 11
Flag Post
HP Recommended

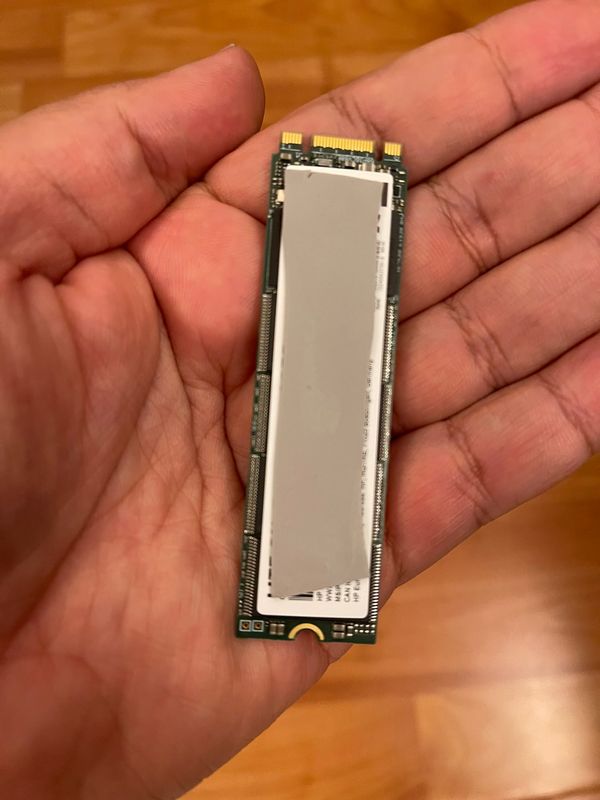

.big pic

EpmbwpIXIAAyyRe (1).jpgEpmbwpGWwAMQFTB.jpg

Was this reply helpful? Yes No
aalhajjaji
Author
Level 1
5 4 0 0
Message 8 of 11
Flag Post
HP Recommended

Look here  SSD  m.2 EpmbwpFXUAAeIxZ.jpgone port

Was this reply helpful? Yes No
Paul_Tikkanen
Level 21
Level 21
137,743 92,405 21,248 28,535
Message 9 of 11
Flag Post
HP Recommended

Hi:

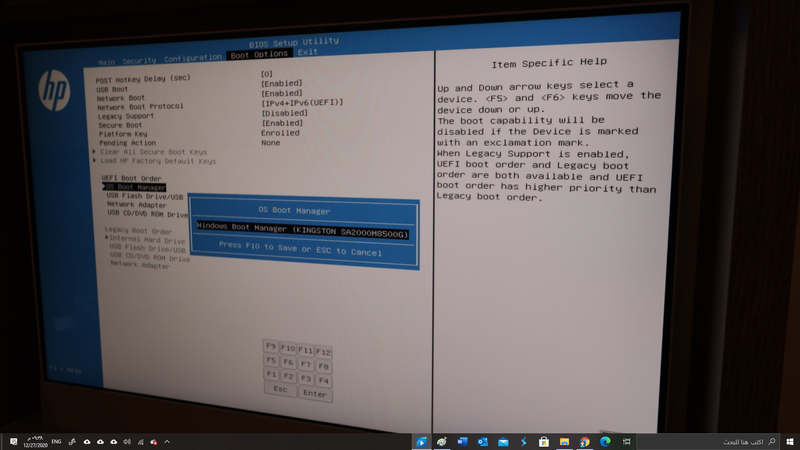

Does the BIOS recognize the SSD?



If not, then it a NVMe SSD must not be compatible and only SATA SSD's are supported like the one you removed.



If the NVMe SSD does show up in the BIOS, try clean installing W10 on it by making bootable installation media using the media creation tool from the link below.



Download Windows 10 (microsoft.com)

View solution in original post

Was this reply helpful? Yes No
aalhajjaji
Author
Level 1
5 4 0 0
Message 10 of 11
Flag Post
HP Recommended

thanks  i  will try

Was this reply helpful? Yes No
