EliteDesk 800 G5 Mini PC upgrade to wifi6 and 6E

[mgfe]

Hey everyone, I tried searching all the resources I could find. I can't find what wifi adapter would be compatible with the EliteDesk 800 G5 Mini PC.   Could anyone point me a card that is known to work?

i want he option of wifi6 and E

according to this there are options

https://support.hp.com/au-en/document/c06403210#AbT10

Thank you

[Paul_Tikkanen]

Hi:

The link below has the supported Wi-Fi cards HP offered in the model series.

HP EliteDesk 800 G6 Desktop Mini PC Specifications | HP® Customer Support

None of them are Wi-Fi 6.

The only suggestion I can offer would be to experiment with this card which should have a good chance of working.

Intel AX210 Wi-Fi 6E 2x2 AX + Bluetooth 5.2 M.2 2230 non-vPro   HP part # M27269-005.

[mgfe]

my bad i have the G5 model

[mgfe]

sorry i have the G5 model

[Paul_Tikkanen]

The Intel AX210 Wi-Fi 6E 2x2 AX + Bluetooth 5.2 M.2 2230 non-vPro   HP part # M27269-005, would still be the only Wifi 6 E card I would recommend you try.

The below link shows the Wi-Fi cards HP offered in the 800 G5 DM model series:

HP EliteDesk 800 G5 Desktop Mini Business PC Specifications | HP® Customer Support

[mgfe]

hi

this is the list hp gave me today but no part numbers....

WLAN: Intel® Wi-Fi 6 AX200 (2x2) and Bluetooth® M.2 Combo Card non-vPro™;

Intel® Wi-Fi 6 AX200 (2x2) and Bluetooth® M.2 Combo Card vPro™;

Intel® Dual Band Wi-Fi 5 9560 (2x2) and Bluetooth® 5 M.2, non-vPro™;

Intel® Dual Band Wi-Fi 5 9560 (2x2) and Bluetooth® 5 M.2, vPro™ ;

Intel Dual Band Wireless-AC 9560 802.11 AC 2x2 WiFi + Bluetooth 5.0 Combo Adapter (non-vPro)

Wi-Fi 6E AX210NGW Wireless WiFi Card BT5.2 M.2 2230 Tri

does any one have part numbers and maybe direct links to suppliers amazon etc for benefit of everyone?

[Paul_Tikkanen]

I already gave you the HP part number of the Intel AX210--twice.

The HP part number and description for the Intel AX200 Wi-Fi 6 card is:

Intel Wi-Fi 6 AX200 ax 2×2 + Bluetooth 5.0 MU-MIMO M.2 2230 non-vPro    HP part # L35282-005

[mgfe]

hi all

Curious if anyone has down this upgrade and it has been successful? If so, could you post a link to the option you used??

thx in advance

[DGroves]

your chassis may not have come with the necessary wiring to connect the wifi card to the needed wifi antennas

for this reason i recommend the HP kits that have the cable/card, which route the antennas/cables internally

if you want to use a intel AX210e card you need to buy the cables/card separately

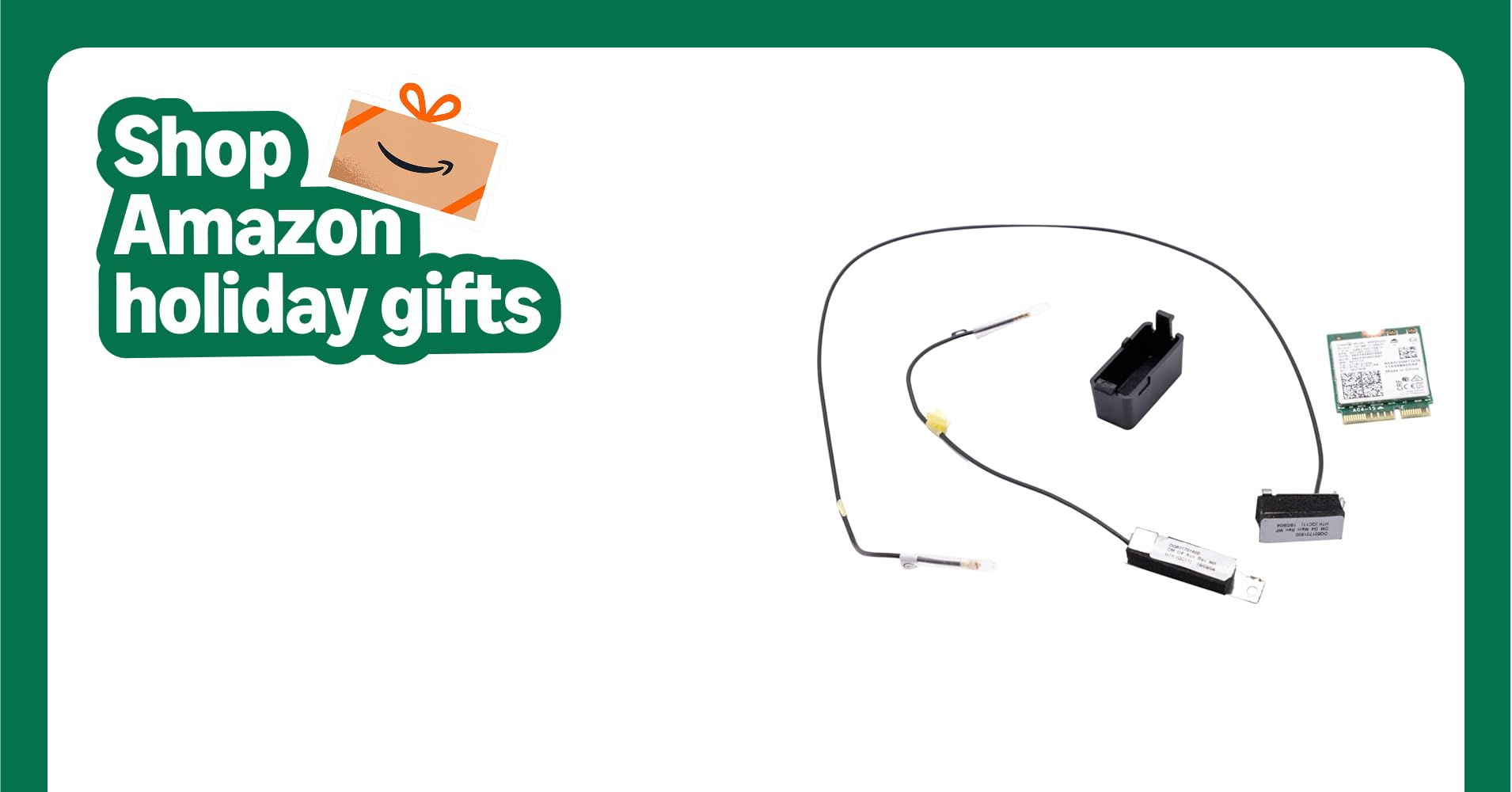

https://www.amazon.com/BestParts-Replacement-EliteDesk-DQ601701600-937263-001/dp/B0BD7MX5CB

https://www.amazon.com/Wi-Fi-AX210-802-11ax-Bluetooth-AX210NGW/dp/B08P2RVWSL

HP exploded parts diagram

https://support.hp.com/us-en/document/c06516579

if using a aftermarket kit you need to make sure the included wiring antenna cables are long enough to connect the card/antennas also you need to find a place to make the mounting holes for the external antenna jacks

https://www.amazon.com/999M85-WiFi6E-Antenna-Extension-15-3cm/dp/B09QKYT7TT
