‎06-23-2023 07:06 AM - edited ‎06-23-2023 07:09 AM

HP Recommended
Product: HP ProLiant ML110 G3

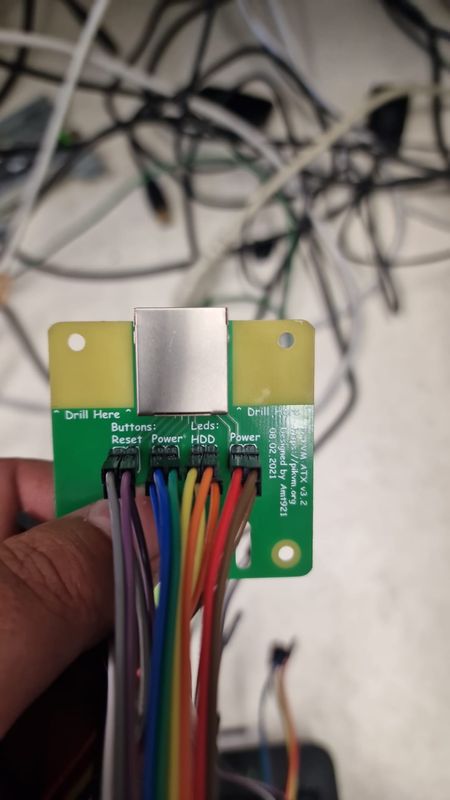

Hello, I am faced with the following situation: I want to connect my self-built PiKVM v3 HAT to the mainboard. Unfortunately, I have not yet been able to find out which connections on picture 1 are the correct ones for the functions on picture 2 and picture 3. I know there is no reset connector. I am just looking for the correct connector for Power, HD and Power. It would be very helpful if someone could help me with this



This is my Mainboard: HP  392170-001



11

2233

Category:
3 REPLIES 3

‎06-23-2023 07:23 AM

HP Recommended

Hi:



HP split into two companies back in 2014.



HP supports PC's, printers, tablets and calculators.



HP Enterprise (HPE) supports servers, switches, routers, and tape storage devices.



You may want to post your question on the HPE community support forum -- Proliant servers section...



ProLiant Servers – ML, DL, SL Forum | HPE Blogs, Discussions and Forums Community

Was this reply helpful? Yes No

‎06-23-2023 07:33 AM

HP Recommended

thank you for the information, will try it

Was this reply helpful? Yes No

‎06-23-2023 08:29 AM

HP Recommended

You're very welcome.

Was this reply helpful? Yes No
