Where does a wide red wire within PC belong? How to re-plug in CD/DVD unit? Inside of my PC is a wide red wire/line. It is not plugged into anything. Wide meaning in comparison to the others. (flat in appearance) My best guess: It goes to the CD/DVD unit that no longer functions. Reviewed help as to replacing the unit but it shows only the CD/DVD player and not where the other ends of two cables plug in. Also searched for a schematic to no avail. Would appreciate 1. Where does the red wire go if anywhere? 2. Where do the two wires out of CD/DVD player plug into? Not familiar with internal parts. Thanks for taking the time to review my question.

[praveenbv]

Hi@GDimesWorth, Welcome to the HP Support Community!

I understand that has an explanation it looks like a SATA cable. and the power connecter.

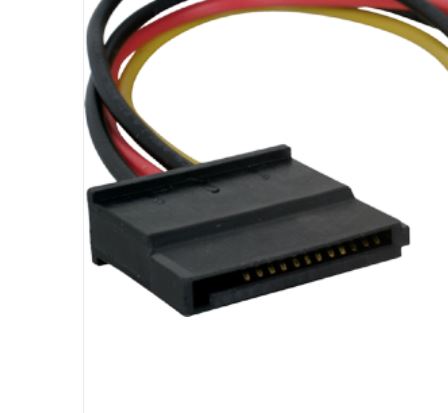

Please find the pictures below of both.

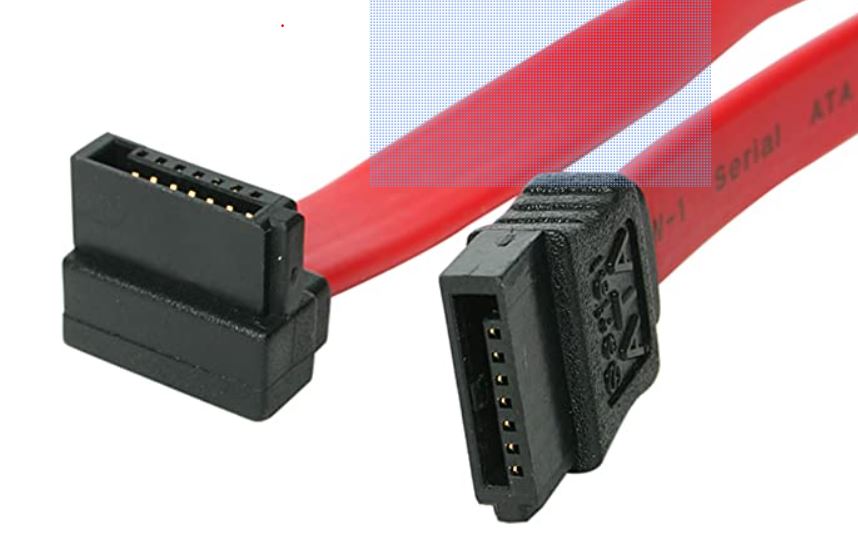

SATA Cable

Hope that answers your question and you have a great day!

Please click “Accept as Solution” if you feel my post solved your issue, it will help others find the solution.

Click the “Kudos, Thumbs Up" on the bottom right to say “Thanks” for helping!

Have a great day!

[DimesWorth]

Thank you for the rapid reply. Excellent image as it is the correct wire. My inquiry remains. Where does this wire plug in to? (Both ends) And the other wire out of CD/DVD player. Where does it plug in to? Look forward to your reply. HP Pavilion 500-164 Desktop.

[praveenbv]

HI@DimesWorth,

Need to connect to Sata port on the motherboard and the other to the SMPS

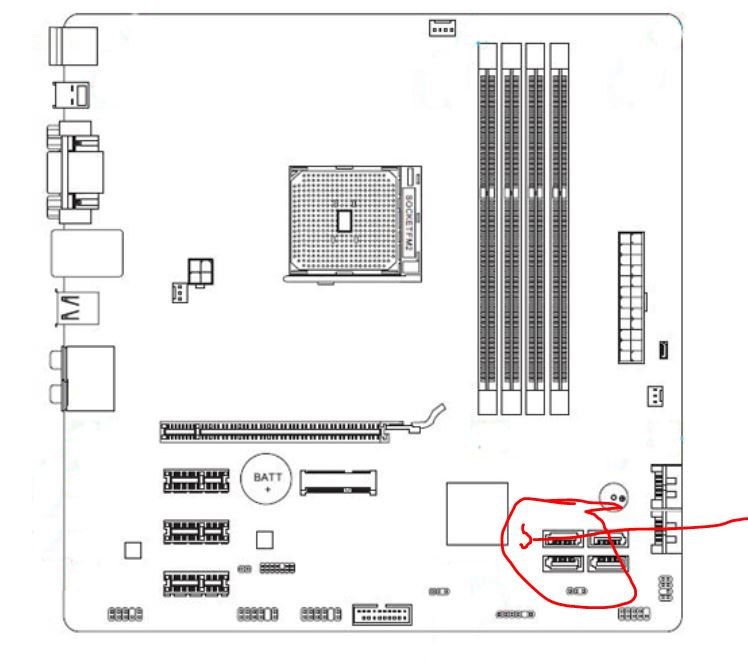

Please find the document blue print on the mother board link

[DimesWorth]

Thank you.
