How do I remove the GPU Bracket from the HP Omen 870-244?!

HP Omen 870-244
Microsoft Windows 10 (64-bit)

I am trying to figure out how to remove the GPU Bracket that is holding the GPU in place for my HP Omen 870-244. I have searched this message board, along with many others, and I cannot find instructions or even a picture of how to do this. I know that people are obviously removing their GPU's, but I cannot seem to figure out how to get the bracket out that is holding the GPU in place, and it is very frustrating.

7 REPLIES 7
Provost
Provost
25082 24756 3545 7909
Message 2 of 8
1,765
Flag Post
HP Recommended

Solved!

How do I remove the GPU Bracket from the HP Omen 870-244?!

@njannam



OMEN by HP 870-200 - 2. Service Procedure Videos



https://h20574.www2.hp.com/results.htm?SID=13687063&MEID=BA760215-AE55-43D7-812F-BAFE32582183



Click on Expansion Card.



REO

If you need further assistance please start a new post as I no longer will be a part of the HP Support Community.
Reply
0 Kudos
njannam Top Student
Top Student
3 2 0 1
Message 3 of 8
1,763
Flag Post
HP Recommended

Solved!

How do I remove the GPU Bracket from the HP Omen 870-244?!

This video does not help me. I have seen you reply with this video link in other posts.



I included my specific model number because other models do not include the GPU bracket. The video shows you how to remove a card that does not use the GPU bracket.



To be clear, I'm looking for instructions on how to remove the GPU bracket. I know how to remove the GPU, but the bracket must be removed first.

Reply
0 Kudos
Provost
Provost
25082 24756 3545 7909
Message 4 of 8
1,748
Flag Post
HP Recommended

Solved!

How do I remove the GPU Bracket from the HP Omen 870-244?!

Sorry about that @njannam



Now I see what you mean.



Good luck.



REO

If you need further assistance please start a new post as I no longer will be a part of the HP Support Community.
Reply
0 Kudos
Provost
Provost
28010 27540 1807 5032
Message 5 of 8
1,734
Flag Post
HP Recommended

Solved!

How do I remove the GPU Bracket from the HP Omen 870-244?!

@njannam



Please review this video.  It might be helpful even though the cabinet is quite different.

HP Photosmart 6520
HP Envy 17", i7-8550u,16GB, 512GB NVMe, 4K screen, Windows 10 x64
Custom PC - Z390, i7-9700K, 32GB, dual 512 GB NVMe, dual 512 SSDs, 2K screen, OC'd to 5 Ghz, NVIDIA 2080TI 11GB
Reply
0 Kudos
VersedGuardian Top Student
Top Student
1 1 1 0
Message 6 of 8
1,659
Flag Post
HP Recommended

Solved!

How do I remove the GPU Bracket from the HP Omen 870-244?!

Reply
0 Kudos
Provost
Provost
28010 27540 1807 5032
Message 7 of 8
1,652
Flag Post
HP Recommended

Solved!

How do I remove the GPU Bracket from the HP Omen 870-244?!

@VersedGuardian



OMG! :Surprise:  I see that HP is not into cable management per se with it's upper end PCs. Yikes.

HP Photosmart 6520
HP Envy 17", i7-8550u,16GB, 512GB NVMe, 4K screen, Windows 10 x64
Custom PC - Z390, i7-9700K, 32GB, dual 512 GB NVMe, dual 512 SSDs, 2K screen, OC'd to 5 Ghz, NVIDIA 2080TI 11GB
Reply
0 Kudos
MHLHiker Top Student
Top Student
9 9 0 0
Message 8 of 8
572
Flag Post
HP Recommended

Solved!

How do I remove the GPU Bracket from the HP Omen 870-244?!

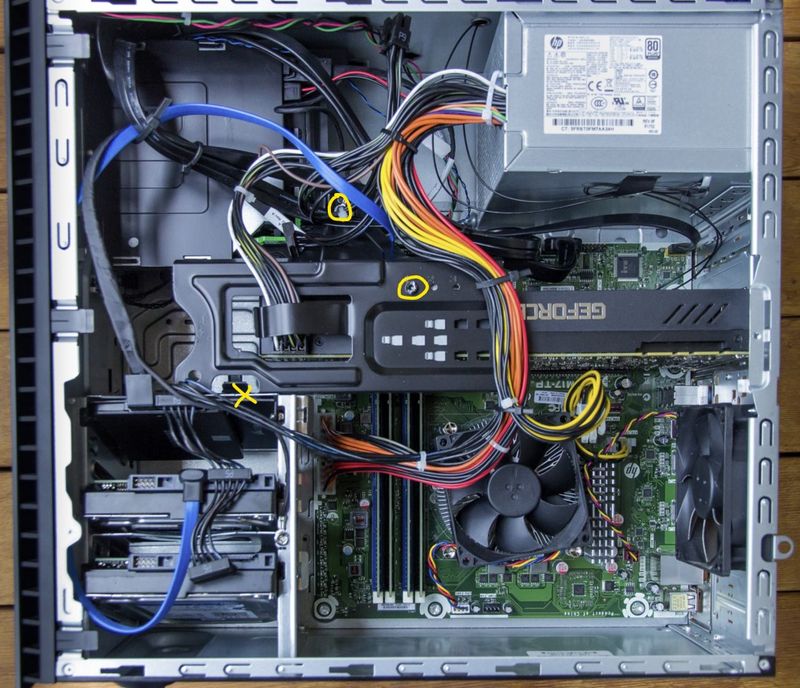

Remove the screws circled in yellow. While pulling outward on the black clip (yellow "X"),  lift up on the clamp.  Note how the silver piece of metal under the mount adjacent the top screw clips to the mount. It will most likely detach when you remove the mount.  To remove the graphics card, release the clip at the front of the graphics card slot (push down) and remove the vertical plate (two screws) on the rear-left of the case adjacent the video I/O ports.
