I need an image with description of a motherboard

[Sephyro]

Hi I recently added a graphics card to my pc and a power supply, both didn't fit into the original case. I bought a new spacious case and transfered all the componants. But I had trouble knowing where to connect the front pannel cables onto this motherboard: IPMB 1-SV

Can someone help me by telling me where are the possibilities to plug only leds?

The leds descriptions are:   -Power led+(one pin)(white cable)

                                                       -Power Led-(one pin)(blue Cable)

                                                       -H.D.D Led(two pins)(Orange and white cable)

I already figured out where i could plug the POWER SW(two pins)(Red and black) to startup the pc, it goes on the bottom left two pins flat to us from point of view of the second picture.

Please someone guide me.

[Big_Dave · Accepted solution]

Hi,

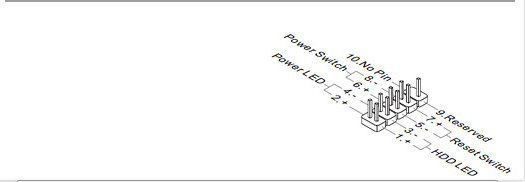

HP has been using a standard front panel pin out for a number of years.

The LED pins are poliarity sensitive. If the LEDs are not working then reverse the leads.

[Sephyro]

Thank you this was exactly what i was looking for therefor i have finally replaced the front pannel connectors.
