Microsoft Windows 10 (64-bit)

I'm a beginner PC builder, but can't find the issue with this one.

Here's the parts list:



- HP ipm87

- Intel 4770

- GTX 1050 ti

- HP 460 watt power supply

- 12gb ram (1x8gb + 1x4gb)



It attempts to boot, but just never does. Not sure if something isn't compatible, but most parts are from an old HP prebuild.

Not sure which model as I bought the spare parts off of facebook marketplace. Any suggestions?

5 REPLIES 5
HP Recommended

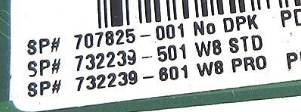

I am guessing you have this model, please verify




The 732239-601 is used in the HP PAVILION CTO 500-210QE



The latest bios is 80.21 dated Oct 2, 2015

Power your motherboard up using the build in graphics and verify your BIOS SSID is 2AF7

If you have 2AF7 and an older bios then try the new one

https://support.hp.com/us-en/drivers/selfservice/swdetails/hp-pavilion-500-200-desktop-pc-series/539...


Recommended video boards for the 500-100 are
  • GeForce GT 625 (1 GB)
  • Radeon HD 8470 (1 GB)
  • Radeon R7 240 (2 GB)

Those are all low power boards.  The 1050ti requires 75 watts.  The entire 75 must come through the PCIe-x16 socket**.  It It is possible your motherboard cannot supply that much power through the PCIe socket.





**Does your gtx-1050ti have a 6 pin socket for power?   Those boards do not need all 75 watts from the motherboard as they pull directly from the power supply


Thank you for using HP products and posting to the community.
I am a community volunteer and do not work for HP. If you find
this post useful click the Yes button. If I helped solve your
problem please mark this as a solution so others can find it
HP Recommended

Hey, thank you for the info !!

Just checked, I have the 732240 - 601 model.


I removed the graphics card and attempted to launch with built in graphics and it still attempts to boot and fails.

Any further info you think might help ?? I appreciate your time, seriously.

HP Recommended

Do you hear any beep codes from the motherboard speaker?

Remove both sticks of memory and put one of them in the slot further from the CPU

remove hard drive and only have keyboard connected

Make sure the 4 blue jumpers are in the positions shown below

Reset the CMOS

I assume you got the front panel wired correctly

I corrected the link I posted earlier about the firmware.

Your CPU should be named exactly "i7-4770"




You should hear a beep from the speaker and the LED lights on the keyboard should flash.  If the mouse uses visible light it should also flash.



Look at the motherboard for any swollen capacitors.






Thank you for using HP products and posting to the community.
I am a community volunteer and do not work for HP. If you find
this post useful click the Yes button. If I helped solve your
problem please mark this as a solution so others can find it
HP Recommended

All capacitors look to be in check. All straight standing and not swollen.

I removed the hard drive and tried each ram stick individually in the slot further from CPU.

The 4 jumpers look to be correctly in place. The front panel is correctly wired as well.

With only a keyboard connected it still attempts to boot but just never does

Here's a video of the attempt.



It might be worth noting that sometimes it tries to boot quietly like in the video, and other times it sounds like it overclocks and goes max speed and very loud. Both ending moments after starting.



Also, my mistake about the CPU, I did mean to put i7-4770.

HP Recommended

The memory should be 2Rx8 for 4gb or 8gb  I suspect single rank will not work

https://www.crucial.com/compatible-upgrade-for/hp---compaq/pavilion-500-210qe#memory



If the memory is the correct type then check the CPU socket for damage such as bent pin or heat sink compound.

The CPU should get noticeably warm with no fan.  If you hold your fingers down on it you should feel it get work within 5-6 seconds of turning the power on.



If there are no beep coming out of the speak and all the components look ok then something defective.


Thank you for using HP products and posting to the community.
I am a community volunteer and do not work for HP. If you find
this post useful click the Yes button. If I helped solve your
problem please mark this as a solution so others can find it
