Product: Elitedesk 800 G3
Operating System: Microsoft Windows 10 (64-bit)

Can some one tell me, where to install the second SSD. I can only find the wlan-M.2 port.



Thanks

5 REPLIES 5

‎12-05-2017 04:19 PM

HP Recommended

Hi,





Tower, SFF, Mini ?

HP ENVY 6055, HP Deskjet 1112
HP Envy 17", i7-8550u,16GB, 512GB NVMe, 4K screen, Windows 11 x64
Custom PC - Z690, i9-12900K, 32GB DDR5 5600, dual 512 GB NVMe, gen4 2 TB m.2 SSD, 4K screen, OC'd to 5 Ghz, NVIDIA 3080 10GB
Was this reply helpful? Yes No

‎12-05-2017 04:27 PM

HP Recommended

a normal Tower

Was this reply helpful? Yes No

‎12-05-2017 04:34 PM - edited ‎12-05-2017 04:38 PM

HP Recommended

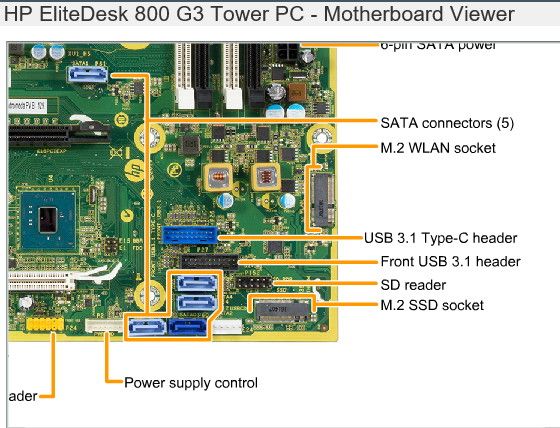

Elite 800 tower m-2 SSD card.jpgElite 800 m-2 location.jpg

HP ENVY 6055, HP Deskjet 1112
HP Envy 17", i7-8550u,16GB, 512GB NVMe, 4K screen, Windows 11 x64
Custom PC - Z690, i9-12900K, 32GB DDR5 5600, dual 512 GB NVMe, gen4 2 TB m.2 SSD, 4K screen, OC'd to 5 Ghz, NVIDIA 3080 10GB
Was this reply helpful? Yes No

‎12-05-2017 04:55 PM

HP Recommended

On this socket  is the SSD of HP.

But there should be a second socket for a M.2 SSD

Was this reply helpful? Yes No

‎12-05-2017 06:01 PM

HP Recommended

There is not a second m.2 SSD socket default motherboard.
