HP Recommended
Pavilion 790
Microsoft Windows 10 (64-bit)

Hi,



I would like to replace the internal 3.5" HDD in my Pavilion 790 desktop. To do that, I need to remove the isolation screws on the pre-installed HDD and put them on my own HDD. Can someone please tell me which screwdriver is needed to do that? I have attached some pics of the screws which were posted earlier by another member.



Thanks!

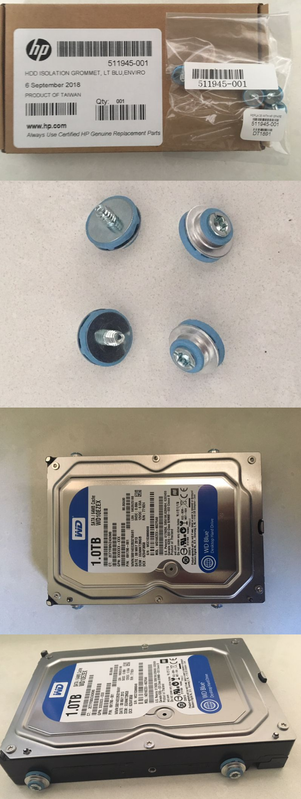

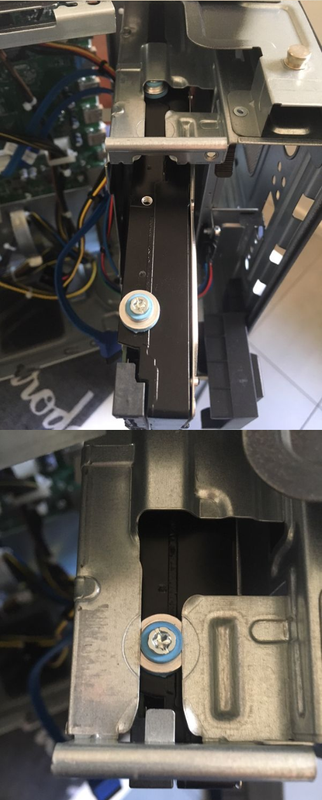

HP Blue Grommet - Pic 1.PNGHP Blue Grommet - Pic 2.PNG

1 ACCEPTED SOLUTION

Accepted Solutions
HP Recommended

That is a Torqx screw.



@Dku

It is a T15 Torqx bit or T15 screwdriver.



You could also use a straight slot screwdriver that has a tip wide and thin enough to easily remove the screw.



I am a volunteer forum member. If my suggestion helped you solve your issue, help others by marking that post as the accepted solution. Say thanks by clicking on the Yes button next to the "was this reply helpful?"



View solution in original post

1 REPLY 1
HP Recommended

That is a Torqx screw.



@Dku

It is a T15 Torqx bit or T15 screwdriver.



You could also use a straight slot screwdriver that has a tip wide and thin enough to easily remove the screw.



I am a volunteer forum member. If my suggestion helped you solve your issue, help others by marking that post as the accepted solution. Say thanks by clicking on the Yes button next to the "was this reply helpful?"
