Does the BIOS support booting from the M.2 SSD? This is a crucial question to help me decide whether to buy an SSD. Since this PC only supports 1 internal 3.5" SATA, this would also be helpful from a reliability viewpoint.

1 ACCEPTED SOLUTION

Accepted Solutions
HP Recommended

@trigeek,



You are welcome.



Kind Regards,



NonSequitur777


View solution in original post

26 REPLIES 26
HP Recommended

yes, if your motherboard have m.2 interface or use  PCIe expansion card.

HP Recommended

The motherboard has a M.2 key M and M.2 key A

HP Recommended

Oops. I just read this thread and it seems like I may have trouble finding the right SSD.

https://h30434.www3.hp.com/t5/Desktop-Hardware-and-Upgrade-Questions/HP-Pavilion-570-p020-adding-M2-...

HP Recommended

@trigeek,



Welcome to our HP User Forum!



Yes, your BIOS does support to use/designate an M.2 NVMe SSD as your primary (boot) drive on your HP Pavilion Desktop - 570-p017c PC (Z5M32AA) as fitted with a Lubin motherboard with SSID: 82F2.



For show-and-tell, please see this HP Pavilion Desktop PC 570-p0XX User who uses a Samsung 970 Evo M.2 NVMe SSD ("System drive"): https://www.userbenchmark.com/UserRun/53264422.



Hope this was helpful.



Kind Regards,



NonSequitur777


HP Recommended

Thanks guys for very quick and helpful replies.

HP Recommended

@trigeek,



You are welcome.



Kind Regards,



NonSequitur777


HP Recommended

That worked beautifully, though the PC would not boot if I disconnected the power to the SATA HDD. I solved that by going to the UEFI boot settings.



A similar question is can I add an M.2 NVM SSD to my old p7-1247c Pavilion desktop. According the specs I found for the motherboard, which is reportedly a Baker, there should be

  • Two M.2 expansion slots (1 x PCIe x16 and 1 x PCIe x1)
    • One M.2 socket 1, Key A
    • One M.2 socket 3, Key M, (2280/2242)

but I don't see M.2 slots. I do see 6 SATA slots and at least 2 PCIE slots. Can I use the latter for the SSD? The SSD would mount vertically in this case, whereas it mounted horizontally on the Pavilion 570.

HP Recommended

@trigeek,



Your HP Desktop PC Pavilion P7-1247C (QW783AAR) can be fitted with up to 4 x 4GB of DDR3 PC3-12800, 1600 MHz, Non-ECC, Unbuffered, DIMM, 240-pin RAM modules.

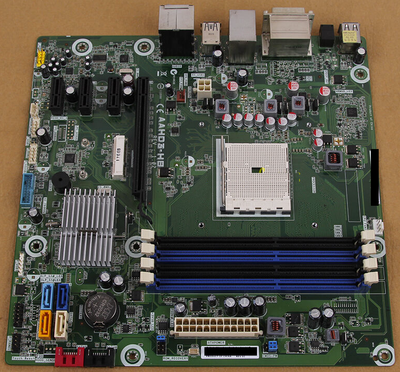

According to: https://partsurfer.hp.com/partsurfer?searchtext=QW783AAR, your desktop is fitted with the Hibiscus, AMD Hudson D3 motherboard, with p/n: 655590-003:






Looks like that this motherboard has four SATA ports, and no M.2 NVMe SSD port.



Kind Regards,



NonSquitru777


HP Recommended

Thanks. That looks like the motherboard but see those 3 PCIE slots in the top left. Can't they be used for PCIE SSDs?
