‎08-18-2020 05:49 PM

HP Recommended
Product: HP Pavilion e9180f
Operating System: Microsoft Windows 10 (64-bit)

I'm having lots of trouble on what this wire is and where it was placed default on the motherboard.

This is an old OEM rig (HP e9180f). It connects with the front 15-mutimedia card reader. Every other wire seems pretty self explantory, I cannot figure out where does this one go. Please help!

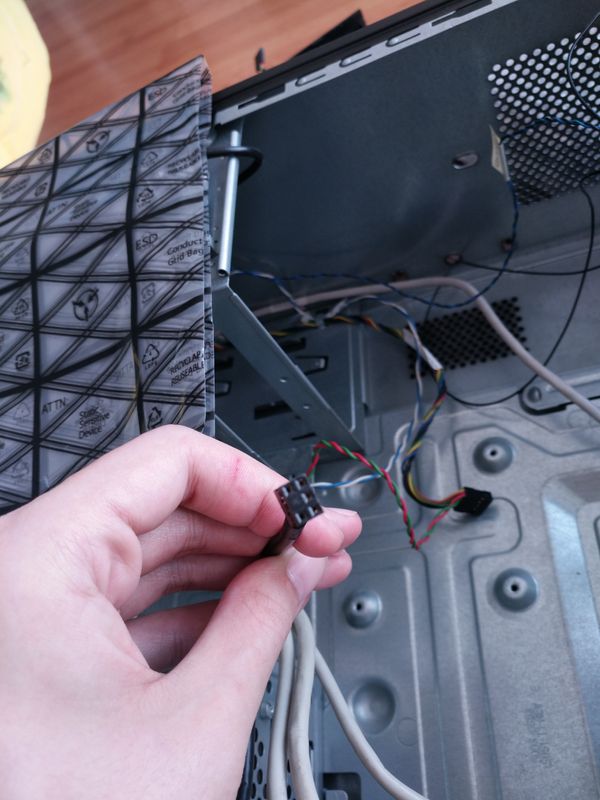

headerheaderdrive connectdrive connect



(the wire is same on both end)

here is the motherboard: The IPMTB-TK (Truckee) motherboard

mobomobo

Please help! Thanks!

1 REPLY 1

‎08-21-2020 02:39 PM

HP Recommended

@Zense6 That could be one of the power connectors: click here to confirm,

Although, does that cable being disconnected cause any malfunction on your device?

Is any part not detected? or is the device not turning on? could you elaborate?



P.S: Welcome to HP Community 😉



Keep us posted,

If you would like to thank us for our efforts to help you,

Give us a virtual high-five by clicking the 'Thumbs Up' icon below, followed by clicking on the "Accept as solution" on this post,

Have a great day!

Riddle_Decipher
I am an HP Employee
