I was wondering if I am able to add a dedicated GPU to my motherboard. The motherboard I have is 84EF01100. Would love to know as soo as possible.

Thanks

5 REPLIES 5
HP Recommended

You have an All-In-One with either Ryzen 5 or 7 and Vega graphics.

https://linux-hardware.org/?view=computers&type=all+in+one&vendor=Hewlett-Packard&model=84EF+01100

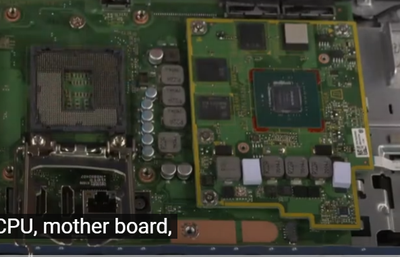

Looking at this image it appears the grp and cpu can be replaced




Please provide the Product ID or Model name for better assistance. Preferably the full product ID including the characters after the # symbol.  If you purchased a motherboard please provide the URL to the item you bought as that number does not provide enough information.


Thank you for using HP products and posting to the community.
I am a community volunteer and do not work for HP. If you find
this post useful click the Yes button. If I helped solve your
problem please mark this as a solution so others can find it
HP Recommended

the Product name is hp pavilion all in one 24 xa0xxx and the product id is 00325-96658-48185-AAOEM

HP Recommended

Unfortunately, those numbers are useless for identifying your system.  That AAOEM is the windows software ID.

The product ID and model are on a sticker or can be obtained from the HP Support assistant






If you have a serial number then go to the below site and look for different GPU options

https://partsurfer.hp.com/partsurfer/



You can run MSINFO and get the model and product ID





Thank you for using HP products and posting to the community.
I am a community volunteer and do not work for HP. If you find
this post useful click the Yes button. If I helped solve your
problem please mark this as a solution so others can find it
HP Recommended

Will this id suffice?

System SKU 4YQ83AA#ABG

HP Recommended

based on 4YQ83AA



You have this system.  I am not sure what that last R is but it might refer to "refurbished" in the below URL.

https://support.hp.com/us-en/product/product-specs/hp-pavilion-all-in-one-pc-24-xa0000i/model/244940...



The above system information did not list the "specification".  I occasionally see that happen, not sure why.



A parts list is here

https://partsurfer.hp.com/partsurfer/?searchtext=4YQ83AA



There are no GPUs listed.

I looked through some of the systems of the series 24-xa0000 and found that the DiamasterFHD motherboard can have the optional

NVIDIA® GeForce® MX130  or the

NVIDIA® GeForce® MX 330



I was unable to find a part number for either of those two boards nor could I find one on eBay.

If you wish to add one of those NVidia boards to your system you need to call HP and talk to someone who know the part number.  It is also possible that you will need cables and other parts not just that NVidia board.   I do not recommend buying that addon board as it is  not listed as an option in any document I could find.

If you find the part number thoough, you can look it up here

https://partsurfer.hp.com/partsurfer/



Your system is supported by cloud recovery




If you ever need to do a factory restore then go here

https://d34z73bbtpzgej.cloudfront.net/






Thank you for using HP products and posting to the community.
I am a community volunteer and do not work for HP. If you find
this post useful click the Yes button. If I helped solve your
problem please mark this as a solution so others can find it
