sata ports not working

[Mohamed_gommaa]

hello All,

it is HP Z420 workstation

i have problem with sata ports the grey both two ports work well ( one for ssd , and one for HDD ) but the four ports -white- not working either for HDD or for DVD

I only want to connect one of them with the DVD. I tried to enable sata from Bios , but stilll not working
i really appreciate any help
thanks.

[BeemerBiker]

I have Z400 so different, but I remember that DVD would not work on certain SATA, had to be AHCI for DVD to work.

The following is recommended settings for HD and DVD (ODD = optical disk drive)

Note that the 4 white ports are SCU, not AHCI

setup manual is here

http://h10032.www1.hp.com/ctg/Manual/c04205252.pdf

[Mohamed_gommaa]

but the windows work with AHCI.
is the white ports different ? can it be the grey work with AHCI and the white work with anything else?
if it is, how can i solve it ? how can change the white to be AHCI
Thanks.

[BeemerBiker]

You have 10 SATA ports.  The ones marked SCU can only support RAID.

Your OS boot disk should be on SATA 0

Connect your optical drive to SATA 2

There are several version of RAID. I am only familiar with  JBOD, Raid-0 and Raid-1

Your bios will have (I am guessing) a configuration page for setting up raid.

If you attach a pair of 2 TB drives to SCU-0 and SCU-1 and select Raid-0 then windows will see (after formatting) a  4 TB drive.

If you want to set up a raid system with several disk drives I suggest you invest in a Synology NAS such as DS218  or DS918 or something newer and not load down your workstation with a lot of drives.

[Mohamed_gommaa]

Can I convert a port sata from scu to AHCi from bios

Thank you

[BeemerBiker]

I do not know of any way to do that, sorry.

What are you trying to do with those 4 ports?

[Brian1965]

Hi all,

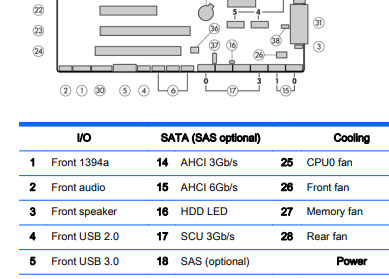

According to page 2 of the HP Z420 Quickspecs the HP Z420 has only 6 SATA ports.

Please note that SCU ports do not support optical drives;

Just to confuse things further, according to the HP Z420 Maintenance and Service Guide;

Please use the existing SATA II/III ports on the motherboard;

Yellow = 2x SATA III ports (6Gb/s)

Red = 4x SATA II ports (3Gb/s)

Blue = 4x SCU ports (3Gb/s)

[Mohamed_gommaa]

I want to connect DVD

is threre any solution else

because the two gray i connect them to ssd - HDD

now i only have those 4 white

[Mohamed_gommaa]

i have only 6 ports ( 2 grey - 4 white )

[BeemerBiker]

Interesting.   I looked on eBay and found a -01 and a  -02 version of the motherboards but   both show 10 ports

https://www.ebay.com/itm/363589360231?epid=1355556411&hash=item54a79d5a67:g:2O0AAOSwygBhcWtN

https://www.ebay.com/itm/144199703550?epid=1058345574&hash=item2192f8dbfe:g:NksAAOSwxJBhP3hC
