HP Prodesk 600 G5 SFF. I want to add a graphics card to display 4 monitors.

[adnerm]

HP Prodesk 600 G5 SFF. I want to add a graphics card to display 4 monitors. Will this work?  TIA

VisionTek Radeon RX 560 4GB GDDR5 4M 4K Graphics Card, 4 Mini DisplayPort, 7.1 Surround Sound, PCI Express, Low-Profile GPU, ATX & SFF - 901278

[NonSequitur777]

@adnerm,

Welcome to our peer-to-peer HP Community Forum!

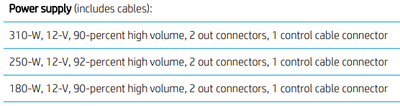

According to the HP ProDesk 600 G5 SFF manual, there are three different power supplies available for your desktop: a 180-watt, 250-watt, and a 310-watt unit:

The graphics card you referenced requires at least a 250-watt power supply, and you'll need a dual 15-pin SATA to PCIe 6-pin power cable adapter if you were to use the 250-watt power supply option, such as this Amazon purchase example.

The 250-watt PSU has p/n: 901760-004, and can be purchased via eBay, such as this purchase example: https://www.ebay.com/itm/364276037341?epid=8015828613&hash=item54d08b36dd:g:HDIAAOSwFJhk3S7G&amdata=....

The 310-watt PSU -which is equipped with 6-pin PCIe power cables and doesn't require the dual 15-pin SATA to 6-pin PCIe power adapter cable, has p/n: 937516-004, and can be purchased via eBay, such as this purchase example: https://www.ebay.com/itm/204530243908?hash=item2f9ef3d944:g:vEQAAOSw7uxlSI8c&amdata=enc%3AAQAIAAAA4E....

Hope this was helpful.

Kind Regards,

NonSequitur777
