compatible docking station

[GrimtheViking]

HP Pavilion 31.5 inch All-in-One Desktop PC 32-b1001na compatible docking station so as to connect 2 extra monitors

[resistencia]

Hi @GrimtheViking

According to the port specifications USB-C ports are not compatible with DisplayPort, you cannot have two extra display, you can only connect via HDMI or DVI-D

Interface (facet)

1 USB Type-A 5Gbps signaling rate; 1 headphone/microphone combo, 1 USB Type-C® 5Gbps signaling rate; 2 USB Type-A 10Gbps signaling rate; 1 USB Type-A 5Gbps signaling rate; 1 RJ-45, 3 HDMI 2.0; 1 DVI-D

[GrimtheViking]

Hi Resistencia, thanks for your reply but I have just been told from HP support that the HP UNIVERSAL DOCK G2 will connect two monitors!! via the USB.

Also just found this review;  HP Pavilion 32" 4K UHD All-In-One Intel Core i5 16GB Memory 1TB SSD Sparkling Black 32-b0254 - Best ...    So not so sure??? Regards.

[resistencia]

If a USB port is not compatible with DisplayPort you can not see image, you must buy a dock compatible with DisplayLink (see that is link and not port) these dock by software and hardware can transmit video over the USB port.

Here is the link where you can search for a dock compatible with this technology.

I suggest you ask the support where are the specifications that indicate that the USB port is compatible with DisplayPort.

DisplayLink Products list | Synaptics

You put now another different model to the subject, that also does not have DisplayPort compatible port.

577D4AA.pdf (hp.com)

[GrimtheViking]

Thanks again for your help with this issue, and I can now see that it was a different model on Bestbuy..

I am waiting for Hp support to come back to me, Again... Best Regards.

[banhien]

@GrimtheViking

Its specs

           https://www.hp.com/gb-en/shop/product.aspx?id=7n605ea&opt=abu&sel=dtp#technical-details

It ONLY has (no video out port):

Side:

1 USB Type-A 5Gbps signaling rate
1 headphone/microphone combo

Rear:

1 USB Type-C® 5Gbps signaling rate
2 USB Type-A 10Gbps signaling rate
1 USB Type-A 5Gbps signaling rate
1 RJ-45

You can use USB-A docks to connect to 2 external monitors if you wish

              https://support.hp.com/au-en/document/c05357751

I bought a similar dock on eBay (for A$70) another day and NO complaint

Regards.

[resistencia]

Hi @banhien

According Product Content Browser , it has 3 HDMI, this allows to use 3 monitors

HP Pavilion 32-b1001na 4K All-in-One – Core™ i7 with NVIDIA® GeForce® GTX 1650 - HP Store UK

[banhien]

@GrimtheViking

Well, as @resistencia  pointed out : with 3 extra HDMI ports you should be able to connect to more monitors. Do you need 5 external monitors ?

Regards.

[GrimtheViking]

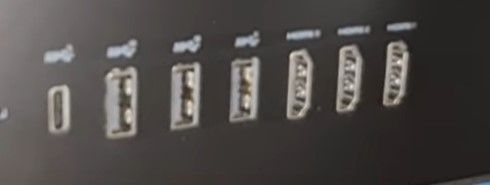

All 3 HDMI ports are in-ports, none of them are output ports...... This is is my problem. And that link you have posted is dead.

[GrimtheViking]

Have you got another link for the one purchased and in use, that link n Hp is dead.
