Can't connect to the 5GHZ network

HP Recommended
Omen 880-182d
Microsoft Windows 10 (64-bit)

I recently bought an Omen gaming desktop but I can't connect to the 5GHZ network even though all my other devices could...



I checked that my network card is Realtek  RTL8822BE 802.11Ac PCEe adapter, so should be able to connect to 5ghz network..



Tried everything but still couldn't connect...and it's a new desktop...



10 REPLIES 10
Lil_Boy_Blue
Level 12
7,692 7,654 332 701
Message 2 of 11
Flag Post
HP Recommended

Hi

Can we try and prove that it is installed and working please.



Copy, Paste and Save in Notepad, as LBB.bat and double click to run.
Post anything non-personal, but relevant please.

@ECHO OFF
getmac
systeminfo
PAUSE
PowerShell -Command "Get-NetAdapter"
PowerShell -Command "Get-NetAdapter -Name * | Format-Table -View Driver"

PAUSE
PowerShell -Command "GIP -Detailed"
PowerShell -Command "Test-NetConnection"

PAUSE
0 Kudos
Edmund123
Author
New member
6 5 0 0
Message 3 of 11
Flag Post
HP Recommended


0 Kudos
Lil_Boy_Blue
Level 12
7,692 7,654 332 701
Message 4 of 11
Flag Post
HP Recommended

Hi



It takes hours for pictures to be approved.



So any copy and paste possibility?





0 Kudos
Edmund123
Author
New member
6 5 0 0
Message 5 of 11
Flag Post
HP Recommended

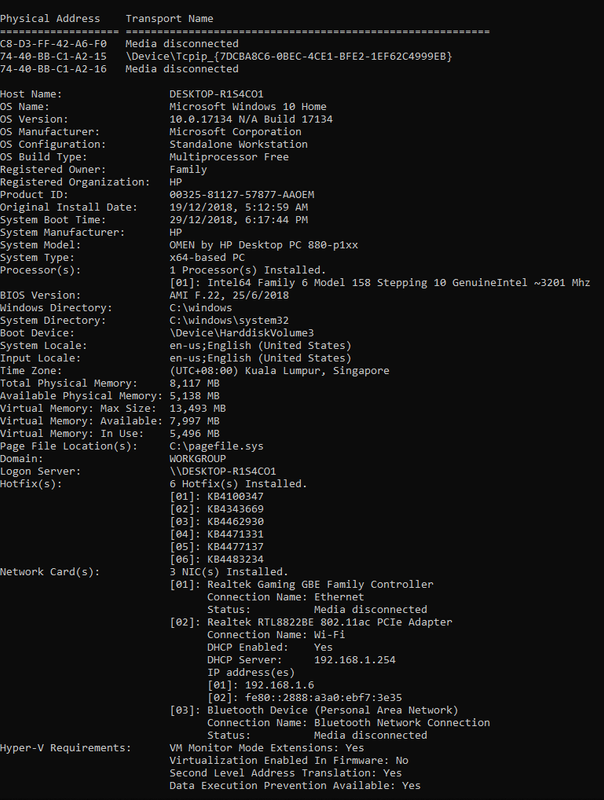

Physical Address Transport Name
=================== ==========================================================
C8-D3-FF-42-A6-F0 Media disconnected
74-40-BB-C1-A2-15 \Device\Tcpip_{7DCBA8C6-0BEC-4CE1-BFE2-1EF62C4999EB}
74-40-BB-C1-A2-16 Media disconnected

Host Name: DESKTOP-R1S4CO1
OS Name: Microsoft Windows 10 Home
OS Version: 10.0.17134 N/A Build 17134
OS Manufacturer: Microsoft Corporation
OS Configuration: Standalone Workstation
OS Build Type: Multiprocessor Free
Registered Owner: Family
Registered Organization: HP
Product ID: 00325-81127-57877-AAOEM
Original Install Date: 19/12/2018, 5:12:59 AM
System Boot Time: 29/12/2018, 6:17:44 PM
System Manufacturer: HP
System Model: OMEN by HP Desktop PC 880-p1xx
System Type: x64-based PC
Processor(s): 1 Processor(s) Installed.
[01]: Intel64 Family 6 Model 158 Stepping 10 GenuineIntel ~3201 Mhz
BIOS Version: AMI F.22, 25/6/2018
Windows Directory: C:\windows
System Directory: C:\windows\system32
Boot Device: \Device\HarddiskVolume3
System Locale: en-us;English (United States)
Input Locale: en-us;English (United States)
Time Zone: (UTC+08:00) Kuala Lumpur, Singapore
Total Physical Memory: 8,117 MB
Available Physical Memory: 5,138 MB
Virtual Memory: Max Size: 13,493 MB
Virtual Memory: Available: 7,997 MB
Virtual Memory: In Use: 5,496 MB
Page File Location(s): C:\pagefile.sys
Domain: WORKGROUP
Logon Server: \\DESKTOP-R1S4CO1
Hotfix(s): 6 Hotfix(s) Installed.
[01]: KB4100347
[02]: KB4343669
[03]: KB4462930
[04]: KB4471331
[05]: KB4477137
[06]: KB4483234
Network Card(s): 3 NIC(s) Installed.
[01]: Realtek Gaming GBE Family Controller
Connection Name: Ethernet
Status: Media disconnected
[02]: Realtek RTL8822BE 802.11ac PCIe Adapter
Connection Name: Wi-Fi
DHCP Enabled: Yes
DHCP Server: 192.168.1.254
IP address(es)
[01]: 192.168.1.6
[02]: fe80::2888:a3a0:ebf7:3e35
[03]: Bluetooth Device (Personal Area Network)
Connection Name: Bluetooth Network Connection
Status: Media disconnected
Hyper-V Requirements: VM Monitor Mode Extensions: Yes
Virtualization Enabled In Firmware: No
Second Level Address Translation: Yes
Data Execution Prevention Available: Yes

0 Kudos
Lil_Boy_Blue
Level 12
7,692 7,654 332 701
Message 6 of 11
Flag Post
HP Recommended

Hi

So...

Realtek RTL8822BE 802.11ac PCIe Adapter
Connection Name: Wi-Fi
DHCP Enabled: Yes
DHCP Server: 192.168.1.254
IP address(es)
[01]: 192.168.1.6



I get tons more info, like...

Name                      InterfaceDescription                    ifIndex Status       MacAddress             LinkSpeed
----                      --------------------                    ------- ------       ----------             ---------
WiFi                      Realtek RTL8723BE 802.11 bgn Wi-Fi A...      23 Up           48-48-48-48-48-27      72.2 Mbps
Ethernet                  Realtek PCIe FE Family Controller             7 Disconnected B0-5A-DA-DE-84-28          0 bps

Name                      InterfaceDescription                     DriverFileName  DriverDate DriverVersion NdisVersion
----                      --------------------                     --------------  ---------- ------------- -----------
WiFi                      Realtek RTL8723BE 802.11 bgn Wi-Fi Ad... rtwlane.sys     2018-02-24 2023.66.11... 6.70
Ethernet                  Realtek PCIe FE Family Controller        rt640x64.sys    2015-05-05 10.1.505.2015 6.40



There is 1 interface on the system:

    Name                   : WiFi
    Description            : Realtek RTL8723BE 802.11 bgn Wi-Fi Adapter
       Physical address       : 48:48:48:48:48:27
    State                  : connected
    SSID                   : WhiffyOne
    BSSID                  :
    Network type           : Infrastructure
    Radio type             : 802.11n
    Authentication         : WPA2-Personal
    Cipher                 : CCMP
    Connection mode        : Auto Connect
    Channel                : 6
    Receive rate (Mbps)    : 72.2
    Transmit rate (Mbps)   : 72.2
    Signal                 : 84%
    Profile                : Whiiffy1



So can you ping the Router etc?

Ping 127.0.0.1

Ping 192.168.1.1

Ping  bbc.co.uk



https://inssider.en.softonic.com/

WiFi Interference.png

0 Kudos
Edmund123
Author
New member
6 5 0 0
Message 7 of 11
Flag Post
HP Recommended

C:\Users\Family>ping 127.0.0.1

Pinging 127.0.0.1 with 32 bytes of data:
Reply from 127.0.0.1: bytes=32 time<1ms TTL=128
Reply from 127.0.0.1: bytes=32 time<1ms TTL=128
Reply from 127.0.0.1: bytes=32 time<1ms TTL=128
Reply from 127.0.0.1: bytes=32 time<1ms TTL=128

Ping statistics for 127.0.0.1:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 0ms, Maximum = 0ms, Average = 0ms

C:\Users\Family>ping 192.168.1.1

Pinging 192.168.1.1 with 32 bytes of data:
Reply from 192.168.1.6: Destination host unreachable.
Reply from 192.168.1.6: Destination host unreachable.
Request timed out.
Request timed out.

Ping statistics for 192.168.1.1:
Packets: Sent = 4, Received = 2, Lost = 2 (50% loss),

C:\Users\Family>ping bbc.co.uk

Pinging bbc.co.uk [151.101.0.81] with 32 bytes of data:
Request timed out.
Reply from 151.101.0.81: bytes=32 time=2822ms TTL=51
Reply from 151.101.0.81: bytes=32 time=2566ms TTL=51
Reply from 151.101.0.81: bytes=32 time=2575ms TTL=51

Ping statistics for 151.101.0.81:
Packets: Sent = 4, Received = 3, Lost = 1 (25% loss),
Approximate round trip times in milli-seconds:
Minimum = 2566ms, Maximum = 2822ms, Average = 2654ms

0 Kudos
Lil_Boy_Blue
Level 12
7,692 7,654 332 701
Message 8 of 11
Flag Post
HP Recommended

Hi

So 127.0.0.1 is usually the adapter itself, 100%

The ISP Router gateway 50%

Outside world 25%



Remove the adapter from Device Manager and re-install, and maybe it will improve.

Perhaps you are being swamped by another local stronger signal.



Flow Chart Adapters.png

Probably useless, but the piccy may give an idea as to what to try, like changing the channel.

0 Kudos
Edmund123
Author
New member
6 5 0 0
Message 9 of 11
Flag Post
HP Recommended

I realise I can see some 5G networks from other people's router, but just not mine.



I really don't know why this is happening when all my other devices can connect. Is it a fault from the wifi adapter?

0 Kudos
Lil_Boy_Blue
Level 12
7,692 7,654 332 701
Message 10 of 11
Flag Post
HP Recommended

Hi

So has your 5 gigahertz got a name that it is broadcasting in the clear?





0 Kudos
