HP EliteDesk 800 G2 SFF Se puede instalar este tipo de tarjeta de wifi y bluetooth Intel AX210 --

HP Recommended
HP EliteDesk 800 G2 SFF
Microsoft Windows 10 (64-bit)

Hola todos

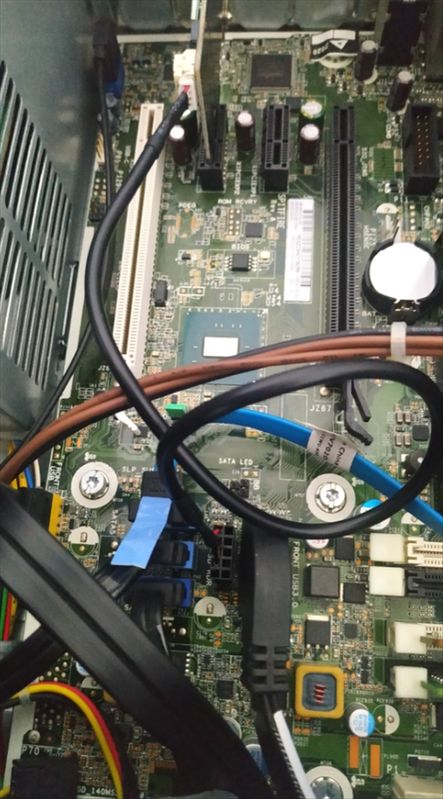

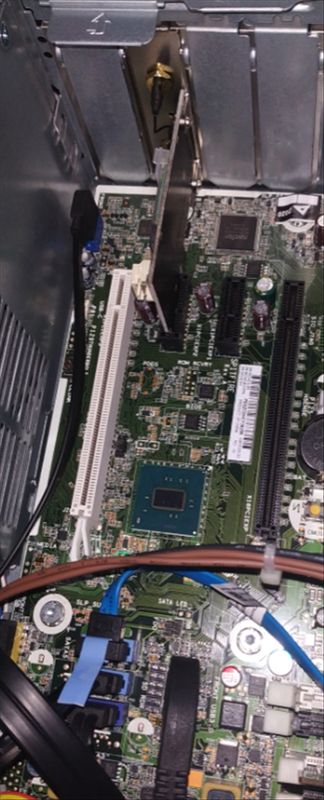

Espero que puedan ayudarme Tengo un HP EliteDesk 800 G2 SFF Me gustaría instalar una tarjeta wifi Intel AX210 pero me pide un puerto usb de 9 pines Noté que hay un puerto sd-rdr libre en la placa base mi pregunta es si puedes instalarlo allí o si tienen otra forma de instalarlo .

Hello everyone

Hope you can help me I have an HP EliteDesk 800 G2 SFF I would like to install an Intel AX210 wifi card but it asks for a 9 pin usb port I noticed there is a free sd-rdr port on the motherboard my question is if you can install it there or if they have another way to install it




https://drive.google.com/file/d/1S8ff_lZwhAqMTY7GfKMeB1YJSSlrAwjK/view?usp=sharing



https://drive.google.com/file/d/1ugmg5t1JRT8aLHUTGDNvXcJH0MpQQBml/view?usp=sharing



https://www.aliexpress.com/item/1005002071670341.html?spm=a2g0s.9042311.0.0.561563c0o3q4tU

6 REPLIES 6
Paul_Tikkanen
Level 21
Level 21
130,910 121,087 19,874 30,402
Message 2 of 7
Flag Post
HP Recommended

Hi:



If the SD card reader port has 9 pins, it should work because the SD card reader is USB powered.



Note that the USB connection is only needed to work the Bluetooth, not the wifi.



wolfcka
Author
Level 2
4 3 1 2
Message 3 of 7
Flag Post
HP Recommended

I have seen that it has 11 pins since it is for sd rdr card but it seems that it can enter the 9 pins that are the normal ones since I have noticed that the usb devices of the hp boards have 11 pins


Reply
0 Kudos
Paul_Tikkanen
Level 21
Level 21
130,910 121,087 19,874 30,402
Message 4 of 7
Flag Post
HP Recommended

Yes, that will work just fine.



You leave the two pins on the right side of your picture showing.



I did the same thing with a similar wifi adapter on a Dell PC that had one of those 11 pin ports, and the Bluetooth worked fine.

wolfcka
Author
Level 2
4 3 1 2
Message 5 of 7
Flag Post
HP Recommended

When they bring it I will try it, and I will put photos thanks for the help

Reply
0 Kudos
Paul_Tikkanen
Level 21
Level 21
130,910 121,087 19,874 30,402
Message 6 of 7
Flag Post
HP Recommended

You're very welcome.
