The HP Community is where owners of HP products, like you, volunteer to help each other find solutions.
Archived This topic has been archived. Information and links in this thread may no longer be available or relevant. If you have a question create a new topic by clicking here and select the appropriate board.

‎06-25-2013 07:53 AM

HP Recommended

My card reader wasn't working, so I opened up the workstation and found the cable is still wrapped and in plastic.  Where should I plug it in?



Thanks - Bob

Thanks,
Bob
1 ACCEPTED SOLUTION

Accepted Solutions

‎06-25-2013 08:15 AM - edited ‎06-25-2013 08:46 AM

HP Recommended

Bob,



The card reader should be USB based and should plug in to any open USB 2.0 port on the motherboard;

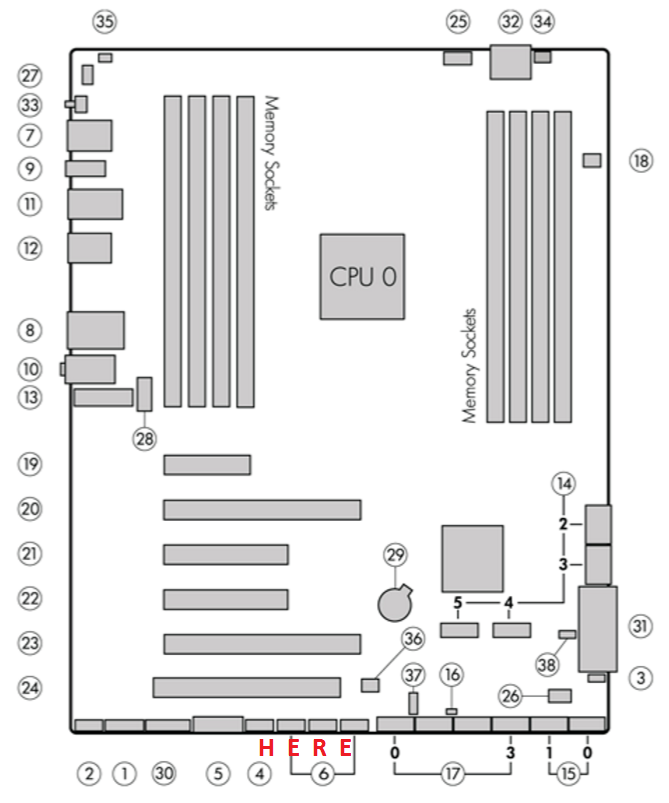

#4 and 3 X #6 are the USB 2.0 ports (the word "HERE" is directly below the ports in this image)



Please send KUDOs

Frank

***** Please click the "White Kudos" Thumbs Up to say THANKS for helping *****
***** Please click the "Accept As Solution" on my post, if my help solved your issue *****
***** This is a user supported forum. I am a volunteer and I don't work for HP *****

HP a1632x - Windows 7, 4GB RAM, AMD Radeon HD 6450
HP p6130y - Windows 7, 8GB RAM, AMD Radeon HD 6450
HP p6320y - Windows 7, 8GB RAM, NVIDIA GT 240
HP p7-1026 - Windows 7, 6GB RAM, AMD Radeon HD 6450
HP p6787c - Windows 7, 8GB RAM, NVIDIA GT 240
HP ENVY x360 m6-w103dx - Windows 10, 8GB RAM, Intel HD 520

View solution in original post

5 REPLIES 5

‎06-25-2013 08:14 AM

HP Recommended

On page 29 of this document: http://bizsupport2.austin.hp.com/bc/docs/support/SupportManual/c03678225/c03678225.pdf

It says item #4 is the front USB terminal, which would be the typical use for the card reader



I'm not an HP employee.
Did this message answer your question? Please indicate below as an Accepted Solution!
Did you find this message useful? Click on the "Was this reply helpful" Yes button.

‎06-25-2013 08:14 AM

HP Recommended

Hi, Bob:



You may also want to post your question in the HP Business Support Forum -- Z Workstations section.



http://h30499.www3.hp.com/t5/Workstations-z-series-xw-series/bd-p/bsc-272



Paul

‎06-25-2013 08:15 AM - edited ‎06-25-2013 08:46 AM

HP Recommended

Bob,



The card reader should be USB based and should plug in to any open USB 2.0 port on the motherboard;




#4 and 3 X #6 are the USB 2.0 ports (the word "HERE" is directly below the ports in this image)



Please send KUDOs

Frank

***** Please click the "White Kudos" Thumbs Up to say THANKS for helping *****
***** Please click the "Accept As Solution" on my post, if my help solved your issue *****
***** This is a user supported forum. I am a volunteer and I don't work for HP *****

HP a1632x - Windows 7, 4GB RAM, AMD Radeon HD 6450
HP p6130y - Windows 7, 8GB RAM, AMD Radeon HD 6450
HP p6320y - Windows 7, 8GB RAM, NVIDIA GT 240
HP p7-1026 - Windows 7, 6GB RAM, AMD Radeon HD 6450
HP p6787c - Windows 7, 8GB RAM, NVIDIA GT 240
HP ENVY x360 m6-w103dx - Windows 10, 8GB RAM, Intel HD 520

‎06-27-2013 07:44 AM

HP Recommended

Thank Frank, I used one of the #6 ports.

Thanks,
Bob

‎06-27-2013 07:45 AM

HP Recommended

Thanks for the reply.  I ended up using one of the open #6 connectors.

Thanks,
Bob
