Motherboard Able to Transfer to New Case?

HP Recommended
HP Pavilion Gaming Desktop 790-00xx
Microsoft Windows 10 (64-bit)

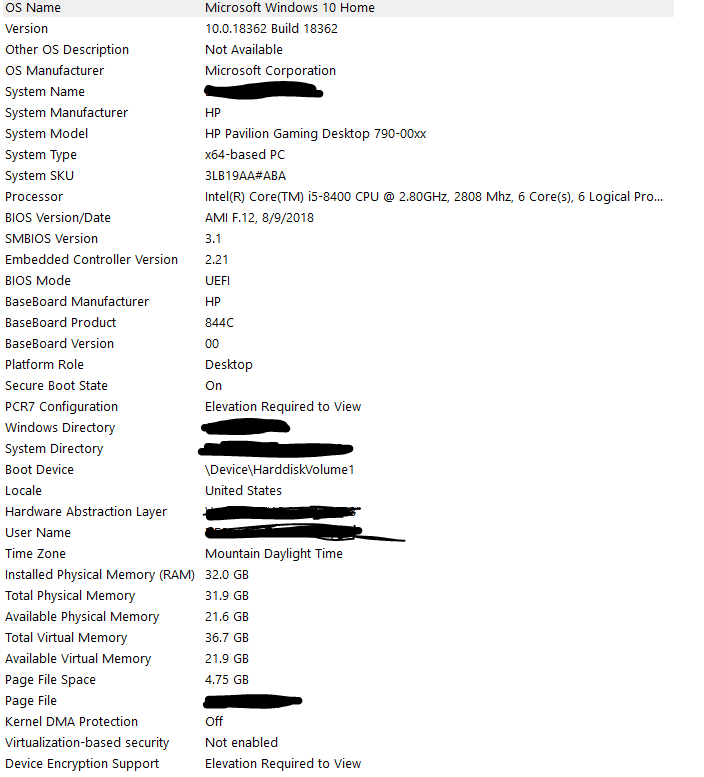

Wanting to now if my motherboard can be extracted to another case or if it needs to be replaced. This all stems from me looking to upgrade my GFX Card (1050 Ti), which would most likely require a PSU that is larger than the 500w proprietary option that is available to me. Thus, looking into the option of upgrading the case to fit in an aftermarket PSU that would support a higher end GFX card. See image of specs attached...




1 ACCEPTED SOLUTION

Accepted Solutions
wb2001
Level 15
Level 15
12,842 12,635 1,773 5,013
Message 4 of 4
Flag Post
HP Recommended

@egw2489,

Regardless of a case conversion, you can not adapt the motherboard to accept an ATX PSU. Do you have the knowledge needed to re-wire the power switch of a new case?  HP has a non-standard wiring scheme. BOOM.  Can you create a backplane to mate with the motherboard?   Think machine shop.

Your computer will only accept the HP proprietary PSU. The 2x2 motherboard power plugs do not have an adapter kit.

You were told this in a previous posting., in a different sub-forum. There is no hack that will fix this issue.

https://h30434.www3.hp.com/t5/Desktop-Hardware-and-Upgrade-Questions/HP-Pavilion-709-00xx-Upgrade-GF...

This system is feedback driven thru Solution and Kudo flags. It's the only means of knowing if you have been served. Please click Accept as Solution, if your problem is solved. To say THANK YOU, press the "thumbs up symbol" to render a KUDO. You can render both Solution and KUDO..

HP Envy 8 5010 Tablet
(2) HP DV7t i7 3160QM 2.3Ghz 8GB
Printer -- HP OfficeJet Pro 8620 Legal
Custom Asus Z97D, I7-4790k, 16GB RAM, WIN10 Pro 64bit, ZOTAC GTX1080 AMP Extreme 3 fan 8GB RAM, 500GB SSD, Asus PB287 4k monitor, Rosewill Blackhawk case and 750W OCZ PSU.

View solution in original post

3 REPLIES 3
banhien
Level 19
Level 19
92,721 92,599 11,984 25,547
Message 2 of 4
Flag Post
HP Recommended

@egw2489



Your machine is an HP Pavilion 790-0031, it specs



             https://support.hp.com/au-en/document/c06017031



Its motherboard use standard Form factor: ATX, 36.45 x 24.88 cm (15.35 x 9.79 in) therefore it should physical fit to all standard ATX cases.



Regards.

BH
***
**Click the KUDOS thumb up on the left to say 'Thanks'**
Make it easier for other people to find solutions by marking a Reply 'Accept as Solution' if it solves your problem.



egw2489
Author
New member
6 4 0 0
Message 3 of 4
Flag Post
HP Recommended

Banhien,


Thank you for your speedy reply, great news about ATX form factor. I do have another question, will the motherboard support an after market PSU? Looking to get a PSU that is 650w, specifically the following:



CORSAIR TX-M Series TX650M CP-9020132-NA 650W ATX12V v2.4 / EPS 2.92 80 PLUS GOLD Certified Semi-Modular Active PFC Power Supply

0 Kudos
wb2001
Level 15
Level 15
12,842 12,635 1,773 5,013
Message 4 of 4
Flag Post
HP Recommended

@egw2489,

Regardless of a case conversion, you can not adapt the motherboard to accept an ATX PSU. Do you have the knowledge needed to re-wire the power switch of a new case?  HP has a non-standard wiring scheme. BOOM.  Can you create a backplane to mate with the motherboard?   Think machine shop.

Your computer will only accept the HP proprietary PSU. The 2x2 motherboard power plugs do not have an adapter kit.

You were told this in a previous posting., in a different sub-forum. There is no hack that will fix this issue.

https://h30434.www3.hp.com/t5/Desktop-Hardware-and-Upgrade-Questions/HP-Pavilion-709-00xx-Upgrade-GF...

This system is feedback driven thru Solution and Kudo flags. It's the only means of knowing if you have been served. Please click Accept as Solution, if your problem is solved. To say THANK YOU, press the "thumbs up symbol" to render a KUDO. You can render both Solution and KUDO..

HP Envy 8 5010 Tablet
(2) HP DV7t i7 3160QM 2.3Ghz 8GB
Printer -- HP OfficeJet Pro 8620 Legal
Custom Asus Z97D, I7-4790k, 16GB RAM, WIN10 Pro 64bit, ZOTAC GTX1080 AMP Extreme 3 fan 8GB RAM, 500GB SSD, Asus PB287 4k monitor, Rosewill Blackhawk case and 750W OCZ PSU.

View solution in original post
