‎03-17-2023 07:02 AM

HP Recommended

ya

that's what I meant above! enough to see the other models of the list in the series given previously

provided you have the right power supply

OMEN by HP 880-020t Desktop PC CTO Product Specifications and Configurable Options


Must select one of the following options:
  • 8 GB (2x4 GB) DDR4 PC4-19200
  • 12 GB (8 GB + 4 GB) DDR4 PC4-19200
  • 16 GB (2x8 GB) DDR4 PC4-19200
  • 32 GB (4x8 GB) DDR4 PC4-19200



Must select one of the following options:
  • Intel Core i5-7400 (Kabylake) (65 W) 3.0 GHz
  • Intel Core i5-7600K (Kabylake) (91 W) 3.8 GHz
  • Intel Core i7-7700 (Kabylake) (65 W) 3.6 GHz
  • Intel Core i7-7700K (Kabylake) (91 W) 4.2 GHz

Must select one of the following options:
  • 512 GB M.2 PCIe NVMe TLC Solid State
  • 1 TB 7200 rpm HDD (3.5 in)
  • 256 GB M.2 PCIe NVMe Solid State + 1 TB 7200 rpm HDD (3.5 in)
  • 256 GB M.2 PCIe NVMe Solid State + 2 TB 7200 rpm HDD (3.5 in)
  • 512 GB M.2 PCIe NVMe Solid State + 2 TB 7200 rpm HDD (3.5 in)




Must select one of the following options:
  • NVIDIA GeForce GTX 1060 (3 GB) (GDDR5)
  • NVIDIA GeForce GTX 1070 (8 GB) (GDDR5)
  • Dual NVIDIA GeForce GTX 1070 SLI (8 GB) (GDDR5)
  • NVIDIA GeForce GTX 1080 (8 GB) (GDDR5X)
  • Dual NVIDIA GeForce GTX 1080 SLI (8 GB) (GDDR5X)
  • NVIDIA GeForce GTX 1080Ti (11 GB) (GDDR5X)
  • AMD Radeon RX 580 (4 GB) (GDDR5)
  • Dual AMD Radeon RX 580 Crossfire (4 GB) (GDDR5)



Must select one of the following options:
  • 500 W
  • 750 W



--------------------------------------------- Signature ---------------------------------------------
was this reply helpful , or just say thank you ? Click on the yes button

Please remember to mark the answers this can help other users
please click on the accept as solution button if message provided an answer to the problem




Desktop-Knowledge-Base
Windows 11 22h2 inside , user

------------------------------------------------------------------------------------------------------------
Was this reply helpful? Yes No

‎03-17-2023 12:26 PM

HP Recommended

Hi @Prométhée



Do you get x16 on the top graphics card PCIe slot?



It would be good to know if HP has limited this slot to x8.

Was this reply helpful? Yes No

‎03-18-2023 07:31 AM - edited ‎03-18-2023 07:56 AM

HP Recommended

Hi



@Jadexvi8 , @Prométhée



Still curious to know if the Tampa and Tampa2 MBs run at x16 with one graphics card installed in the top x16 slot?



It would be great if someone would download and run GPU-Z



Please post the results for informational purposes. Everyone works together to help folks solve problems.



This is what I like about this forum

Was this reply helpful? Yes No

‎03-18-2023 10:11 AM

HP Recommended

that was not clear, sorry..
I had already seen with cpu-z

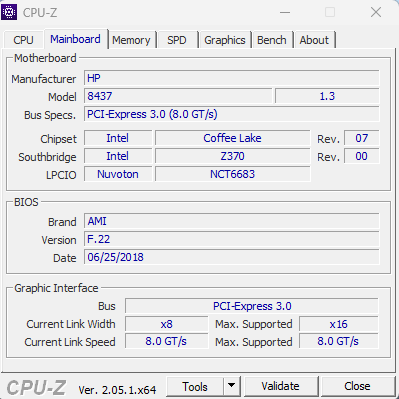

Capture d’écran 2023-03-18 170901.png

--------------------------------------------- Signature ---------------------------------------------
was this reply helpful , or just say thank you ? Click on the yes button

Please remember to mark the answers this can help other users
please click on the accept as solution button if message provided an answer to the problem




Desktop-Knowledge-Base
Windows 11 22h2 inside , user

------------------------------------------------------------------------------------------------------------
1 person found this reply helpful
Was this reply helpful? Yes No

‎03-18-2023 05:45 PM

HP Recommended

Hi @Prométhée



Thanks.



I see current link width is x8 vs supported link width of x16. Thought I had seen something stating the Tampa boards had this anomaly.



This seems to confirm the x16 slot is wired for x8 if you only have one graphics card installed in the MB.

Was this reply helpful? Yes No
