Re: What is the extra SSD2 slot on my Obelisk motherboard & can it be used?

omen obelisk 875-1040st
Microsoft Windows 10 (64-bit)

Hi @Photoray002



Thank you. I have the same question with this desktop as @Coffee2222. I went ahead and marked the two slots with blue boxes:IMG-1026.jpg



The SSD1 slot came with an Intel Optane which I replaced with a 1TB NVMe SSD and installed Linux, which works perfectly.



The SSD2 slot has a foam pad sticking to the main board inside the black cover. Can I remove this pad and install another NVMe SSD on it? Is it possible to install MS Windows and make the desktop dual boot?



If SSD2 cannot host a drive with OS, can I put a 2.5" SSD (with mounting bracket) into one of the two 3.5" hard drive bays (right side of SSD1, behind the case front panel) and install Windows for dual boot?



Thank you!

15 REPLIES 15
Level 15
Level 15
11,083 10,894 1,121 3,234
Message 2 of 16
781
Flag Post
HP Recommended

Re: What is the extra SSD2 slot on my Obelisk motherboard & can it be used?

Hello @Duiyi19

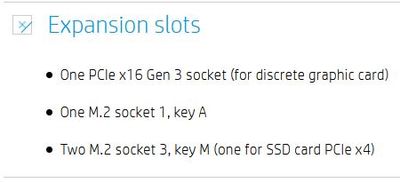

The specs show one slot is designated as PCIe 3x4, so it makes me suspicious that the other slot is sharing a couple of lanes for Sata perhaps? HP doesn't make it clear with their wording. 😡

m.2 slots.JPG



So I don't know if it will run full speed or not as I have not had anyone report back on any speed tests, etc. (I don't have access to that model).  But with prices as they are currently, you can get either an x2 or x4 stick for roughly the same price now days so I wouldn't worry about cost.

NOTE: PLEASE do me a favor and test that slot and let me know how it holds up for speed. Use Crystal Disk Mark.



Yes you can also install Sata SSDs into the HDD cage. You will need an adapter 3.5 to 2.5 inch, to fit it with. There are many available and most of them all work.



I would assume you could boot from it, I see no reason it couldn't.

You would have to check with the guys on their forums for what ever flavor of Linux you use about dual booting. I know most flavors want Windows installed first.







Duiyi19
Level 1
6 5 0 1
Message 3 of 16
766
Flag Post
HP Recommended

Re: What is the extra SSD2 slot on my Obelisk motherboard & can it be used?

Hi @Photoray002,



Thank you. I haven't got a 2nd NVMe yet but was wondering about the possibility, since I'm not sure if the foam pad under SSD2 cover pasted to the main board is an indication of "Do not use me" XD. If I decide to go for one I'll definitely report a speed test here.



So I guess the only catch is that this SSD2 may not have full PCIe speed as the SSD1slot, but still can host one NVMe drive with Windows installed right?



For the order of OS installation, yes, I do see some articles online that recommend doing Windows first. Not sure if the Windows drive has to be in SSD1 slot though.

Reply
0 Kudos
Level 15
Level 15
11,083 10,894 1,121 3,234
Message 4 of 16
760
Flag Post
HP Recommended

Re: What is the extra SSD2 slot on my Obelisk motherboard & can it be used?

I would put the Windows install in the first slot that you have working now and you will know its working at 3x4 speed.



For the slot with the cover, just take it off now and make sure the M.2 port is soldered to the board. Then you'll know its there.

Reply
0 Kudos
labrota
Level 1
10 8 0 1
Message 5 of 16
647
Flag Post
HP Recommended

Re: What is the extra SSD2 slot on my Obelisk motherboard & can it be used?



Do you have any further progress on this dual system?

Can I install Linus in HDD while install Linux at M2 SSD?



I also want to ask about steps how did you install linux? I didn't find drivers for linux for hp obelisk 875 10xx.

Work on obelisk 875-1055xt/ 3UQ93AA#ABA
Reply
0 Kudos
Duiyi19
Level 1
6 5 0 1
Message 6 of 16
635
Flag Post
HP Recommended

Re: What is the extra SSD2 slot on my Obelisk motherboard & can it be used?

I haven't tried dual boot yet. My machine only has Linux on the main m.2 ssd since that's where I mainly work on.



It seems Linux (I'm using Mint 19, but I think the latest Ubuntu would be the same) has all drivers and everything works out of box, except a small glitch that the machine stalls when I try to shut down or reboot it, so I have to manually turn it off and then back on.

Reply
0 Kudos
labrota
Level 1
10 8 0 1
Message 7 of 16
501
Flag Post
HP Recommended

Re: What is the extra SSD2 slot on my Obelisk motherboard & can it be used?

BTW, how did you completely remove the side glass?

Work on obelisk 875-1055xt/ 3UQ93AA#ABA
Reply
0 Kudos
Duiyi19
Level 1
6 5 0 1
Message 8 of 16
492
Flag Post
HP Recommended

Re: What is the extra SSD2 slot on my Obelisk motherboard & can it be used?

I did. There is a big button on the back. Push it and the side glass comes off completely.

Reply
0 Kudos
Badr_alharbi
Level 2
19 14 1 3
Message 9 of 16
396
Flag Post
HP Recommended

Re: What is the extra SSD2 slot on my Obelisk motherboard & can it be used?

what did you do about The SSD2 slot has a foam pad sticking to the main board inside the black cover?

I install the ssd up the pad and it work find but I afraid is wrong.

Reply
0 Kudos
labrota
Level 1
10 8 0 1
Message 10 of 16
378
Flag Post
HP Recommended

Re: What is the extra SSD2 slot on my Obelisk motherboard & can it be used?

I think it works.

What do you mean and where is something wrong?

Work on obelisk 875-1055xt/ 3UQ93AA#ABA
Reply
0 Kudos
