What are these headers?

[SalemZarou]

 

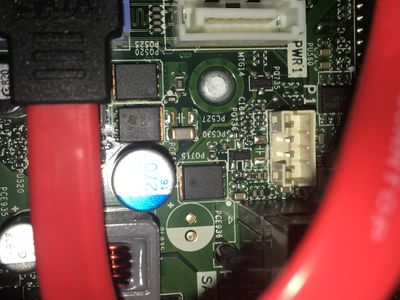

I know the one on the bottom right is for the led front bezel. The other is label sata power1 (p162). I’m trying to find a sata power cable that will fit in this header and haven’t been able to find one. It’s the exact same as the led header. I’ve asked on Reddit and people say it’s a 4 pin pwm case fan header but it’s not. Any insight would be appreciated. Happy holidays!

[Paul_Tikkanen]

Hi:

Happy Holidays to you too!

Below is the link to the parts list for your PC.

HP PartSurfer

You need this part number and description:

L68308-001

Cable - Pwr(2*2) to SATA(15p)ST,200+80mm,BL,Ro2

If you also need the data cable, this is the part number for that item:

L71951-001

Hard Drive - ASSY,190mm,SATA DATA,ST-RA, Gray,Ro2 RF

You can find these parts on eBay.

Search by the HP part number.

L68308-001 for sale | eBay

L71951-001 for sale | eBay

[SalemZarou]

Thanks for the reply. Unfortunately, this is not the cable I'm looking for. I already have the 2*2 sata power cable connected to two drives. I'm looking for that small four pin sata power connector that is similar to a 4 pin PWM. I've seen that some people have it labeled as an ODD header on their motherboard, but mine is labeled sata power.

[Prométhée · Accepted solution]

hi

check here

https://h30434.www3.hp.com/t5/Desktop-Hardware-and-Upgrade-Questions/Re-Can-I-add-RAM-to-my-TP01-102...

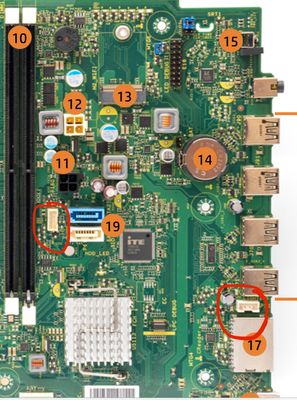

we see it here

https://h30434.www3.hp.com/t5/Desktop-Hardware-and-Upgrade-Questions/baker-rev-a-m11/td-p/8057538
