Failure after battery replaced

[Luis1408]

flashing battery charger led indicator
after replacing the battery with a new one it was working ok, after 30 minutes the battery was at 0% charge, connected to the charger, but it does not turn on, so the led indicator on the battery charger is flashing 5 times and then the time is off and started again 5 times flashing.
Can you help me?

[ub6424]

Hello @Luis1408

@Paul_Tikkanen has kindly provided me with the information. Thanks Paul.

[Luis1408]

Hello @Ub6424

There is no way i can run that cause I can not start my laptop at all. All I have is this info i took before i changed the battery, so it is all i have. Also all the info i have is in spanish since it's my languange.

OS NAME Microsoft Windows 11 Home single language

Intel(R) Core(TM) i5-8265U

VERSION 21H2

22000.856

System Model  LAPTOP-CB9D5T4I

Processor 64 bits x64

BIOS Version/Date 27/04/2022

Thank you.

[Paul_Tikkanen]

Hi, @ub6424

This is the model the person has according to the serial number he posted.

HP Pavilion 13-an0012la Especificaciones del producto | Soporte al cliente de HP®

[ub6424]

Hello @Luis1408

(1) What specification ( technical data ) has the purchased battery ?

Do you have details for me please ( website ? invoice ? ). Unfortunately, it is already installed.

(2) Send clearly visible picture of the old battery specification (printed on)

Battery specification should be:

HP spare part number: L28076-005
2-cell, 37-WHr, 4.96-AHr, Li-ion battery

Compatible part numbers:

2ICP4-75/121	HSTNN-DB8U	HSTNN-IB8Q
L27868-1C1	L27868-1C2	L27868-2D1
L28076-005	MM02XL	MM02037XL

Kind regards

[Luis1408]

Hello @Ub6424

This is the original battery

And this is generic one i bought

Thank you.

When I had the original one before, the led didn´t turn on and it only had 10% left, that is why i search for the problem and it suggested me to change the battery, it worked cause it had like 40% then I got that one by recommendation and availability, changed it and it said as a ¨calibration method¨ to let it die and then charge it again. I did and never turned on. Just blinks 5 times and then stops and then 5 blinks again.

[ub6424]

Hello @Luis1408

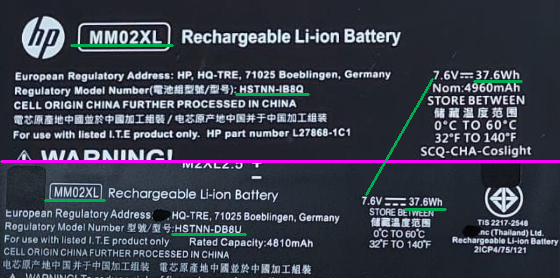

(1) Basically the replacement battery looks good:

They differ, but that is technically okay

Old:

4960 mAh

HSTNN-IB8Q

New:

4810 mAh

HSTNN-DB8U

( compatible )

(2) Disconnect charger

(3) Disconnect battery

(4) Connect charger

(5) Power on notebook ( without battery ! ) and start Windows

(6) Run    msinfo32

- Select <System Summary>:

--->>> Copy/screenshot/paste following key/value pairs:

OS Name

Version

System Model

System SKU 4PE73LA ? ( equals HP product number (p/n) )

Processor

BIOS Version/Date

(7) Please report your results

[Luis1408]

Hello @Ub6424

Step 5, can't not do it cause when as soon as I take the battery out stops blinking.

I follow the steps you said, took out the battery, connected the charger and it doesn't turn on.

I am unable to do turn it on.

Thank you.

[ub6424]

Hello @Luis1408

I have an important question, please answer honestly. Did you always disconnect the charger before connecting or disconnecting the battery ? If not you could have caused a short circuit !

Kind regards

[Luis1408]

Hello @Ub6424 Regarding your question and to be honest sometimes I don't notice the way I do it, could be either.

What would that imply?

Thank you.
