hp notebook not booting - 'No hard drive installed'

[MysterRees]

  **Switch on, clicking/screeching from hard drive. -> Press any key to boot from CD or DVD
I do nothing –> The selected boot device failed.Press <ENTER> to continue  I press ENTER and it switches itself off

  **Switch on, clicking/screeching from hard drive. -> Press any key to boot from CD or DVD  -> I press a key
Hp screen appears (there is intermittent clicking/some screechy bleeps for roughly 7-8 mins)

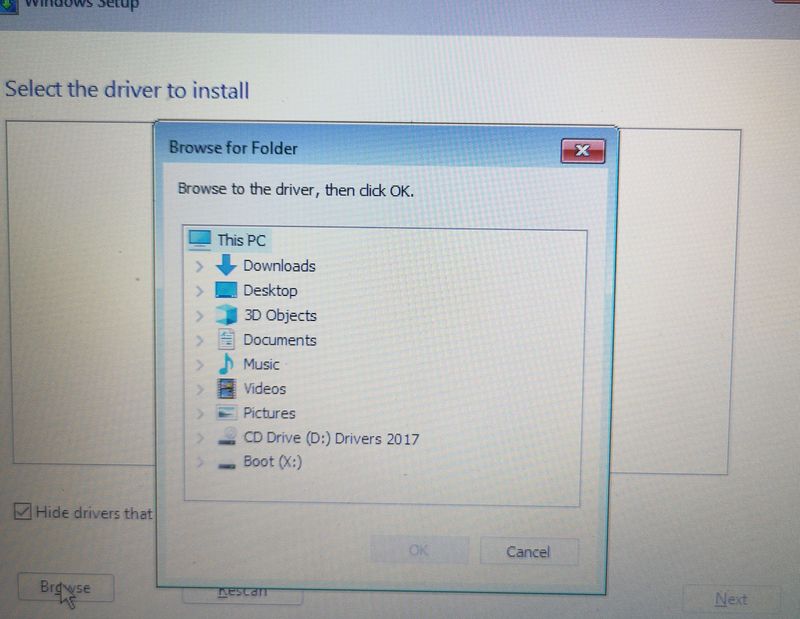

‘Windows Setup’ screen appears. I click install. I follow the screens everyway I can and get nowhere. I tried to load drivers got nowhere. (Please see attached pictures)

  **I have been into the 'HP PC Hardware Diagnostics UEFI' I have done the Quick check on the Hard Drive - it says no hard drive installed (Please see pics)

I have been into the BIOS(f10) done everything I have been told to do via the forums etc and can only assume the Hard Drive is knackered???

Can anyone please tell me what is going on  - and can anything be done?

123456789101112131415

[WAWood]

@MysterRees

The noises from the drive, coupled with the 3F0 error code, confirm your drive has died.

So, there are four issues to address here:
1) Data Recovery
2) Drive replacement
3) Recovery Media
4) System restoration

---------- Data Recovery ----------

Your best bet for recovering data now is to do the following:
1) Remove the hard drive from the PC
2) Purchase a USB-to-Hard Driver adapter kit
3) Download and install this utility on a working PC: http://www.majorgeeks.com/news/story/recover_data_in_3_steps_with_minitool_power_data_recovery_free_...
4) Connect the old drive to the working PC
5) Run the data recovery utility to see what can be retrieved from the old drive.

If that tools does not find what you need, an alternative is Recuva: http://www.piriform.com/recuva

And, if that does not work well, the best tool out there is this one, but only the trial version is free: http://www.file-recovery.com/

---------- Drive Replacement ----------
The drive will need to be replaced. When you remove it, you will see that it is a 2 1/5 inch laptop SATA drive.

You can replace this with any similar laptop drive of the same capacity or larger.

If the PC is still under the original one-year HP warranty, or if you have purchased an Extended Warranty and that coverage is still in place, you should be able to get the drive replaced by HP at no charge. To explore that option, you would have to contact HP Customer Support.

If you live in the US or Canada, contact information is on this page: http://www8.hp.com/us/en/contact-hp/phone-assist.html#section1

If you live elsewhere, contact information is on this page: http://www8.hp.com/us/en/contact-hp/ww-contact-us.html

NOTE: After you get through, stay on the line until you are finally able to talk to some one -- it can take a while!

If you have trouble finding a phone number, then try: If you have trouble finding a phone number, then try: 1 (650) 857-1501. Tech Support's number is 1 (800) 474-6836.

---------- Recovery Media ----------

Once you have the replacement drive, you will need to use something known as HP Recovery Media to restore your PC to working condition. This is a set of DVDs and a CD, or USB stick, that will erase the hard drive (removing all data, settings, and applications, reinstall the original OS, drivers, and some HP Utilities. In some cases, you may be able to order a USB stick instead of disks. You have to order these from HP; they can not be downloaded.

You can look online for Recovery Media starting with the linked paged: http://support.hp.com/us-en/drivers

Once there, input your Product name or number. On your Software and Drivers Download page, select your Operating System and and Version. Click "Update". If HP Recovery Media is available for your machine, down near the bottom of the page, you will see an entry for Order Recovery Media-CD/DVD/USB. Click the "+" symbol to expand that entry and click on Order Media for details.

Or, if you prefer, you can do the same by contacting HP Customer Service (see contact info above)

If HP no longer provides Recovery Media for your model, another site you can check is: http://www.computersurgeons.com/

---------- System Restoration ----------

While you are waiting for the media to arrive, read through this: http://support.hp.com/us-en/document/c00006110

Good Luck
