Help needed with Synaptic touchpad driver

[Nathan421]

Hello - My touchpad is not working on my laptop top after a Fresh Start. After searching for solutions, I have been unable to find a driver online that will work.

HP ZBook Studio 15.6 inch G8 Mobile Workstation PC (46N54AV)

Product4M1Z3UT

Windows 10 Pro

Version 21H2

I see that in most help forums, the most common advice is to go to device manager and update the driver; In device manager, the Synaptic Touchpad is not listed. I have clicked "View > Show Hidden" to no avail. I have identified the generic "HID Compliant Mouse" driver the the TouchPad is using, but updating that has no change. I have also attempted to install older drivers from the internet, but none have worked. I was able to see all of the drivers provided for my machine on HPs website, and there is a Synaptic driver for the finger print sensor, but no other Synaptic drivers or drivers for the touchpad. Can someone help me locate the driver for the toushpad on this machine?

Thanks in advance.

[ub6424]

Hello @Nathan421

Sorry to hear that you are having problems ... and I would like to help you.

(1) Update BIOS

HP BIOS and System Firmware (T92)

01.09.11 Rev.A

23.6 MB

Jun 27, 2022

Download

Why should you install the update ?

https://support.hp.com/us-en/document/ish_4123786-2338478-16

Quote: "

Updating the BIOS is recommended as standard maintenance of the computer. It can also help resolve the following issues:

 An available BIOS update resolves a specific issue or improves computer performance.

• The current BIOS does not support a hardware component or a Windows upgrade.
• HP Support recommends installing a specific BIOS update.

"

(2) Reboot

(3) Install/Update

Intel Chipset Device Software

10.1.18800.8277 Rev.A

0.7 MB

Nov 5, 2021

Download

Intel Dynamic Tuning

8.7.10700.22502 Rev.A

7.3 MB

Oct 20, 2021

Download

Intel HID Event Filter Driver

2.2.1.386 Rev.A

1.0 MB

Nov 5, 2021

Download

Intel Management Engine Driver

2212.15.0.2669 Rev.A

275.3 MB

Apr 20, 2022

Download

Intel Serial IO Driver

30.100.2129.8 Rev.A

1.1 MB

Oct 14, 2021

Download

Intel TXT/ACM Driver

1.14.39.0 Rev.A

0.5 MB

Apr 7, 2022

Download

Intel Thunderbolt Driver

84 Rev.A

42.5 MB

Sep 12, 2021

Download

Intel Processor Power Management (PPM)

8.32 Rev.H

0.8 MB

May 5, 2021

Download

(4) Reboot

(5) Install/Update

Synaptics FS7600 WBF Touch Fingerprint Driver

6.0.110.1110 Rev.A

2.8 MB

Nov 5, 2021

Download

(6) Reboot and test again ...

(7) Please report your results

[Nathan421]

Hi @ub6424 -

Thank you for your response. I updated BIOS and the drivers in the sequence above. There is no change in the touchpad performance. I still do not see the Synaptics Touchpad in the Device Manager.

Any other thoughts?

[ub6424]

Send me a screenshot of windows device manager, look for unknown devices with a yellow exclamation mark.

[Nathan421]

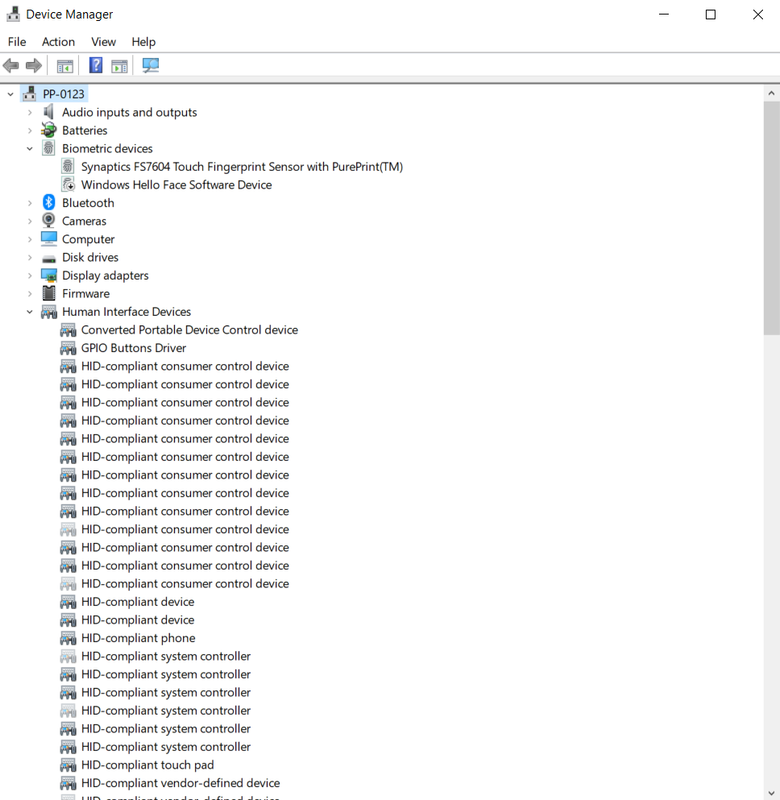

Thank you again for looking into this matter and sorry for the delayed response. I have attached 3 images of all the items in Device Manager with the View option to include "Show hidden devices".

[ub6424]

Hello @Nathan421

(1) Not related to your main problem ...

>WD SES Device driver

https://www.partitionwizard.com/partitionmanager/wd-ses-device-usb-device.html

https://support.wdc.com/downloads.aspx?p=258&lang=en

(2) Does your <touchpad> works ?

Please report your results

[Nathan421]

Hi @UB6424 -

The touchpad "works" in that I can move the mouse around , but it acts like it always has the left-button pressed. So, when moving the pointer around an empty desktop, it is drawing a box as if I was selecting a group of items. Similarly, when I mouse over a window or menu, it selects the first thing it touches. This is almost like "ClickLock" is turned on permanently (it is not).

I currently have the default drivers disabled so the Touchpad is "Off" and am using a USB mouse.

I feel like installing the Synaptics driver for HP will solve this, but it is no where to be found.

Any thoughts?

[ub6424]

Hello @Nathan421

(1) Install/Update

Synaptics Mouse Driver

19.0.19.65 Rev.A

190.1 MB

Dec 5, 2017

Download

and

https://www.synaptics.com/node/4696?filetype=exe

(2) Reboot and test again ...

(3) Please report your results

[Nathan421]

Hi @ub6424 -

I installed the drivers above. No change in the touchpad, but the fingerprint reader stopped working.

Once again, I appreciate your time and efforts.

[ub6424]

Hello @Nathan421

Reinstall your system ...

(1) Backup <all> personal data (documents/pictures/videos etc...) to external USB hard drive

(2) HP Consumer PCs - Using the HP Cloud Recovery Tool in Windows 10

https://support.hp.com/us-en/document/ish_4511095-4511141-16

( It includes all drivers and software from HP.)

(3) Please report your results
