Ethernet Internet Not Connecting ( PPOE)

[Akbar321]

When i want to connect internet via lan to laptop, then its shows as like this * The connection was closed by the remote computer*

Please solve the problm as soon as possible

.

For clear my question, i've attached pic of prblm

[Lil_Boy_Blue]

Hi

Copy, Paste and Save in Notepad, as LBB.bat (not a .TXT) and double click to run.
Preferably run as an Administrator.
OR
Copy and use the individual command lines as needed.

Post anything non-personal, but relevant please.

@Echo OFF
getmac
netsh lan show interfaces
netsh wlan show interfaces
netsh wlan show drivers

PAUSE
systeminfo
PowerShell -Command "Get-NetAdapter"
PowerShell -Command "Get-NetAdapter -Name * | Format-Table -View Driver"
PowerShell -Command "GIP -Detailed"
PowerShell -Command "Test-NetConnection"
PAUSE

Post some of the info please.  The first block are more relevant.

[Akbar321]

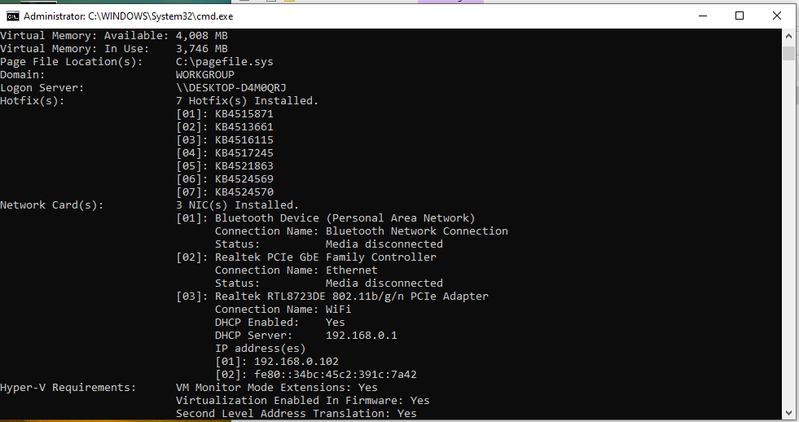

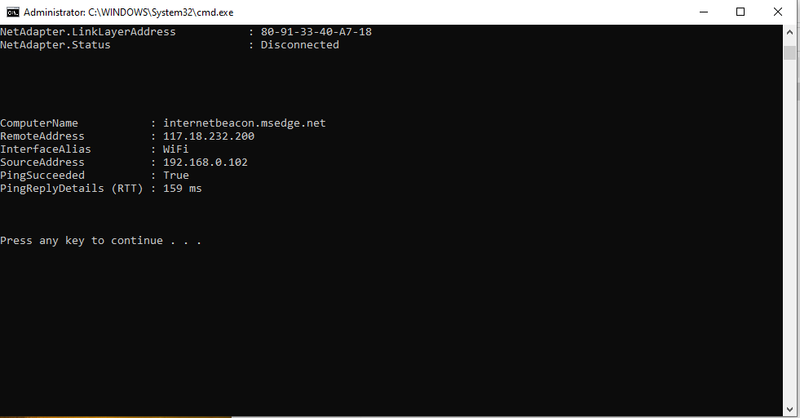

As you've said to run as .bat, i've done that work and this result was showen to me

Now, can you tell me that what is solution for that problem???

[Lil_Boy_Blue]

Hi

You have an ethernet adapter, it seems to be installed with a driver, all is correct.

The cable is known to be good?

Typical values could be...

ipconfig -all

Ethernet adapter Ethernet:

Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Realtek PCIe FE Family Controller
Physical Address. . . . . . . . . : BB-BB-BB-BB-BB-28
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
Link-local IPv6 Address . . . . . :
IPv4 Address. . . . . . . . . . . : 192.168.0.31(Preferred)
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Default Gateway . . . . . . . . . : 192.168.0.1
DHCPv6 IAID . . . . . . . . . . . :
DHCPv6 Client DUID. . . . . . . . :
DNS Servers . . . . . . . . . . . : 8.8.8.8
8.8.4.4

NetBIOS over Tcpip. . . . . . . . : Enabled

So I think you need to ensure you have chosen AUTO for network addresses or specified your own correctly.

ping 127.0.0.1       is a self test of an adapter (disable WiFi)

ping 192.168.0.1   is to the router/modem (192.168.1.1)

ping bbc.co.uk       is obvious.

If in doubt please ask.
