Duplex printing with 65lb cardstock

[Karen-01]

The printer will sometime duplex with 65lb cardstock and sometimes not.  It will not turn the paper over.  any suggestions?

[Dragon-Fur]

@Karen-01

The answer is maybe.

Card stock varies by paper manufacture - Most paper is likely one of the ISO manufacturing types.

For example, paper might be type  Bond, Cover, Text or Index (typical for defining HP "Card" paper).

Reference

Printer Specifications for HP OfficeJet Pro 8700 Printers

Section Paper Handling

and

Media Sizes Custom (imperial)	Tray 1: Width = 3 in - 8.5 in / Height = 5 in - 14 in
Media Sizes Custom (metric)	Tray 1: 76.2 x 127 to 215.9 x 355.6 mm
Media Types	Plain Paper, HP Photo Papers, HP Matte Brochure or Professional Paper, HP Matte Presentation Paper, HP Glossy Brochure or Professional Paper, Other Photo Inkjet Papers, Other Matte Inkjet Papers, Other Glossy Inkjet Papers, Inkjet Hagaki, Plain Paper, Thick, Plain Paper, Light/Recycled
Media Weight Recommended (imperial)	16 to 28 lb (plain paper); 60 to 75 lb (photo); 20 to 24 lb (envelope); 90 to 110 lb (card)
Media Weight Recommended (metric)	60 to 105 g/m² (plain); 220 to 280 g/m² (photo); 75 to 90 g/m² (envelope); 163 to 200 g/m² (card)

Make sure the paper is in Tray 1

Select the Source = Tray 1 (as opposed to leaving the setting to "Automatic")

Select paper / media =  type Brochure matte (or Professional)

Select the paper size

Notes

Duplex is not supported in all sizes of paper.

Duplex is not compatible with Photo Paper.

What?

If the selected combination of paper type (media), paper size, and duplex are not compatible, the driver will balk and ask that it be corrected.

If you can find and select an "accepted" combination in the print driver settings, the paper has a good chance of working as expected.

HP Printer Home Page - References and Resources – Learn about your Printer  - Solve Problems

 “Things that are your printer”

NOTE:  Content depends on device type and Operating System

Categories:  Alerts, Access to the Print and Scan Doctor (Windows), Warranty Check, HP Drivers / Software / Firmware Updates, How-to Videos, Bulletins/Notices, Lots of How-to Documents, Troubleshooting, Manuals > User Guides, Product Information (Specifications), more

When the website support page opens, Select (as available) a Category > Topic > Subtopic

HP OfficeJet Pro 8710 All-in-One Printer series

Thank you for participating in the HP Community.

The Community is a separate wing of the HP website - We are not an HP business group.

Our Community is comprised of volunteers - people who own and use HP devices.

Click Thumbs Up to say Thank You.

Question / Concern Answered, Click "Accept as Solution"

[Repairatrooper]

According to specs here: https://support.hp.com/us-en/product/hp-officejet-pro-8710-all-in-one-printer-series/7902014/documen...

Does not list support for duplexing anything other than plain paper.

That does not mean you may not be able to duplex but there is no guarantee on reliability of feeding. Your best bet with heavier media is to manually duplex by printing the first side and then reinserting the media in tray 1 to print side 2.

[Dragon-Fur]

@Karen-01

@Repairatrooper is correct, of course.

@Repairatrooper works with printers in a professional capacity and understands the products.

So

Excellent idea.

=====================================================================

Yes, so?

In my opinion, it comes to this:

Manual duplex, assuming the paper is supported at all, is certainly an option for occasional printing.  Manual 2-sided printing more complicated if you are trying to print certain projects, for example, "booklet" style (greeting card - front, inside left/right, back of card).

• Printer condition - including a factor of age, level of use, maintenance history
• Type of paper and how that translates into the paper weight
• Whether the printer supports the paper and can produce the necessary results
• Job / Project type

What about the Paper?

If your card stock is made from Bond paper, 65lb paper is 245gsm and is unsupported.

The paper might print single sided, though it is just as likely the paper will jam and refuse to print.  There is not a driver setting to accommodate paper of this weight in other than photo paper.  In general, Photo paper cannot be selected in the driver (print dialog) unless you are actually using Photo paper.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

If your card stock is made from Cover paper, 65lb paper is just 176gsm - the paper is similar to Brochure paper (made from Bond paper = 47-48 lb and 176-180 gsm).  2-sided printing is supported at this weight.

Select media / paper type = Brochure, Professional, Thick, Card, or similar.

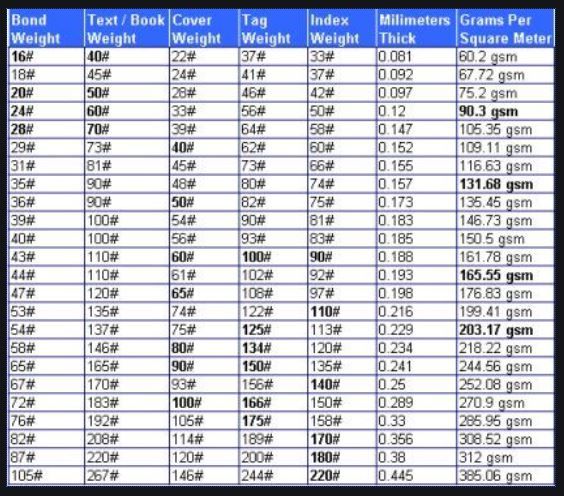

There are dozens of charts on the 'net to help you understand how paper types compare without having to actually understand the manufacturing process and the math involved in the conversion.  Pick one.

One example,

Paper_Weight_1E
