Laser Jet 477MFP M477fdn

Hi guys, hope you can help.  So I had a paper jam in the fuser and had to take off the Fuser paper guide.  So when I took off it comes apart in two.  There is a small part with tiny little white wheel on it, problem is I dont know where this goes on the Fuser paper guide.  (It's not one of the two small white wheels on the fuser paper guide.) Ill attach a picture of the part.

Thank you all in advance for any help you can provide.

Spudy 🙂 20210925_152035.jpg

1 ACCEPTED SOLUTION

Accepted Solutions
HP Recommended

That is a sensor flag and it will likely mount in the fuser guide or the fuser itself.

If you find the information provided useful or solves your problems, help other users find the solution easier by marking my post as an accepted solution. Clicking "yes" on "was this reply helpful" also increases the chances that this solution will help others.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.



View solution in original post

2 REPLIES 2
HP Recommended

That is a sensor flag and it will likely mount in the fuser guide or the fuser itself.

If you find the information provided useful or solves your problems, help other users find the solution easier by marking my post as an accepted solution. Clicking "yes" on "was this reply helpful" also increases the chances that this solution will help others.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.



HP Recommended

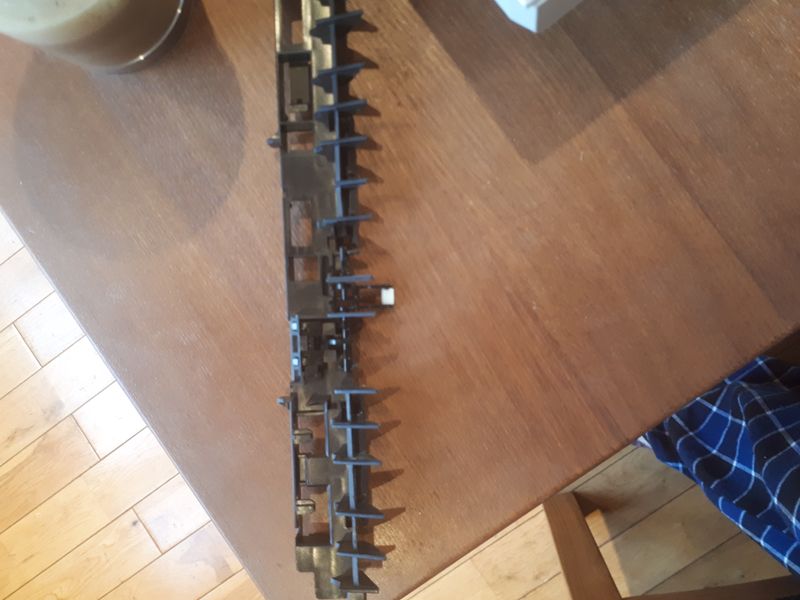

20210925_180106.jpg20210925_180122.jpg Well done I didn't expect this problem to get sorted, Your bang on, Ill just post pics for others, just in case....

Thanks a million "Super Trooper" 🙂
