Product: OfficeJet 69xx
  1. Make sure you have removed all tape and packaging material.
  2. Plug the printer into a power source, turn on the printer, and then set your preferences.
  3. Ensure scanner lid is closed (key step). Picture A shows printer with scanner lid closed.



 Picture A.PNG

Picture A: Printer with scanner lid closed

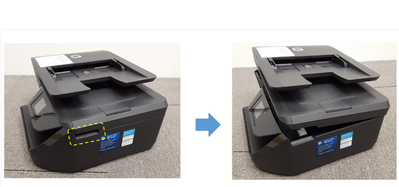

 4.   Raise the ink cartridge access door from the side (either right or left, or can use both hands). Picture B shows side view of the printer, the highlighted yellow dashed line/box indicates the area where you can raise the ink cartridge access door.

 Picture D.PNG

Picture B: Side view of printer, yellow dashed line/box shows area where to open the door.



5.   You can raise the door until you hear the "click" sound. There's a stopper at the end holding this ink access door.

6.   Proceed with the rest of ink installation. You can watch the animation at control panel.







Note: You can also refer to below link(s) for reference:
