‎03-03-2019 11:04 AM

HP Recommended
Product: HP Compaq 8100 Elite CMT
Operating System: Microsoft Windows 10 (64-bit)

Hi!

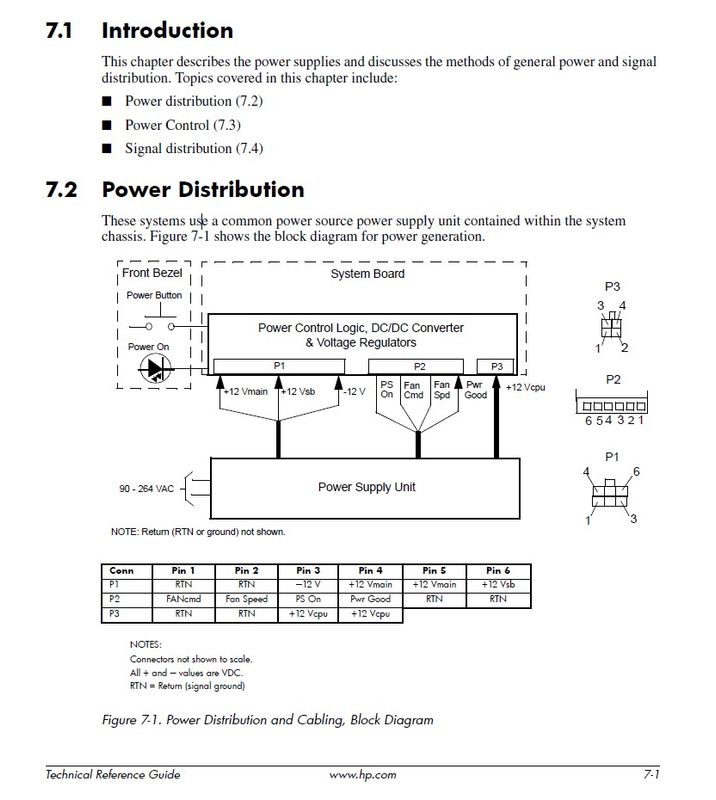

I bought an used "HP Compaq 8100 Elite CMT". In the "HP Compaq 8100 Elite Technical Reference Guide.pdf" on side 7-1 there is the description of the Power Supply Unit.
The PINs there for P2 are:
| 6 RTN | 5 RTN | 4 Pwr Good | 3 PS On | 2 Fan Speed | 1 FANcmd |

but in my PC there are just 5 cables on P2:
| 6 blank | 5 black | 4 grey | 3 green | 2 white | 1 white-red |

So there are my questions:
1.) Which signals (voltage) are behind these 5 cables in the PC?

2.) Which signals (voltage) are behind "Fan Speed" and "FANcmd"?

Thankx,
Max



Some photos...

Reference GuideReference GuideP2P2
