CPU support for HP xw8400, Xenon 5400 series?

HP Recommended
HP xw8400
Microsoft Windows 7 (64-bit)

I have a HP xw8400 Workstation with 2 Xenon 5160 dual core 3 Ghz 64-bit CPU installed at the moment.



I have tried to find a list of what other CPU the motherboard supports but with no luck. If the BIOS is updated is it possible to use CPU from Intel Xenon 5400 series?



I hope that someone can guide me to a answer.



Regards



Mattias

7 REPLIES 7
SDH
Level 10
2,274 2,228 211 657
Message 2 of 8
Flag Post
HP Recommended

EDIT:  The OP actually is most interested in whether the 5400 series processors can be used in the xw8400, not really in what other processors in the 5300 series of processors will work.  The answer is no, the 5400 series processors is for the next generation of HP workstations..... the xw6600 and the xw8600.  A BIOS update can't change that.



Welcome..... For your project a great source is the search box that targets this forum only, at the top left.  There was an earlier HP forum that I posted a bunch of info on the xw8400 that still can be found, however, via google searches for specific items.  Below are budget suggestions.



The source for the list of officially approved processors is best found in the latest version of the QuickSpecs for a HP workstation, and the latest one I have is Version 28 from 2/22/08.  These workstations still have the potential for excellent performance even now with processor upgrades and adding more memory.  You want two of the fastest quad cores.... they are E5345, X5355 or X5365 and those run at 2.33, 2.66 and 3.0 GHz respectively.  They draw max wattage of 80, 120, and 150 watts, respectively.  You want the latest version of those, each of which had 2 or 3 steppings, and you thus you want to search eBay for the sSpec code of SLAEJ, SLAEG, or SLAED respectively.



The heatsinks for the xw6400 or xw8400 were the same but the xw6600 or xw8600 will fit too.  You already have two heatsinks, and I hope they are the 3-heat tube versions, discussed below.  The xw8600 came out with a special "performance" double tall double fan heatsink for the hot processors, and one of my iterations of the xw8400 had one single tall and one double tall over the X5355 processors.... little difference in temperatures for how I use a workstation.



You likely will be very happy with two of the E5345 SLAEJ under your current heatsinks/fans.  Those heatsinks came in 3 versions:  398293-001, -002, or -003.  You do not want the -003 version because it is short one heat tube, probably cheaper to make and used by HP for the 80 watt processors only.  Thus, the -002 and -003 have more cooling capacity.



I ran my xw8400 with the E5345 SLAEJ and the X5355 SLAEG.   I posted previously on how to spoof the motherboard into thinking it had a "performance" fan and thus not boost up the fan rpms for the X5355 but my advice is to start with 2 E5345 SLAEJ processors for you.



Memory.... best to populate all memory slots with identical RAM sticks, HP holographic label ones, and ideally from the same vendor such as Elpida or Nanya (my favorites for that era, but Samsung is close behind as is Hynix.  Not Micron for the 4GB sticks.)  Look for HP part number 398708-061 for 4GB sticks.  For 2GB HP sticks look for the same brands but Micron 2GB are OK.  Look under 398707-051 (or -551).  Careful shopping for used HP sticker RAM on eBay is worth doing.



OS and drivers:  I use the MS "system builder" W7Pro64-bit install.  I always load the latest BIOS first.  I only build now with non-RAID single 300GB SSD (I only use Intel 320 series 300GB now, with 2TB or less documents drive also in place.  Make sure to set BIOS SATA Emulation to RAID + AHCI before install, even if you'll never use RAID.  Any of my posts on xw6400 BIOS optimization will generally be good for the xw8400.



Finally, rarely the optical drive in place is too old to run the installer DVD so you might want to buy a newer HP one and swap it in.  Newer HP universal installers from the Z600 or even the Z620 era will work fine on the chipsets on the motherboard (for Broadcom, Realtek, etc.).  There is a "best" ESB2 driver I have posted on also.



From the W7 Windows Experience Index scoring system you can expect:



Single X5355 gets you 7.3 (out of 7.9 max) but 2 X5355 gets you 7.6 for both your memory and processor scores.  You can see that loading the second processor is worth it, and you get a similar benefit for those below too.

Two X5365 will get you 7.7 for both of those.

Two E5345 will get you 7.5 for both of those.



A HDD will get you about 5.9 for drive score, but SSD will get you about 7.7-7.8.  So, well worth it.



Video cards.... for budget card I like the used eBay FX3700 a lot, which will get you 6.8 for 2D and 3D video scores.  There is a HP firmware updater you can download, and it will update non-HP FX3700 cards too.  You can buy up from there if you don't want Quadro hardware.  For example, a nVidia GTX 650 Ti Boost on my xw8400 registered 7.9.  The pic below shows that.... this build got one of those Intel SSDs next:



GTX650 Ti Boost.jpg



Ater_Swe
Author
New member
3 2 0 1
Message 3 of 8
Flag Post
HP Recommended

Tnx for a long and detailed reply but it dones not awnser my question.



As I said I had tried to find a list with what CPU the motherbord supports and I have used both this forum and google.





My question is not about watt, heatsinks and Xenon 5300 series.  It is simply if Xenon from the 5400 series can work with the motherboard.





I am not about to upgrade it for my self and I will not buy a new CPU for it. I am not using my xw8400 at the moment and a friend that have a CPU from the Xenon 5400 series have given me an offer for the worksation but he wants to know if he can use his CPU on the motherboard.





0 Kudos
SDH
Level 10
2,274 2,228 211 657
Message 4 of 8
Flag Post
HP Recommended

So sorry... did not realize your limited needs, but my post was actually also for future forum members wanting the latest on how to upgrade the xw8400.



The answer to your specific question is no.  To use the 5400 series you need to move up to the xw6600 or xw8600 generation of workstations, and the latest Quickspecs for those will tell you the 5400 series processors you can use.





An example, but for the xw8400:



Google "xw8400 Quickspecs" and the xw8400-approved processors are listed on page 3:



Here

0 Kudos
Ater_Swe
Author
New member
3 2 0 1
Message 5 of 8
Flag Post
HP Recommended

I have of course read the xw8400 Quickspecs but that is specifications of what you could buy a xw8400 preinstalled with, not a list of supported CPU. And the Quickspec was released in feb 2008 and the first Xenon 8400 was  released after that it could not be in the list of CPU you could order at that time from HP.



And since the Intel® 5000X can be used with the  Xenon 5400 series I thought it could be possible with a BIOS update to run that on the xw8400 motherboard. But a updated list of supported CPU is nowhere to be found.

SDH
Level 10
2,274 2,228 211 657
Message 6 of 8
Flag Post
HP Recommended

You are correct in your reasoning, and I am with you in wishing that we could drop in any processor that "should" work.  However, the HP workstation's BIOS includes a "microcode" listing of what processors have been certified for that box, and it is a general rule that if a processor is not in the microcode listing then it will not fire up.



There are some rare exceptions, but back when I was working a lot with the xw6400/xw6600/xw8400/xw8600 workstations I tried some of the xw6600's HP-listed 5400 series processors in the xw6400.  No go.... not even a squeak from the boot process.  They use the same sockets so I figured I'd try, and I did not damage the processors or the motherboards.



I did not try all the 5400 series processors, but I've never heard of an unlisted processor working in one of these two generations of workstations.  Forum posters have found a very few exceptions to this general rule, with the Z400/Z600/Z800 series.  For example, I'm running a X5690 in a Z400, and that was never listed in any of the QuickSpec documents.



HP generally has released a new microcode list rolled in with a new BIOS release (but not with each BIOS release), and I do know of one case where they released a new microcode list by itself (for the xw4600).  I have never discovered a method to read that microcode list directly.  HP does not talk about the microcode list concept hardly at all.



This is all related to the fact that these workstations need to run very reliably for enterprises, and thus HP needs to limit the processors to ones that they have tested extensively for compatibility.  They can't have some IT guy throwing in faster processors that "should" work and have the enterprise blaming HP down the road for unexpected glitches that might show up.

LADave
Level 2
22 12 1 1
Message 7 of 8
Flag Post
HP Recommended

Apologies for arriving late at the party.  If you're sufficiently brave or foolhardy, isn't it possible to flash a custom BIOS with the microcode needed to upgrade the CPUs?



One compelling reason is to add SSE4.1 extensions.  For example the latest release of AutoDesk 3DS Max requires them, and other workstation applications are likely to follow.  It would be unfortunate to relegate these brutish but still powerful models to the dustbin, for lack of some microcode.

0 Kudos
DiegoDevOps
New member
1 1 0 0
Message 8 of 8
Flag Post
HP Recommended

You can put 2 Quad Core Xeons X5665 3.0 Ghz on the HP X8400

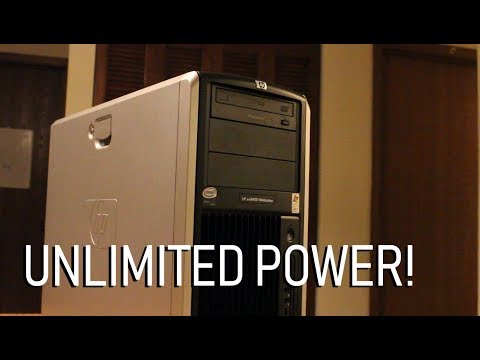

Check out this video:

https://youtu.be/S3up8Y76Zic?t=315





HP's xw8400 workstation was a computational powerhouse released in the late 2000s which was built to satisfy the computing needs of businesses or anyone with...
0 Kudos
