Product: T1100

Hello.

I have a Designjet T1100 in the basement since October last year. At that time I only had it booted up, and could get into the menu. I have not used the device since then without power.
Today I wanted to try my first printout, and after booting it for a long time, there were rattling noises.
Here is a video:



There is an error message "47:01".



Designjet T1100 - Rattles after switching on, two gears on the left side - close-up viewDesignjet T1100 - Rattles after switching on, two gears on the left side - close-up view




Thanks...

Tags (1)
Category:
2 REPLIES 2

‎05-16-2022 12:33 PM

HP Recommended

That is a broken starwheel motor, a known issue on that printer model, which needs to be replaced, and firmware upgraded to prevent it from happening again.














My profile on LinkedIn

Was this reply helpful? Yes No

‎05-16-2022 04:35 PM

HP Recommended

There is a service bulletin on this product that shows that one of the brackets break. A new upgraded part is now supplied part number Q6718-67017. As I posted on Spiceworks,  you need to take this apart before ordering any parts to determine exactly which part has broken. Depending on the HP documentation I look at, there are different causes and fixes listed.

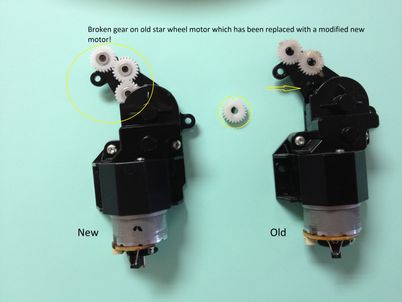

starwheel motor.jpg

If you find the information provided useful or solves your problems, help other users find the solution easier by giving kudos and marking my post as an accepted solution.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.
