System Error: 0065-0002-0008 for sheet load

HP Recommended
HP Designjet Z9+ postscript printer
macOS 10.15 Catalina

Hello, I use my design jet only with the sheet feed.

I will be constantly feeding paper in and after awhile printing my printer fails to recognise that the sheet is unloaded.

I continue to work by clicking "unload" & rolling a piece of paper through the feed and it triggers the sensor that it has in fact unloaded a non existent piece of paper.

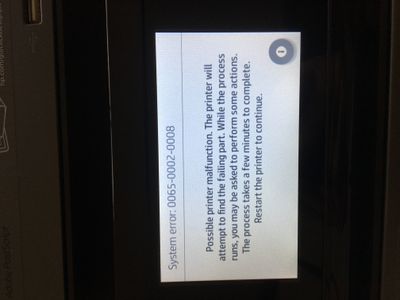

This culminates in a full system error message with all the testing being passed except for the end step where it asks me to "unload" a piece of paper that isn't there.

Has anyone else had this problem/knows how to fix it without a technician?


1 REPLY 1
chris1designjet
Level 4
63 63 4 10
Message 2 of 2
Flag Post
HP Recommended

Hi  Charlotte



The error  seems to be related to the motor  that pushes the media inside .. but the part appearing  q5669-67801  is related to the sensor of the media that probably is out of its position .

so fist check the media sensor from under the right side of the plotter , the media sensor is the number 5 .



sheet sensor .jpgyou can check the sensor from behind with a lamp or light to check the position of the sensor and try to insert a smaller card board  to check the functionality .. please do this when plotter is turned off  as you can hurt your hand ...  if not solved  continue

try from underneath the plotter to remove and reinstall the sensor using  a flat screw driver WhatsApp Image 2021-03-02 at 13.48.24.jpeg

.If you can do it  its great , but .... its an hp technician job to   fix it  .



take care
