T120 - Blue Screen with error code B87E7110

HP Recommended
HP T120

I'm getting a blue screen with the error message B87E7110.  I was told that it might be a problem with the main PCA of the printer.  Does anyone have any other insight on how to fix this or where to purchase a replacement PCA?  Thanks.

Tags (1)
18 REPLIES 18
rasheddul
Level 7
634 618 35 81
Message 2 of 19
Flag Post
HP Recommended

Hi,

Problem: Blue Screen Error B3320C36 for HP DesignJet T120/T520 Printer.




Please at first try isolating the printer, remove inks, printhead, connectivity cables, another power outlet and then turn the printer on.

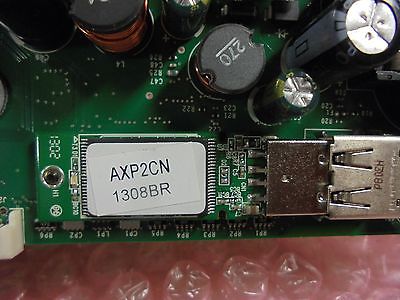

Main reason for the Encrypted Chip, which is not orderable to HP. That's why need order whole main board.

original (1).jpg

If still problem persist, please replace the Main PCA and Encrypted Kit. That is the proper channel.



Main PCA for HP DesignJet T520 Printe (P/N: CQ890-67097 ) - 36"

Main PCA for HP DesignJet T520 Printe (P/N: CQ890-67023) - 24"

Main PCA for HP DesignJet T120 Printe (P/N: CQ891-67019)


PartSurfer: https://parts.hp.com/hpparts/Search_PS_Result.aspx?mscssid=B9CF7D86E05B48369FADE20CFBEBD9D8



It is my understanding that the new Main PCA should come with the USB with the FW. Make sure it is there before installing the new main PCA.

If problems with the FW, will not recommend you to use the old USB with the firmware again.



If not covered under warranty you may replace Encrypted chip which is failed on the mainboard inside the printer you can buy it on ebay:



HP DJ T520: http://www.ebay.co.uk/itm/HP-Designjet-T520-Blue-Screen-Error-Solution-Encrypted-chip/282230954091

original (1).jpg



HP DJ T120: http://www.ebay.co.uk/itm/HP-Designjet-T120-Blue-Screen-Error-Solution-Encrypted-chip/282211348454?_...




Thanks,
Rashed

I am not an employee of HP but I am an engineer @ HP Partner and I am share my knowledge from my own time.
If your problem is solved please click the "Accept as Solution" button
If my answer was helpful please click the "Thumbs Up" to say "Thank You"

Regards/Rashed
https://www.linkedin.com/in/rasheddul
sydwest
Level 1
8 7 0 0
Message 3 of 19
Flag Post
HP Recommended

is there any way to check if the encrypted chip is defective

0 Kudos
LucekKL
Level 1
13 13 0 0
Message 4 of 19
Flag Post
HP Recommended





all blue screens on t120 are because of that chip





0 Kudos
Mikeg81
Level 10
Level 10
2,276 2,271 113 241
Message 5 of 19
Flag Post
HP Recommended

Hi,



Isolate the printer, remove ink cartridge, printhead and paper

Try another power cable and power outlet



If the issue persist use the CQ890-67105 USB New Module with F/W SV

https://parts.hp.com/hpparts/Search_Results.aspx?mscssid=E1AD3E9E1F58403DA3412CF475D95B16&SearchIn=P...



Good news, that's a lot cheaper than the Main PCA Smiley Happy

Best regards

Mike G

I'm an HP Inc employee. But my response is not in behalf of HP Inc
0 Kudos
TiffVH
Author
Level 1
2 1 1 1
Message 6 of 19
Flag Post
HP Recommended

Thanks to all for your help.  Time was of the essence on this one, so we just ended up purchasing a new T120.

Tags (1)
Mikeg81
Level 10
Level 10
2,276 2,271 113 241
Message 7 of 19
Flag Post
HP Recommended

If you still have the T120, you have now a less expensive option to repair it 🙂



Best regards

Mike G

I'm an HP Inc employee. But my response is not in behalf of HP Inc
sydwest
Level 1
8 7 0 0
Message 8 of 19
Flag Post
HP Recommended

what if the screen is a green color and not so much blue, code B320 D660, HP say its the main board, what do you say about the difference in color, is it important or not



0 Kudos
rasheddul
Level 7
634 618 35 81
Message 9 of 19
Flag Post
HP Recommended
Hi,
Different colour isn't matter for this model. You just check my information if it was match with provided error. Then you may take the decision what can you do.

Thanks/ Rashed
Regards/Rashed
https://www.linkedin.com/in/rasheddul
0 Kudos
sydwest
Level 1
8 7 0 0
Message 10 of 19
Flag Post
HP Recommended

ok - then the error code on the green screen is B320D660. is this going to fix the problem - if the usb card is renewed
